Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-914-8395 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 32448, 5340-00-914-8395, 00-914-8395, 5340009148395, 009148395
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAR 1966 | 00-914-8395 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |
Drawings & Photos | NSN 5340-00-914-8395
Demand History | NSN 5340-00-914-8395
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 32448 | 2023-08-235 | 200 | UK |
| 32448 | 2022-02-55 | 5591 | US |
| 32448 | 2018-11-309 | 1 | US |
| 32448 | 2017-09-271 | 1 | BR |
| 5340-00-914-8395 | 2014-02-41 | 100 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-914-8395
Related Products | NSN 5340-00-914-8395
Technical Data | NSN 5340-00-914-8395

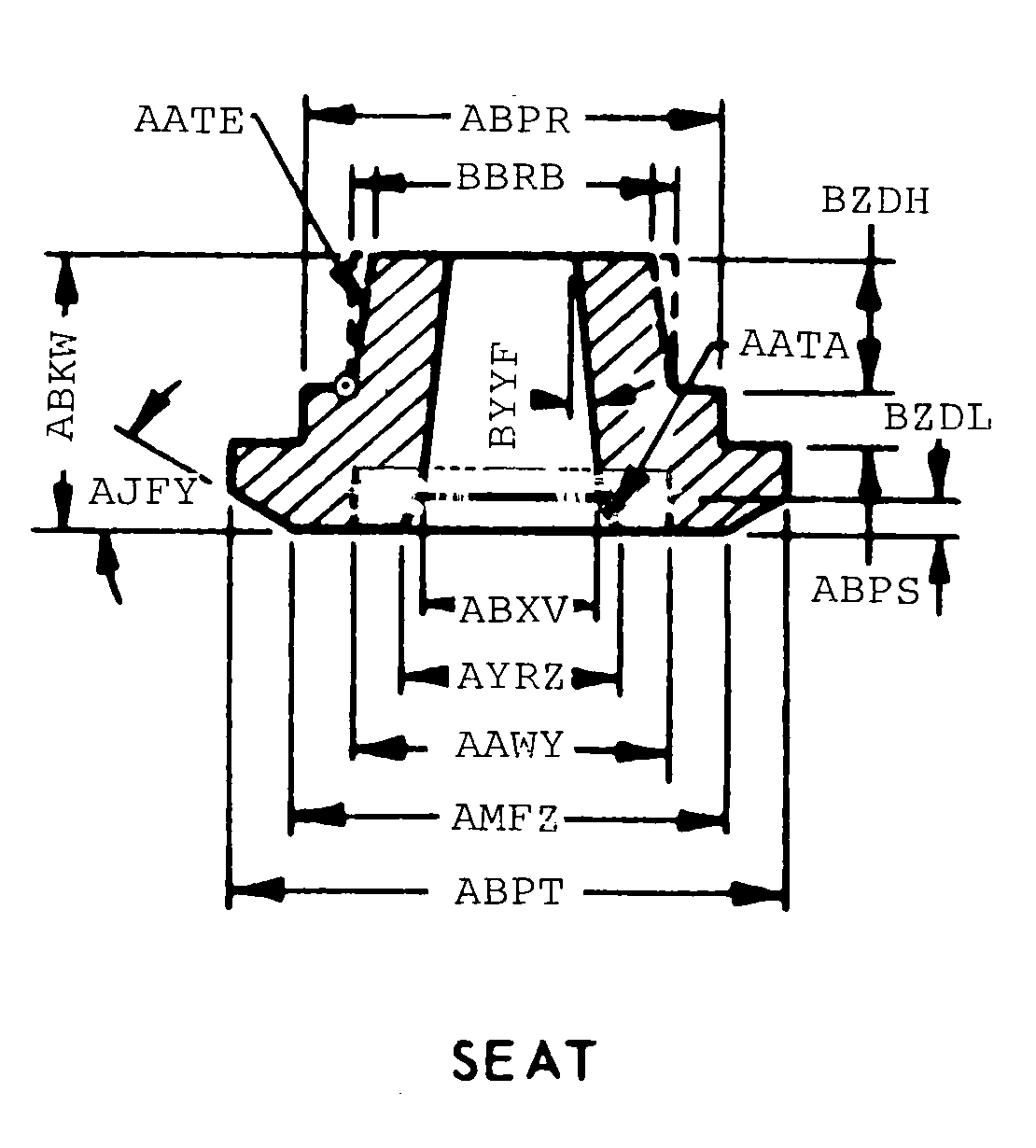

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,AISI 4140 OR SAE 4140 |
| MATERIAL HARDNESS RATING | 50.0 ROCKWELL C MINIMUM AND 54.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | N12 SEAT |
| OVERALL HEIGHT | 0.4370 INCHES NOMINAL |
| END DIAMETER | 0.8120 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST STEP | 0.1410 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.3610 INCHES MINIMUM AND 1.3710 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.1090 INCHES NOMINAL |
| SECOND STEP DIAMETER | 1.7180 INCHES NOMINAL |
| SECOND END DIAMETER | 1.2500 INCHES NOMINAL |
| BORE DIAMETER | 0.6540 INCHES NOMINAL |
| BORE TAPER IN DEG | 14.3 |
| SEAT ANGLE IN DEG | 30.0 |
| DESIGN TYPE | SOLID |
| SPECIAL FEATURES | MAGNETIC PERMEABILITY SHALL BE LESS THAN 1.2 BEFORE FABRICATION AND NOT GREATER THAN 2.0 AFTER FABRICATION AS MEASURED IN A 200 OERSTED FIELD |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | FEAT |
| MANUFACTURERS CODE | 95201 |
| DESIGN CONTROL REFERENCE | 32448 |
