Product Details | FLARE LOCK FASTENER
5340-01-119-0813 A shouldered hollow screw and threaded sleeve assembly, designed to be fastened in place by turning the screw, causing one end of the sleeve to flare over the shoulder and against the material through which it has been inserted. Also, a countersunk head hollow screw and flared sleeve-nut assembly, designed to mate with a dimpled hole in the material to which it is fastened. The hollow screws may also have internal threads for attaching screws. See also SHIELD, EXPANSION.
Part Alternates: 2103, 97102A, 5340-01-119-0813, 01-119-0813, 5340011190813, 011190813
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 SEP 1981 | 01-119-0813 | 20259 ( FASTENER, FLARE LOCK ) |
Drawings & Photos | NSN 5340-01-119-0813
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-119-0813
Technical Data | NSN 5340-01-119-0813
| Characteristic | Specifications |
|---|---|

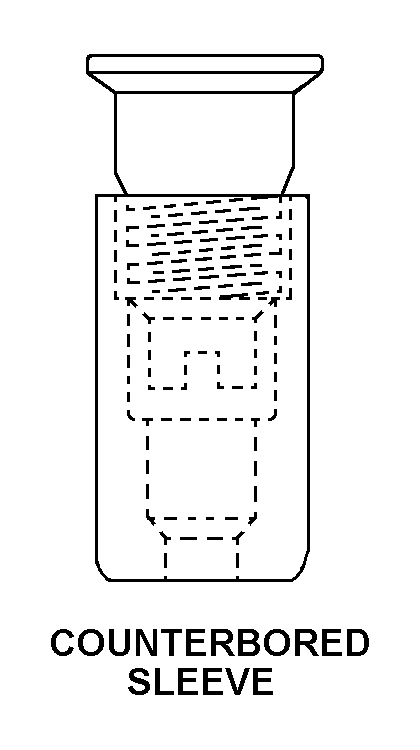

| STYLE DESIGNATOR | E1 COUNTERBORED SLEEVE |
| MOUNTING METHOD | SCREW |

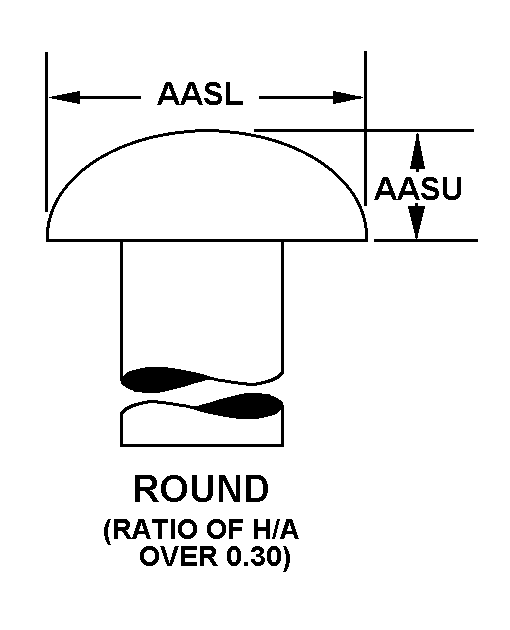

| HEAD STYLE | U4 ROUND |
| HEAD DIAMETER | 0.275 INCHES NOMINAL |
| HEAD HEIGHT | 0.094 INCHES NOMINAL |

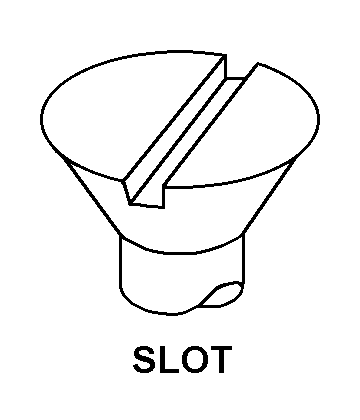

| INTERNAL DRIVE STYLE | W1 SLOT |
| HOLE SIZE FOR WHICH DESIGNED | 0.312 INCHES NOMINAL |
| MATERIAL THICKNESS RANGE FOR WHICH DESIGNED | 1.125 TO 1.750 INCHES |
| SCREW MINIMUM LENGTH FOR WHICH DESIGNED | 2.688 INCHES |
| FEATURES PROVIDED | CLOSED SLEEVE AND OPEN SLEEVE |
| MANUFACTURERS CODE | 39428 |
| DESIGN CONTROL REFERENCE | 97102A |
