NSN 5340-01-115-3904 70700-20448-115, 01-115-3904, 7070020448115
Product Details | ROD END CLEVIS
5340-01-115-3904 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 70700-20448-115, 5340-01-115-3904, 01-115-3904, 5340011153904, 7070020448115, 011153904
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUL 1981 | 01-115-3904 | 03796 ( CLEVIS, ROD END ) |

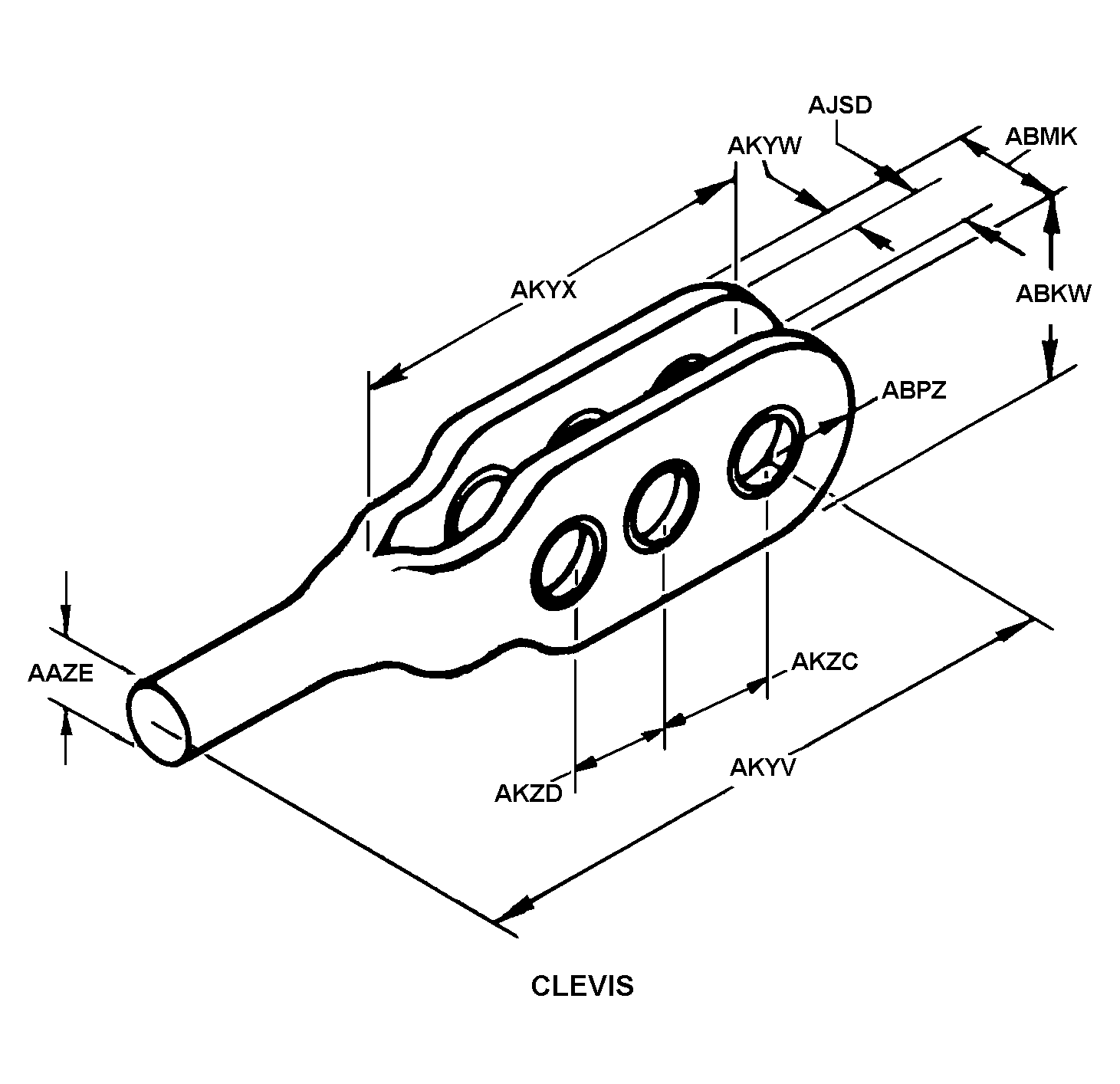

Drawings & Photos | NSN 5340-01-115-3904
Cross Reference | NSN 5340-01-115-3904
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70700-20448-115 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-115-3904
Related Products | NSN 5340-01-115-3904
Technical Data | NSN 5340-01-115-3904
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 37 CLEVIS |
| SHANK DIAMETER | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 0.788 INCHES NOMINAL |
| FORK SPAN WIDTH | 0.412 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 3.440 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.188 INCHES NOMINAL |
| FORK DEPTH | 2.250 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 0.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SECOND AND THIRD HOLES | 0.690 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.316 INCHES NOMINAL |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 0.620 INCHES NOMINAL |
| HOLE DIAMETER | 0.281 INCHES NOMINAL |
| SPECIAL FEATURES | ONE PIVOT HOLE 0.125 IN. DIA |
| MANUFACTURERS CODE | 78286 |
| DESIGN CONTROL REFERENCE | 70700-20448-115 |
