NSN 5340-01-114-0132 H1004D1NR, H1004DINR, 9604D1NR
Product Details | BUTT HINGE

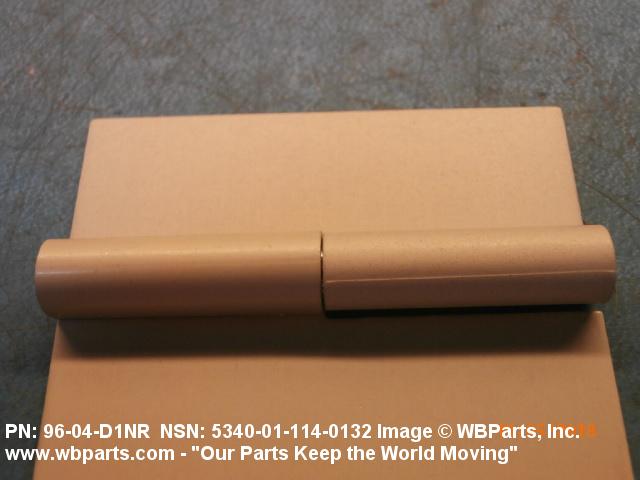

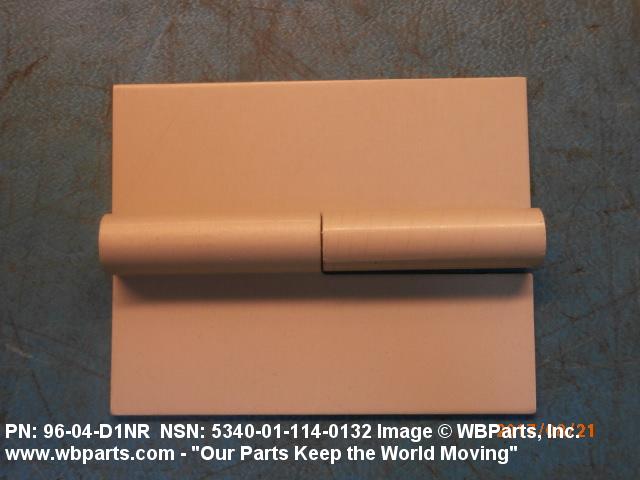

5340-01-114-0132 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: H1004D1NR, H1004DINR, 9604D1NR, 96-04-D1NR, 5340-01-114-0132, 01-114-0132, 5340011140132, 011140132
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JUN 1981 | 01-114-0132 | 22894 ( HINGE, BUTT ) |

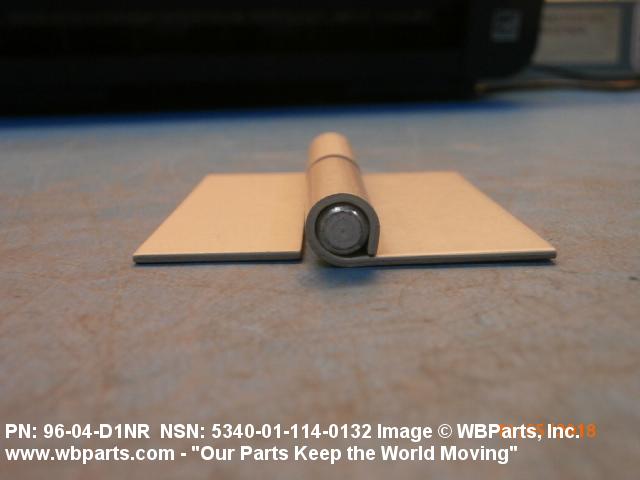

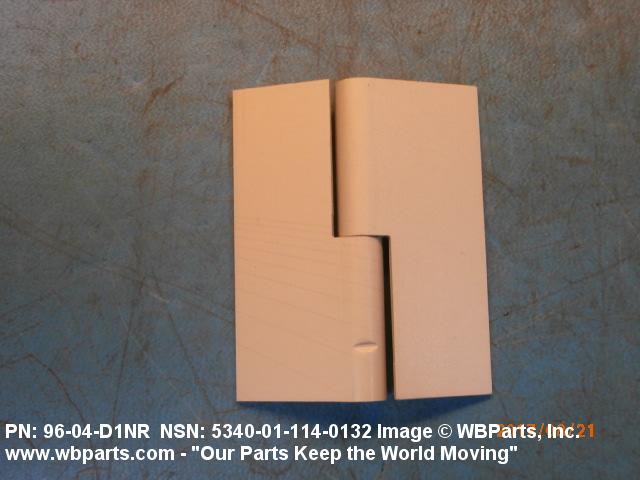

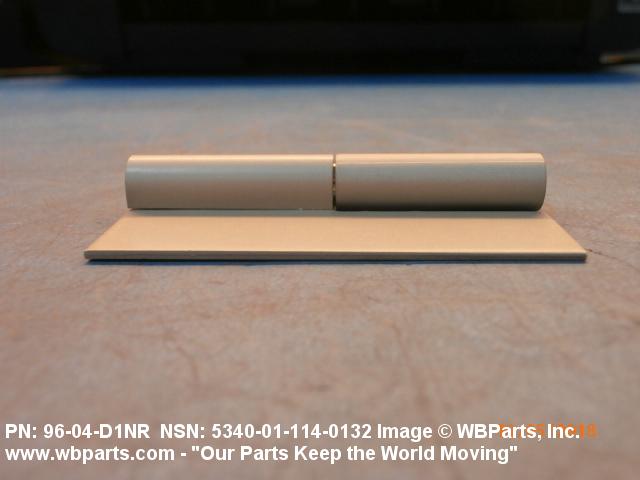

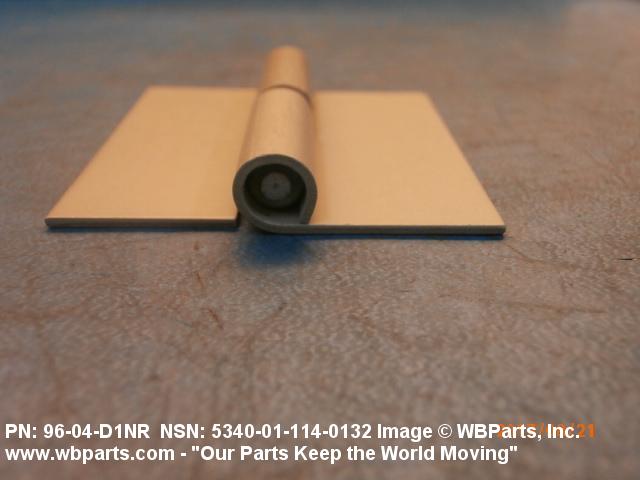

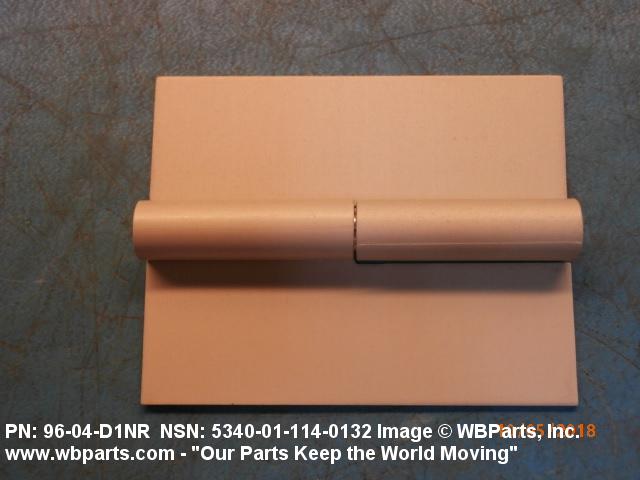

Drawings & Photos | NSN 5340-01-114-0132
Demand History | NSN 5340-01-114-0132
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-114-0132 | 2024-09-254 | 2 | United States |
| 96-04-D1NR | 2023-12-355 | 929 | DIBBS |
| 5340-01-114-0132 | 2023-05-122 | 6 | United States |
| 96-04-D1NR | 2022-11-321 | 1122 | DIBBS |
| 96-04-D1NR | 2022-11-306 | 1122 | DIBBS |
| 96-04-D1NR | 2022-07-199 | 714 | DIBBS |
| 96-04-D1NR | 2022-07-188 | 714 | DIBBS |
| 96-04-D1NR | 2022-03-69 | 387 | DIBBS |
| 96-04-D1NR | 2021-10-287 | 375 | DIBBS |
| 96-04-D1NR | 2021-08-223 | 1018 | DIBBS |
| 96-04-D1NR | 2020-10-302 | 1025 | DIBBS |
| 96-04-D1NR | 2020-04-99 | 549 | DIBBS |
| 96-04-D1NR | 2020-03-62 | 721 | DIBBS |
| 96-04-D1NR | 2020-02-54 | 721 | DIBBS |
| 96-04-D1NR | 2019-06-170 | 721 | DIBBS |
| 96-04-D1NR | 2019-05-140 | 588 | DIBBS |
| 5340-01-114-0132 | 2018-12-359 | 588 | DIBBS |
| 5340-01-114-0132 | 2018-12-347 | 571 | DIBBS |
| 5340-01-114-0132 | 2018-08-227 | 10 | United States |
| 5340-01-114-0132 | 2018-05-143 | 10 | US |
| 5340-01-114-0132 | 2018-03-87 | 562 | DIBBS |
| 5340-01-114-0132 | 2017-05-139 | 8 | MANUAL |
| 96-04-D1NR | 2017-05-139 | 8 | Taiwan |
| 5340-01-114-0132 | 2015-04-120 | 648 | DIBBS |
| 5340-01-114-0132 | 2014-10-281 | 566 | DIBBS |
| H1004D1NR | 2014-01-21 | 30 | United States |
| 5340-01-114-0132 | 2013-10-275 | 453 | DIBBS |
| 5340-01-114-0132 | 2013-03-64 | 430 | DIBBS |
| 5340-01-114-0132 | 2012-09-257 | 2 | United States |
| 5340-01-114-0132 | 2012-08-244 | 508 | DIBBS |
| 5340-01-114-0132 | 2012-07-206 | 500 | DIBBS |
| 5340-01-114-0132 | 2012-06-171 | 5 | MANUAL |
| H1004D1NR | 2012-06-171 | 5 | Malaysia |
| 5340-01-114-0132 | 2011-05-137 | 621 | DIBBS |
| 5340-01-114-0132 | 2008-04-102 | 2601 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-114-0132
Related Products | NSN 5340-01-114-0132
Technical Data | NSN 5340-01-114-0132
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY BODY STEEL PIN |
| SURFACE TREATMENT AND LOCATION | ANODIZED BODY CADMIUM PIN |
| STYLE DESIGNATOR | 18 BUTT |

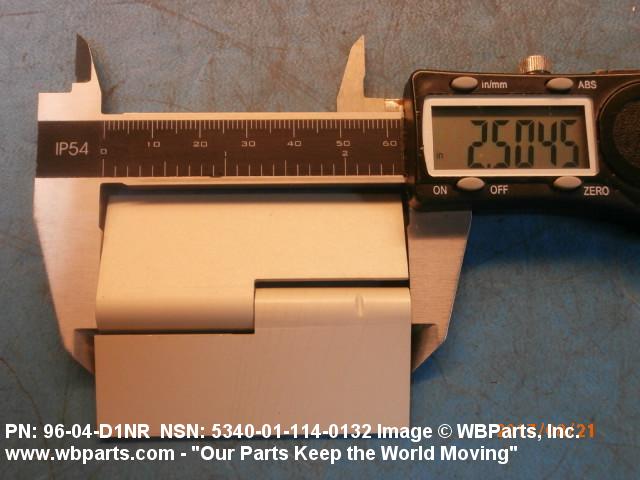

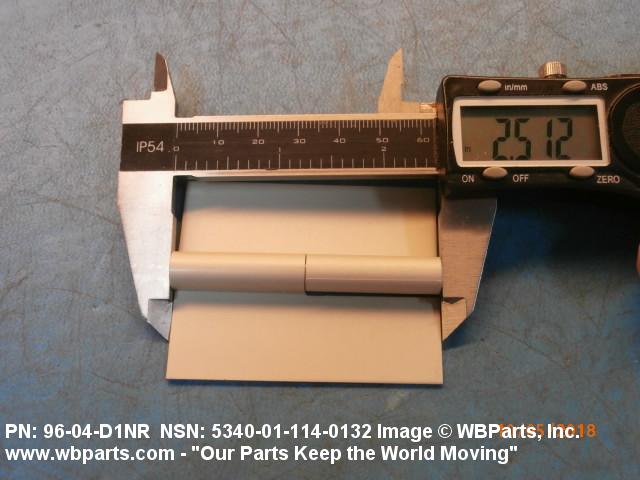

| OVERALL LENGTH | 2.500 INCHES NOMINAL |

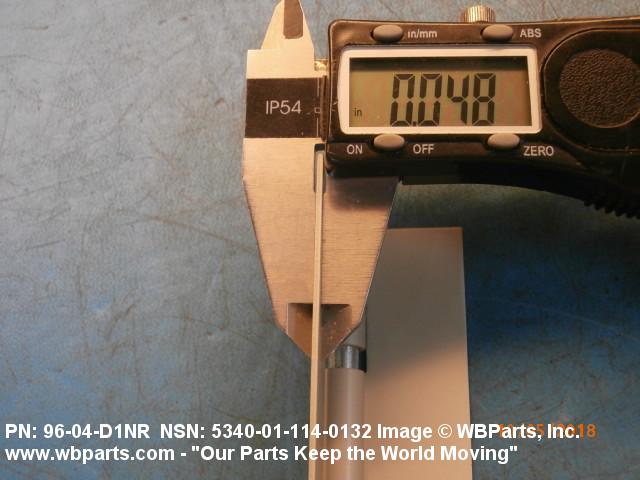

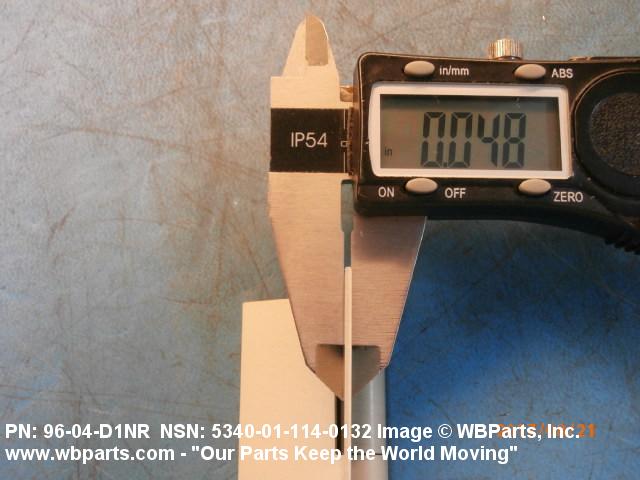

| MATERIAL THICKNESS | 0.048 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |

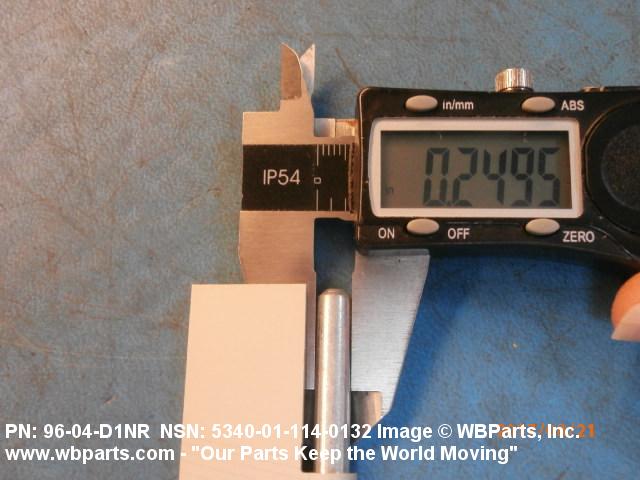

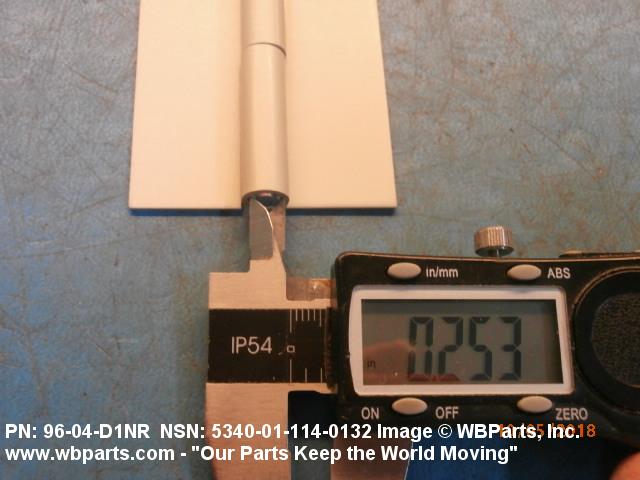

| PIN DIAMETER | 0.250 INCHES NOMINAL |

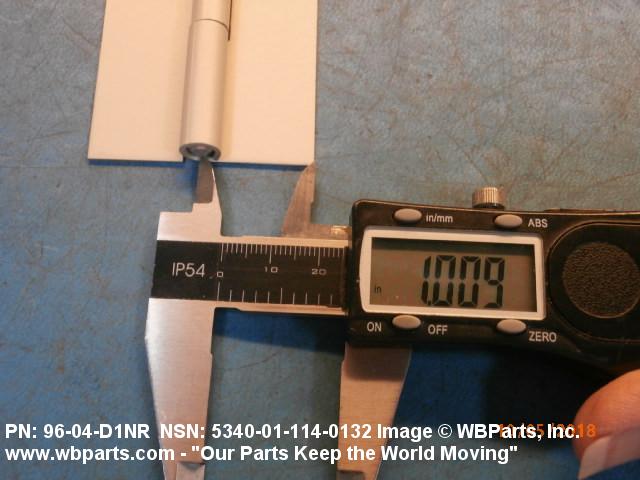

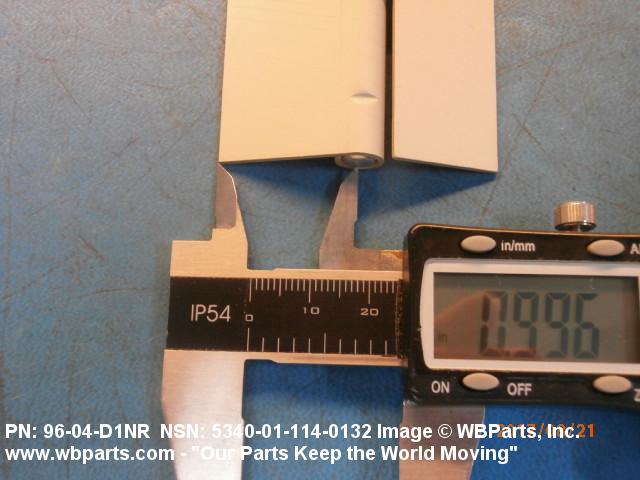

| PIN CENTER TO BODY EDGE DISTANCE | 1.000 INCHES NOMINAL |
