Product Details | HELICAL COMPRESSION SPRING SEAT
5340-01-102-4732 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 33423122, 341871, 3725373, 99570, 5340-01-102-4732, 01-102-4732, 5340011024732, 011024732
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 OCT 1980 | 01-102-4732 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

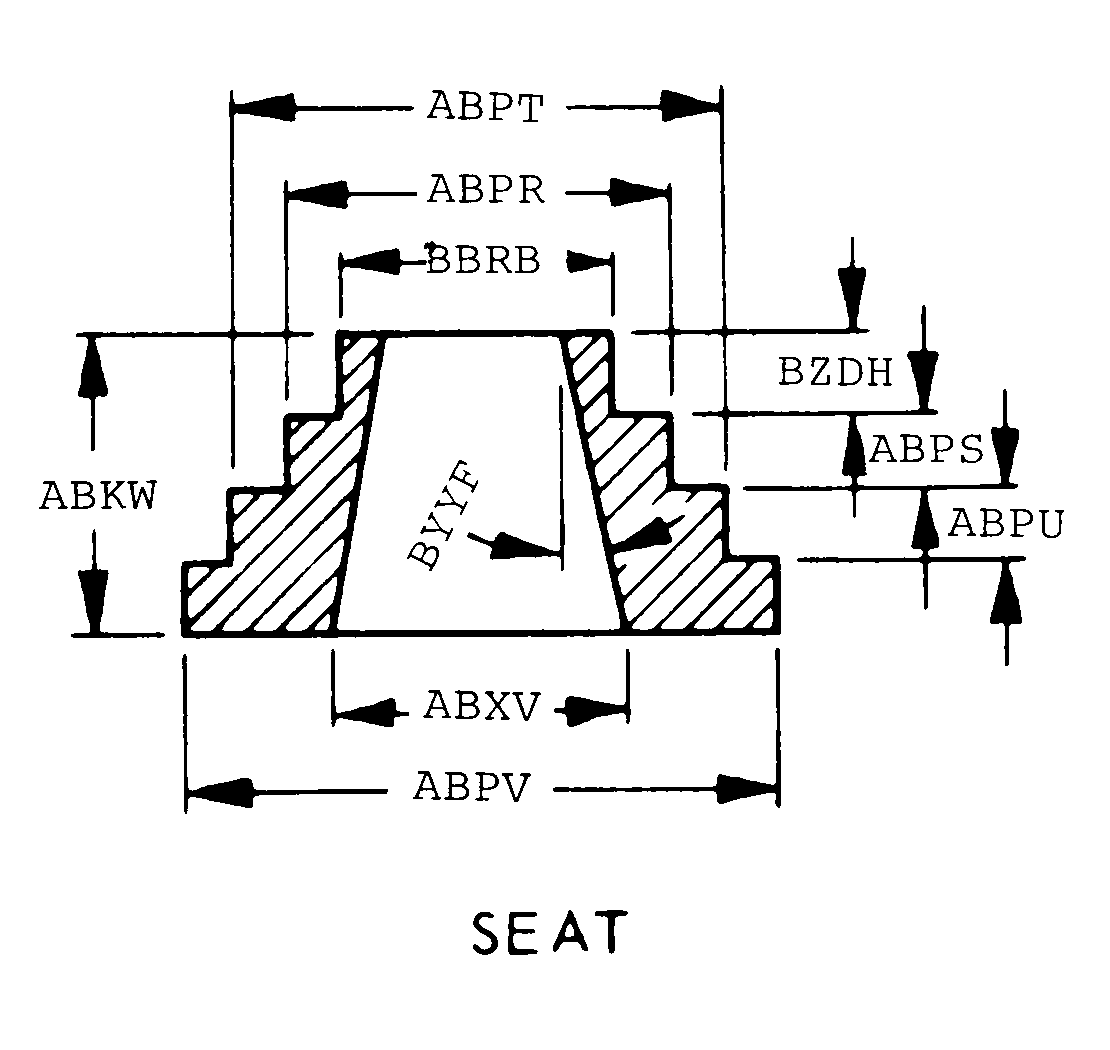

Drawings & Photos | NSN 5340-01-102-4732
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-102-4732
Related Products | NSN 5340-01-102-4732
Technical Data | NSN 5340-01-102-4732
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL HARDNESS RATING | NOT RATED |
| STYLE DESIGNATOR | N4 SEAT |
| OVERALL HEIGHT | 0.4420 INCHES NOMINAL |
| END DIAMETER | 0.7200 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST STEP | 0.0930 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.7800 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.1250 INCHES NOMINAL |
| SECOND STEP DIAMETER | 1.1160 INCHES NOMINAL |
| SECOND STEP LENGTH | 0.1250 INCHES NOMINAL |
| THIRD STEP DIAMETER | 1.3720 INCHES NOMINAL |
| BORE DIAMETER | 0.5730 INCHES NOMINAL |
| BORE TAPER IN DEG | ANY ACCEPTABLE |
| DESIGN TYPE | SOLID |
| SPECIAL FEATURES | BASE HAS 30.0 DEG CHAMPFER 0.062 IN. LONG |
