NSN 5340-01-100-2363 2740841, 274084-1, 01-100-2363
Product Details | ROD END CLEVIS
5340-01-100-2363 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 2740841, 274084-1, 5340-01-100-2363, 01-100-2363, 5340011002363, 011002363
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 AUG 1980 | 01-100-2363 | 03796 ( CLEVIS, ROD END ) |

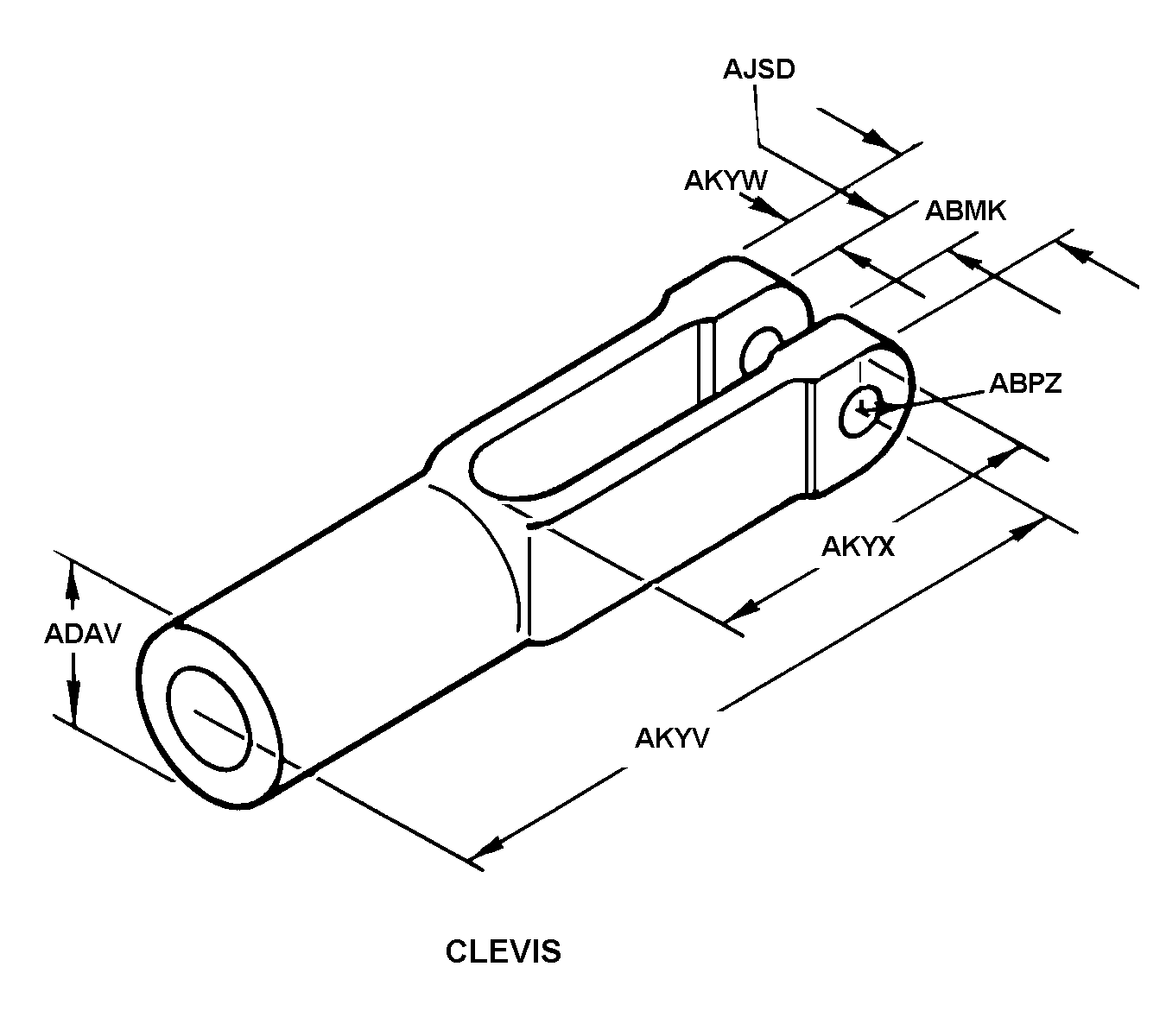

Drawings & Photos | NSN 5340-01-100-2363
Demand History | NSN 5340-01-100-2363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-100-2363 | 2020-06-169 | 1 | DIBBS-RFPs |
| 5340-01-100-2363 | 2016-11-315 | 45 | DIBBS |
| 5340-01-100-2363 | 2016-11-307 | 45 | DIBBS |
| 5340-01-100-2363 | 2015-11-314 | 37 | DIBBS |
| 5340-01-100-2363 | 2014-06-175 | 27 | DIBBS |
| 5340-01-100-2363 | 2014-03-85 | 422 | DIBBS |
| 5340-01-100-2363 | 2014-03-78 | 422 | DIBBS |
| 5340-01-100-2363 | 2013-03-79 | 42 | DIBBS |
| 5340-01-100-2363 | 2012-04-111 | 100 | DIBBS |
| 5340-01-100-2363 | 2012-03-74 | 45 | DIBBS |
| 5340-01-100-2363 | 2010-08-243 | 102 | DIBBS |
