NSN 5340-01-099-9279 127689, 01-099-9279, 010999279
Product Details | SPACING THREADED STANDOFF
5340-01-099-9279 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 127689, 5340-01-099-9279, 01-099-9279, 5340010999279, 010999279
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 AUG 1980 | 01-099-9279 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-01-099-9279
Cross Reference | NSN 5340-01-099-9279
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 127689 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-099-9279
Technical Data | NSN 5340-01-099-9279
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | ROUND |
| DIAMETER | 0.250 INCHES NOMINAL |

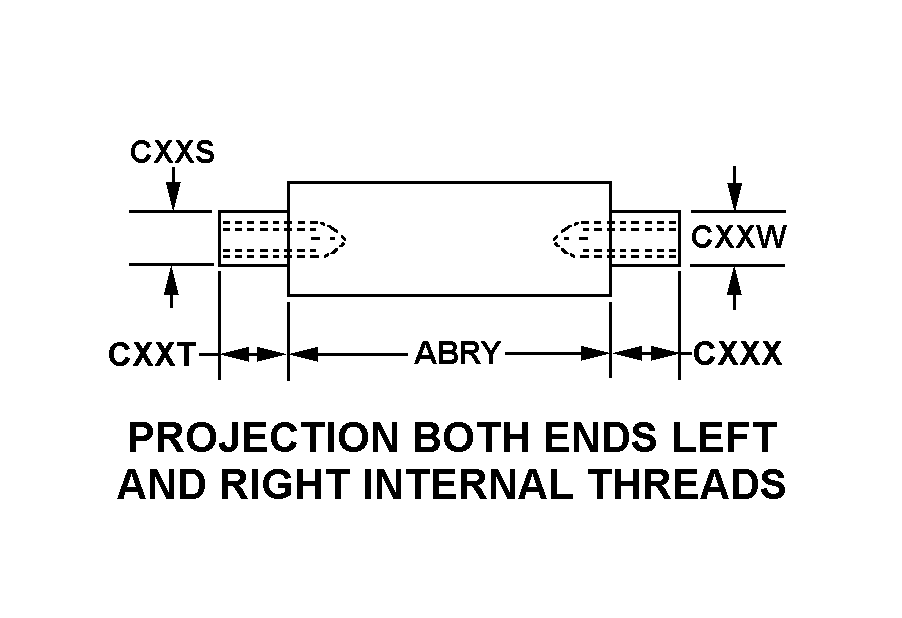

| STYLE DESIGNATOR | 10 PROJECTION BOTH ENDS LEFT AND RIGHT INTERNAL THREADS |
| LENGTH | 0.913 INCHES MINIMUM AND 0.917 INCHES MAXIMUM |
| DISTANCE FROM END TO HOLE CENTER | 0.560 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION LENGTH | 0.030 INCHES NOMINAL |
| (NON-CORE DATA) SECOND PROJECTION LENGTH | 0.030 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION DIAMETER | 0.1246 INCHES MINIMUM AND 0.1249 INCHES MAXIMUM |
| (NON-CORE DATA) SECOND PROJECTION DIAMETER | 0.1246 INCHES MINIMUM AND 0.1249 INCHES MAXIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD LENGTH | 0.190 INCHES NOMINAL |
| (NON-CORE DATA) SECOND INTERNAL THREAD LENGTH | 0.190 INCHES NOMINAL |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | 0.086-56-UNC-2B |
| (NON-CORE DATA) SECOND INTERNAL THREAD CHARACTERISTICS | 0.086-56-UNC-2B |
| (NON-CORE DATA) MATERIAL | STEEL, QQ-S-764, TYPE 303-CANCELED |
| (NON-CORE DATA) SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
Restrictions/Controls & Freight Information | NSN 5340-01-099-9279
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
