NSN 5340-01-099-9059 SMC449072, SM-C-449072, 01-099-9059
Product Details | DOUBLE ANGLE BRACKET
5340-01-099-9059 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: SMC449072, SM-C-449072, 5340-01-099-9059, 01-099-9059, 5340010999059, 010999059
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 AUG 1980 | 01-099-9059 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-01-099-9059
Cross Reference | NSN 5340-01-099-9059
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-C-449072 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-099-9059
Technical Data | NSN 5340-01-099-9059
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

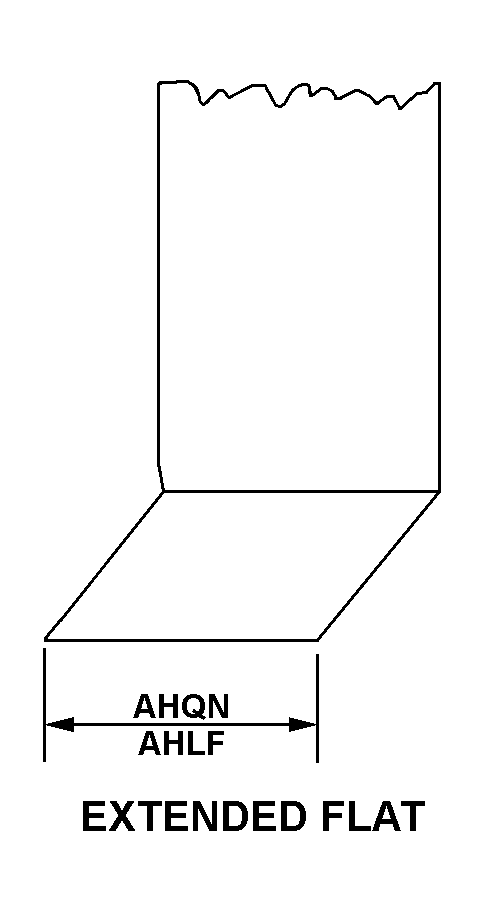

| FIRST LEG STYLE | 112 EXTENDED FLAT |
| FIRST LEG WIDTH | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| SECOND LEG STYLE | 112 EXTENDED FLAT |
| SECOND LEG WIDTH | 0.290 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-01-099-9059
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
