NSN 5340-01-099-4880 9423221, 94232-21, 01-099-4880
Product Details | LOCKING STAY
5340-01-099-4880 A device designed to support either a slotted (sliding action) or a hinged device to support in the unfolded or extended position. Commonly used to brace and/or lock into position such items as card table legs, chest lids, folding counters, desk tops and trunk lids.
Part Alternates: 9423221, 94232-21, 5340-01-099-4880, 01-099-4880, 5340010994880, 010994880
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 AUG 1980 | 01-099-4880 | 67545 ( STAY, LOCKING ) |

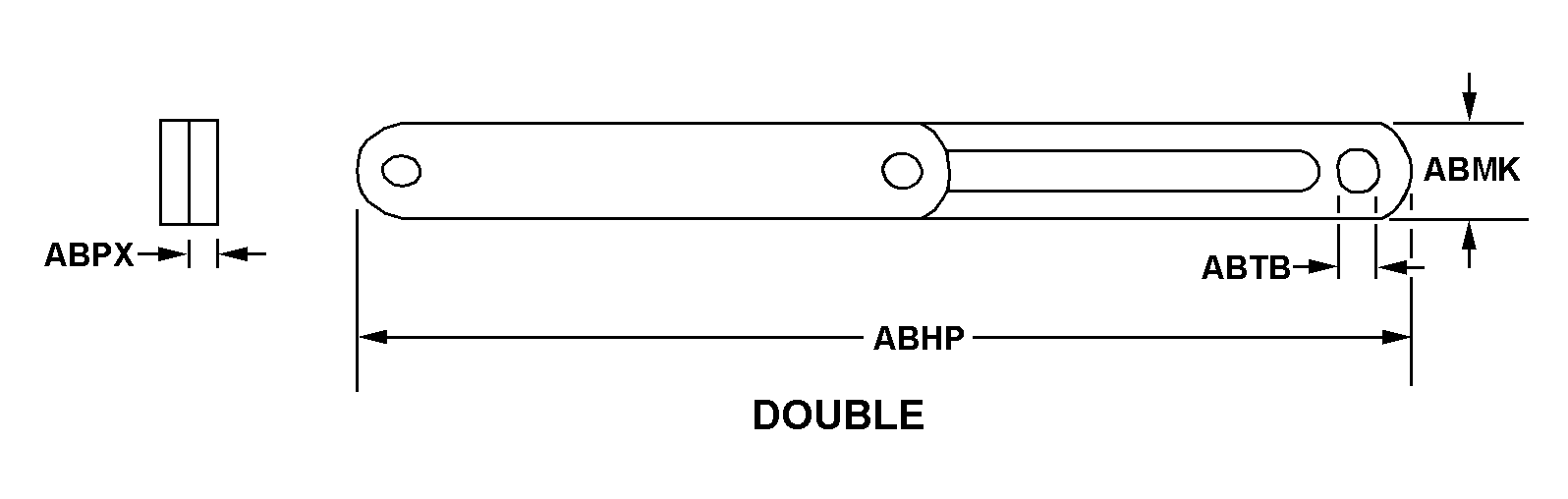

Drawings & Photos | NSN 5340-01-099-4880
Cross Reference | NSN 5340-01-099-4880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 94232-21 | 77646 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA AEROSPACE SYSTEMS SECTOR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-099-4880
Related Products | NSN 5340-01-099-4880
Technical Data | NSN 5340-01-099-4880
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| STYLE DESIGNATOR | 76 DOUBLE |
| III OVERALL LENGTH | 4.840 INCHES NOMINAL |
| III MATERIAL THICKNESS | 0.090 INCHES NOMINAL |
| III MOUNTING HOLE DIAMETER | 0.187 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| OPERATIONAL DIRECTION | RIGHT-HAND |
| OFFSET QUANTITY | 2 |
| SPECIAL FEATURES | RAD1US 5.270 IN.,END 0.840 IN. |
| MANUFACTURERS CODE | 77646 |
| DESIGN CONTROL REFERENCE | 94232-21 |
Restrictions/Controls & Freight Information | NSN 5340-01-099-4880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-099-4880
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
