NSN 5340-01-095-7845 12S17967, 12S1796-7, 01-095-7845
Product Details | BUTT HINGE LEAF
5340-01-095-7845 An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin.
Part Alternates: 12S17967, 12S1796-7, 5340-01-095-7845, 01-095-7845, 5340010957845, 010957845
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUN 1980 | 01-095-7845 | 07655 ( LEAF, BUTT HINGE ) |

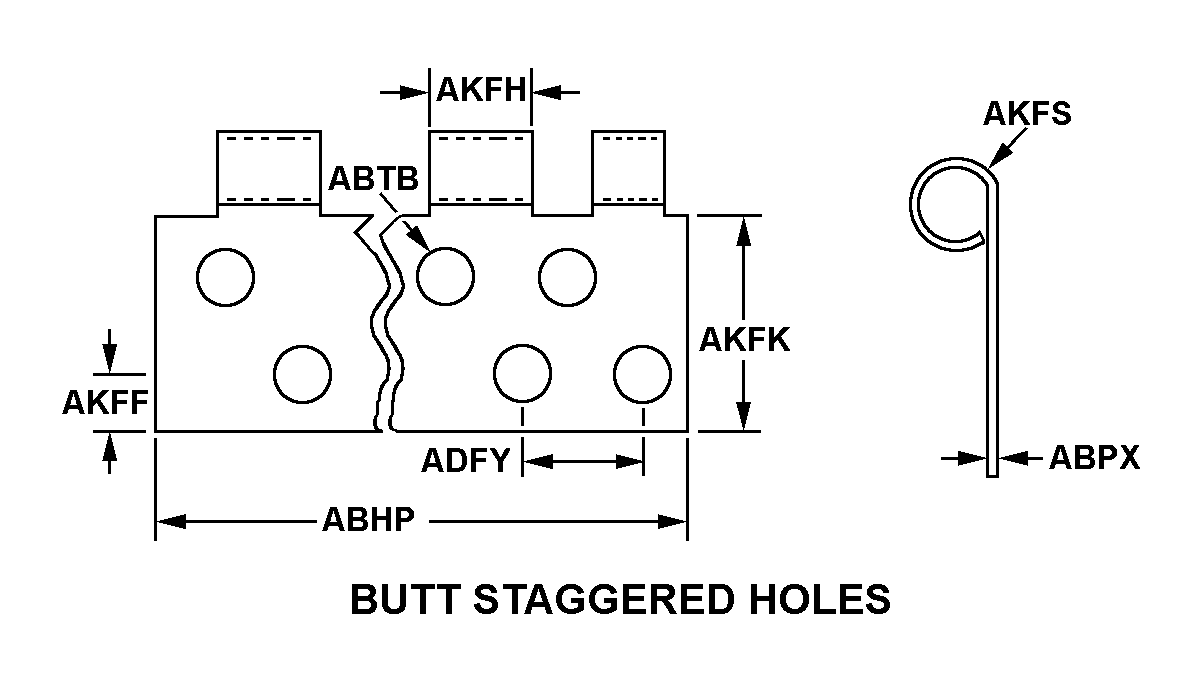

Drawings & Photos | NSN 5340-01-095-7845
Cross Reference | NSN 5340-01-095-7845
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12S1796-7 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-095-7845
Related Products | NSN 5340-01-095-7845
Technical Data | NSN 5340-01-095-7845
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | AMS 5629 OVERALL |
| STYLE DESIGNATOR | 53 BUTT STAGGERED HOLES |
| OVERALL LENGTH | 16.040 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.130 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.250 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | ANY ACCEPTABLE |
| LEAF OUTER EDGE TO HOLE CENTER VERTICAL DISTANCE | 0.380 INCHES NOMINAL |
| KNUCKLE LENGTH | 0.755 INCHES MINIMUM AND 0.759 INCHES MAXIMUM |
| PIN CENTER TO BODY EDGE DISTANCE | 1.340 INCHES NOMINAL |
| KNUCKLE INSIDE DIAMETER | 0.182 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| HINGE MOUNTING TYPE | FULL MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| HINGE PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 10 |
| MOUNTING HOLE QUANTITY | 15 |
| PERFORMANCE TYPE | NOT RATED |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 12S1796-7 |
Restrictions/Controls & Freight Information | NSN 5340-01-095-7845
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
