NSN 5340-01-079-8300 AR83-9-72-1/4-20X.62, AR839721420X62, 16520991
Product Details | DOOR HANDLE
5340-01-079-8300 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.20316800049Miscellaneous Aircraft Accessories and Components20400030Marine Hardware and Hull Items53400020Hardware, Commercial
Part Alternates: AR83-9-72-1/4-20X.62, AR839721420X62, 16520991, 1652099-1, 5340-01-079-8300, 01-079-8300, 5340010798300, 010798300
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1979 | 01-079-8300 | 18073 ( HANDLE, DOOR ) |

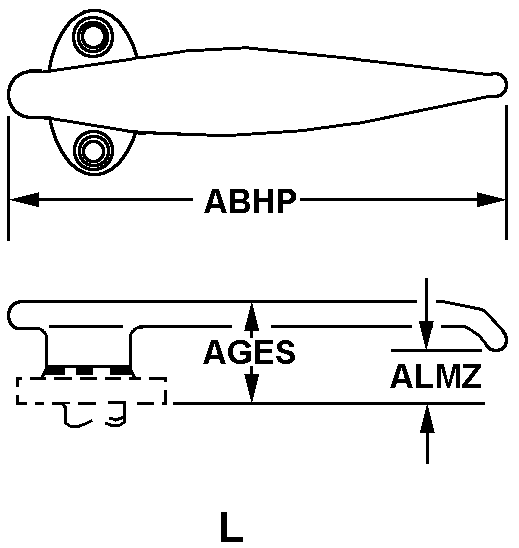

Drawings & Photos | NSN 5340-01-079-8300
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-079-8300
Technical Data | NSN 5340-01-079-8300
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | ANODIZE ESCUTCHEON PLATE ANODIZE HANDLE CADMIUM AND CHROMATE PIN CADMIUM AND CHROMATE RING CADMIUM SPINDLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE ESCUTCHEON PLATE MIL-A-8625,TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE HANDLE QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE PIN QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE RING QQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE |
| STYLE DESIGNATOR | C36 L |
| OVERALL LENGTH | 4.780 INCHES NOMINAL |
| HANDLE HEIGHT | 1.940 INCHES NOMINAL |
| HANDLE CLEARANCE | 0.470 INCHES NOMINAL |
| MOUNTING FACILITY QUANTITY | 2 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.300 INCHES NOMINAL |
| FEATURES PROVIDED | ESCUTCHEON PLATE FIXED |
| TEST DATA DOCUMENT | 81343-AMS2301 STANDARD |
Restrictions/Controls & Freight Information | NSN 5340-01-079-8300
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095142 | HARDWARE HANDLES,IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-079-8300
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
