NSN 5340-01-079-8302 CN1238, CN-1238, 01-079-8302
Product Details | HANDWHEEL
5340-01-079-8302 An item having a major diameter of 3 or more inches (76.2mm) other than items having spoked or sumulated spoked construction, which may be under 3 inches (76.2mm) designed to be gripped by the hand to transmit rotary motion to other devices through a center axis, fabricated in the form of a solid body with simulated spokes or a recessed surface between the rim and the hub, or it may be built up in the form of a frame having a central hub connected to the rim by the spokes. It may have reference markings in the form of dots, arrows, hairline, etc., to indicate the relative position and/or direction of rotation of the item(s) with which it is used. It may also include an integral ratchet device. For similar items having a maximum diameter of less than 3 inches (76.2mm), see KNOB. For items calibrated in units or series of divisions denoting relative positioning of associated devices, see DIAL (as modified). Excludes STEERING WHEEL.
Part Alternates: CN1238, CN-1238, 5340-01-079-8302, 01-079-8302, 5340010798302, 010798302
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 JUL 1979 | 01-079-8302 | 13379 ( HANDWHEEL ) |

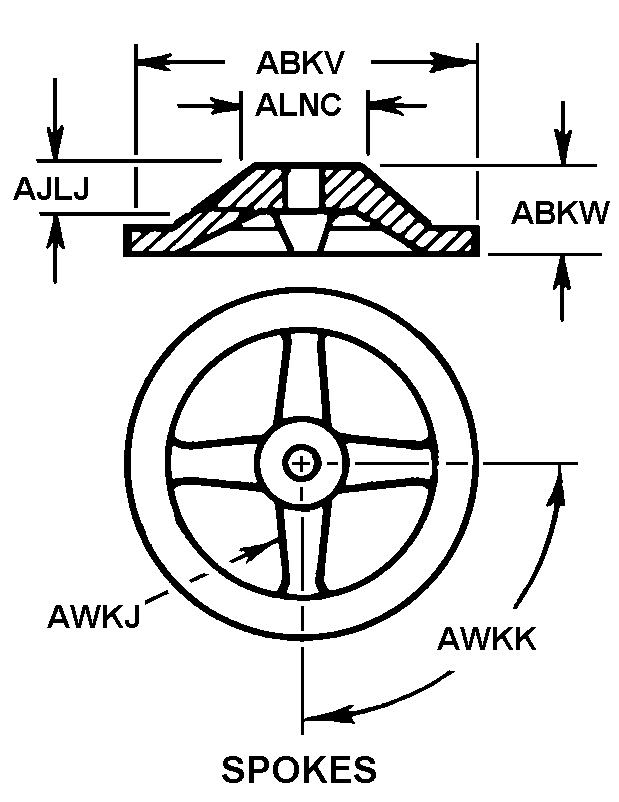

Drawings & Photos | NSN 5340-01-079-8302
Cross Reference | NSN 5340-01-079-8302
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CN-1238 | 98518 | WALWORTH-ALOYCO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-079-8302
Technical Data | NSN 5340-01-079-8302
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| HANDWHEEL STYLE | 37 SPOKES |
| OUTSIDE DIAMETER | 8.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.688 INCHES NOMINAL |
| HUB LENGTH | 0.500 INCHES NOMINAL |
| HUB OUTSIDE DIAMETER | 1.875 INCHES NOMINAL |
| SPOKE ANGLE IN DEG | 90.0 |
| SPOKE QUANTITY | 4 |
| DRIVE FACILITY STYLE | 130 SQUARE |
| DRIVE WIDTH | 0.812 INCHES NOMINAL |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| HANDLE COUNTERBALANCING WEIGHT | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
| REFERENCE MARKING | OPEN/ARROW/CCW |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZY |
| MANUFACTURERS CODE | 98518 |
| DESIGN CONTROL REFERENCE | CN-1238 |
