NSN 5340-01-068-9065 H6095K1839, H6095K1839S3005A, H6095K1839S30-05A
Product Details | BUTT HINGE
5340-01-068-9065 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: H6095K1839, H6095K1839S3005A, H6095K1839S30-05A, 5340-01-068-9065, 01-068-9065, 5340010689065, 010689065
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1978 | 01-068-9065 | 22894 ( HINGE, BUTT ) |

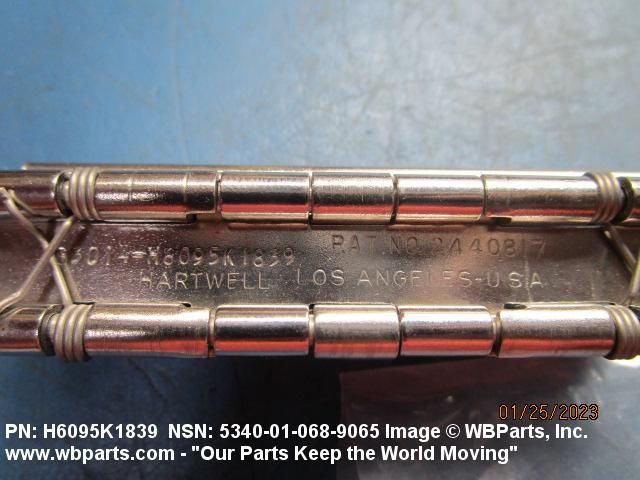

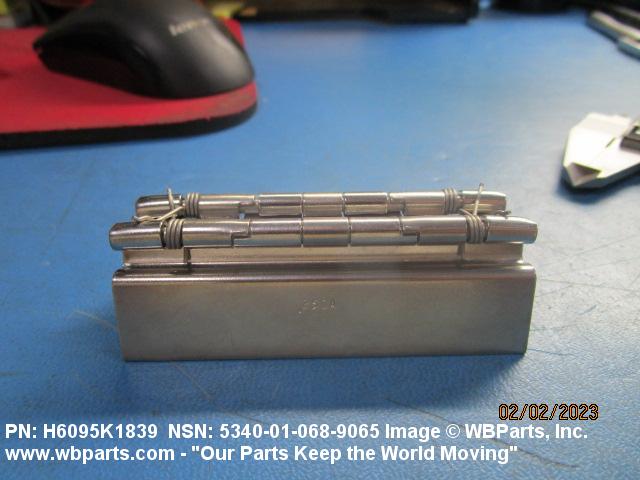

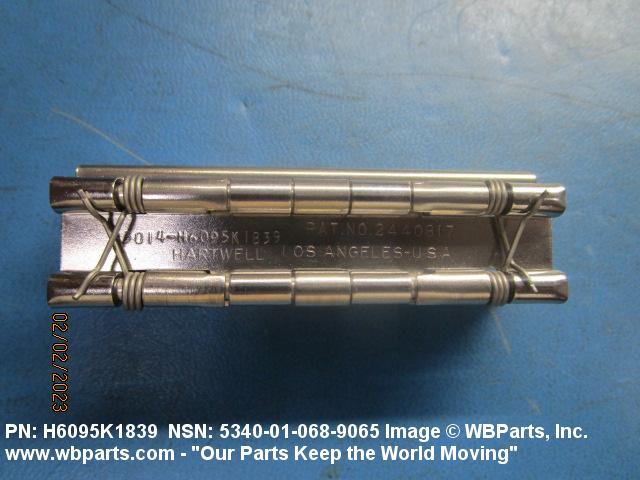

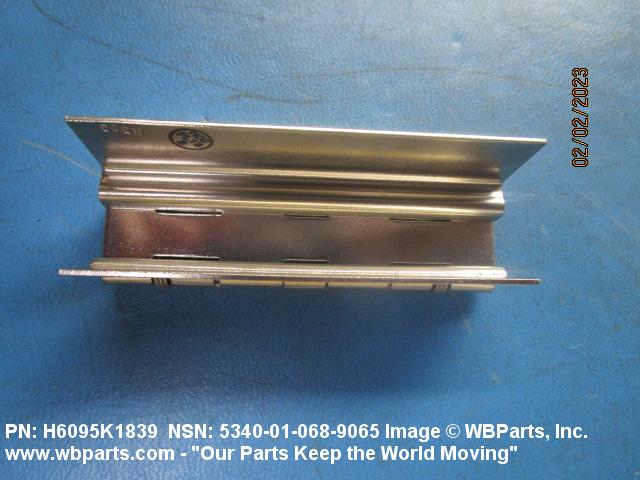

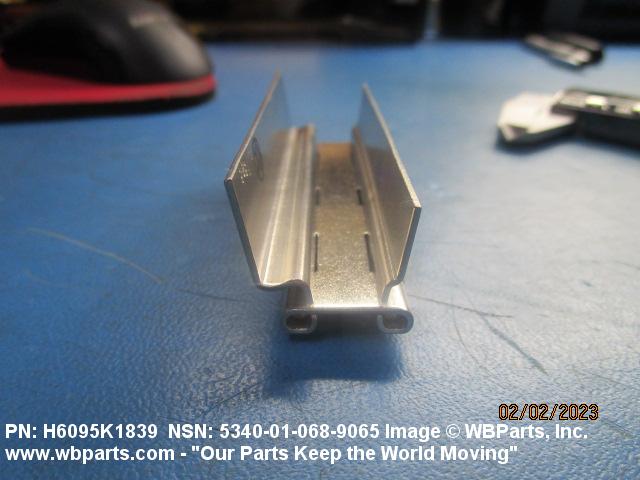

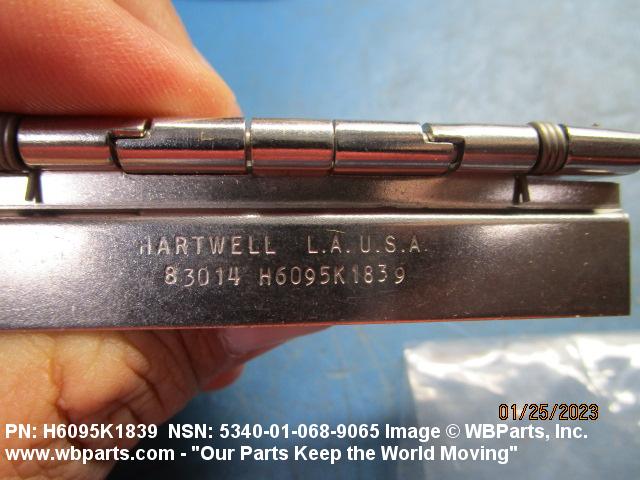

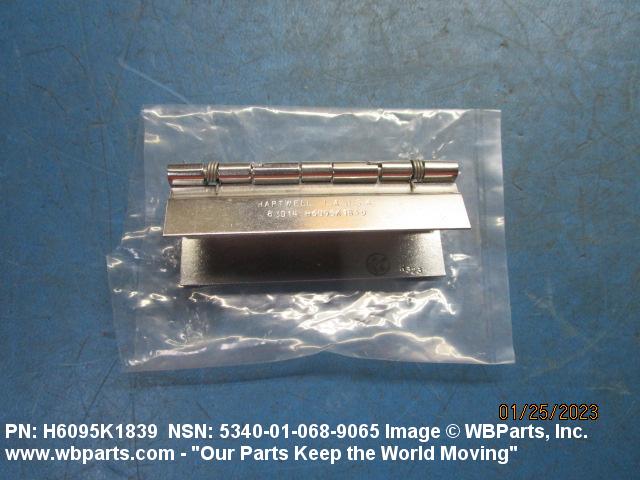

Drawings & Photos | NSN 5340-01-068-9065
Demand History | NSN 5340-01-068-9065
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-068-9065 | 2023-01-17 | 5 | United States |
| H6095K1839 | 2023-01-17 | 17 | DIBBS |
| H6095K1839 | 2023-01-05 | 17 | DIBBS |
| H6095K1839 | 2022-12-346 | 28 | DIBBS |
| H6095K1839 | 2022-06-180 | 28 | DIBBS |
| H6095K1839 | 2021-11-308 | 28 | DIBBS |
| 5340-01-068-9065 | 2009-12-356 | 23 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-068-9065
Related Products | NSN 5340-01-068-9065
Technical Data | NSN 5340-01-068-9065
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING BODY |

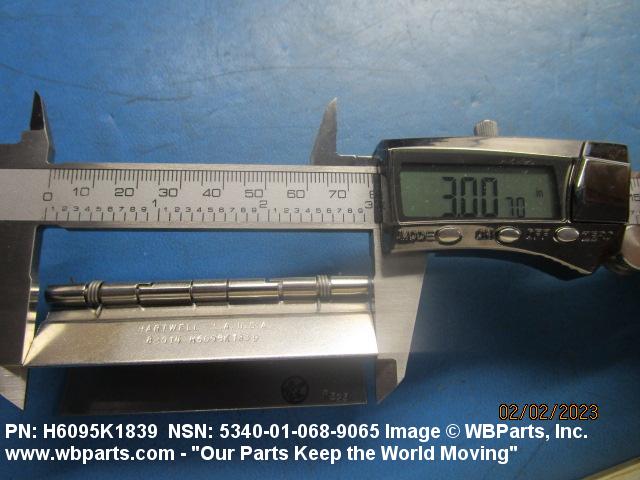

| BODY WIDTH | 3.000 INCHES NOMINAL |
| JAMB LEAF OFFSET DISTANCE | 0.250 INCHES NOMINAL |
| DOOR LEAF OFFSET DISTANCE | 0.051 INCHES NOMINAL |
| HINGE MOUNTING TYPE | FULL MORTISE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| KNUCKLE TYPE | ANY ACCEPTABLE |
| PERFORMANCE TYPE | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5340-01-068-9065
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-068-9065
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
5 EA : Each |
