Product Details | ROD END CLEVIS

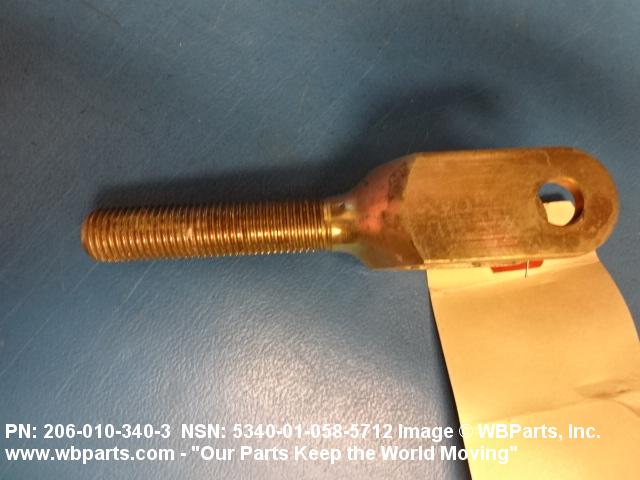

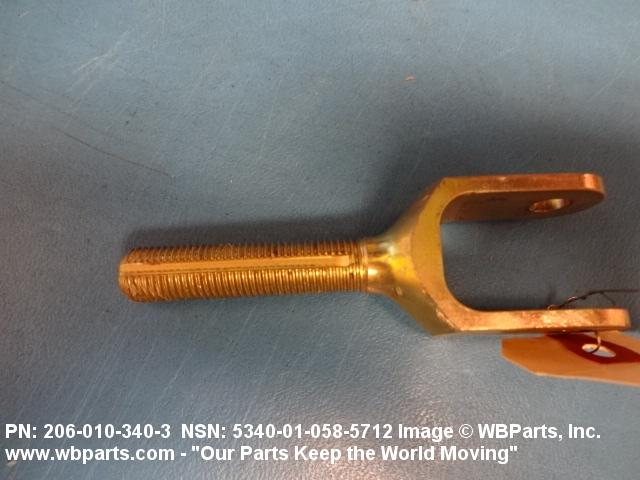

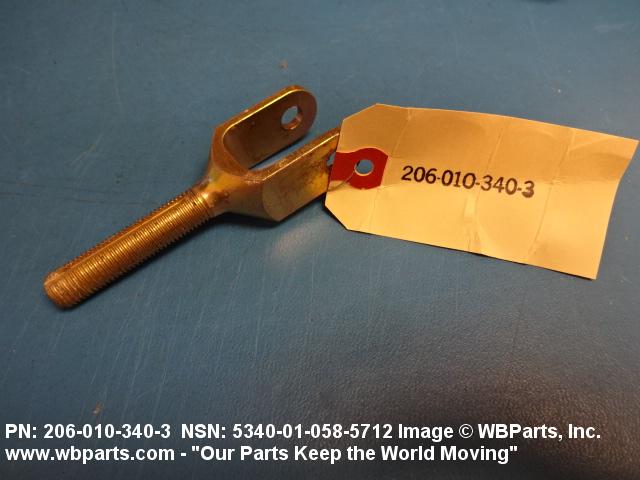

5340-01-058-5712 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 2060103403, 206-010-340-3, 5340-01-058-5712, 01-058-5712, 5340010585712, 010585712
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAR 1978 | 01-058-5712 | 03796 ( CLEVIS, ROD END ) |

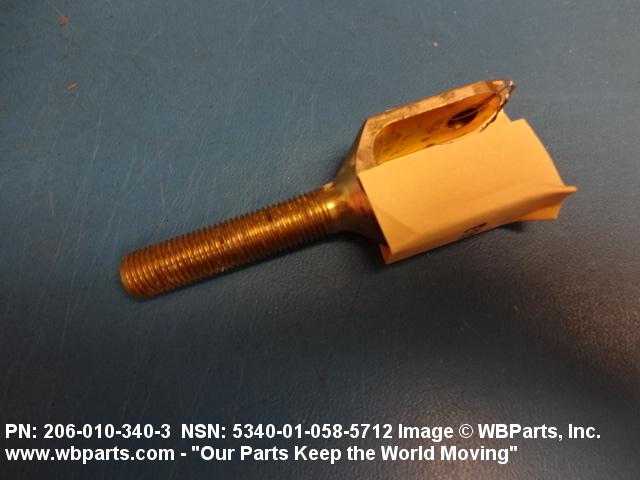

Drawings & Photos | NSN 5340-01-058-5712
Demand History | NSN 5340-01-058-5712
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-058-5712 | 2020-02-38 | 15 | United States |
| 206-010-340-3 | 2019-10-280 | 15 | DIBBS |
| 206-010-340-3 | 2019-06-157 | 15 | DIBBS |
| 5340-01-058-5712 | 2011-12-349 | 2 | DIBBS |
| 5340-01-058-5712 | 2010-04-101 | 2 | DIBBS |
| 5340-01-058-5712 | 2008-06-169 | 5 | DIBBS |
Cross Reference | NSN 5340-01-058-5712
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 206-010-340-3 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-058-5712
Related Products | NSN 5340-01-058-5712
Technical Data | NSN 5340-01-058-5712

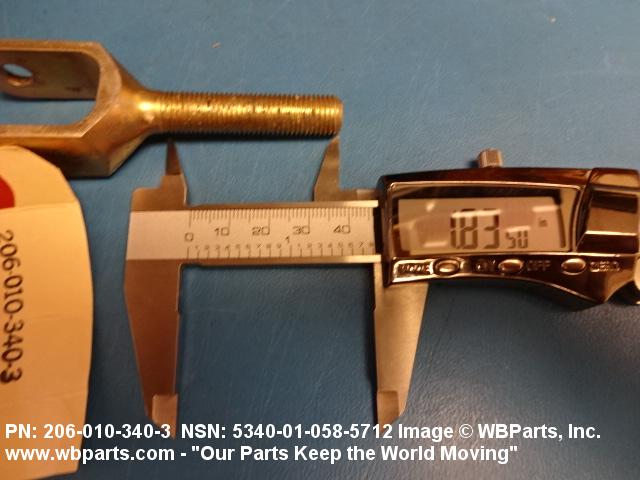

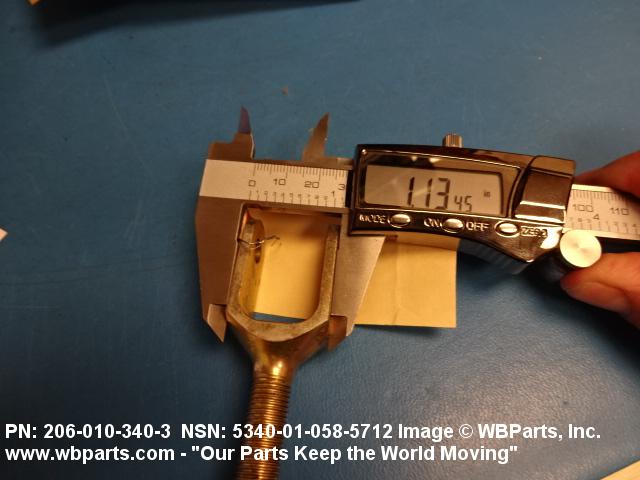

| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56400 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4928 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNJF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.438 INCHES ROD CONNECTION |
| THREAD CLASS | 3A ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 1.780 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 4 CLEVIS |
| SHANK DIAMETER | 0.438 INCHES NOMINAL |
| OVERALL WIDTH | 1.125 INCHES NOMINAL |

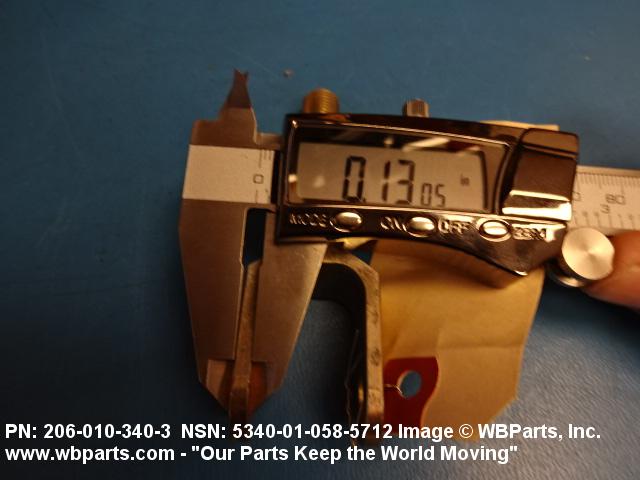

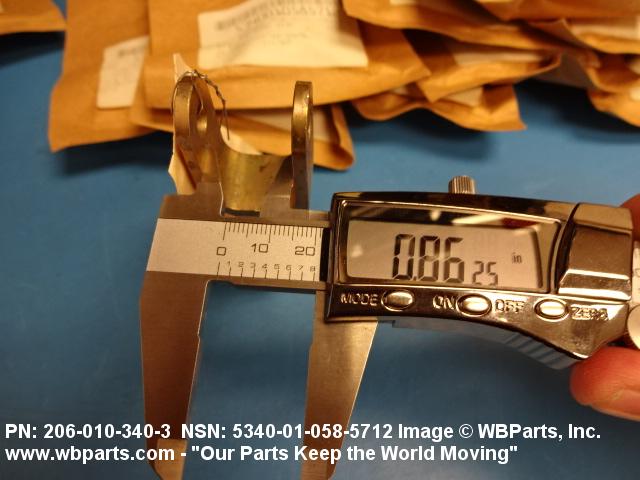

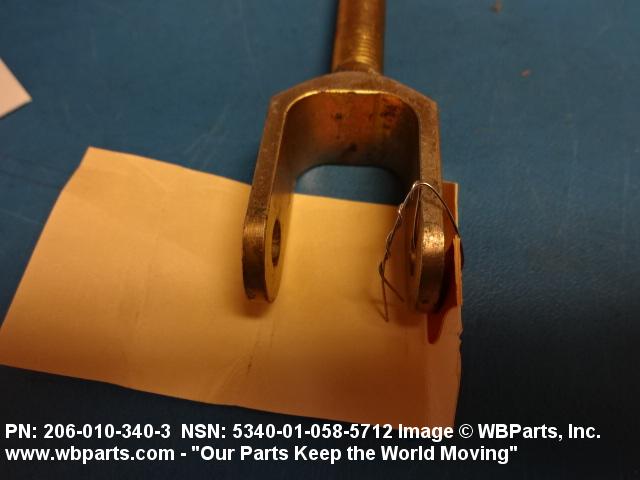

| FORK SPAN WIDTH | 0.861 INCHES MINIMUM AND 0.863 INCHES MAXIMUM |

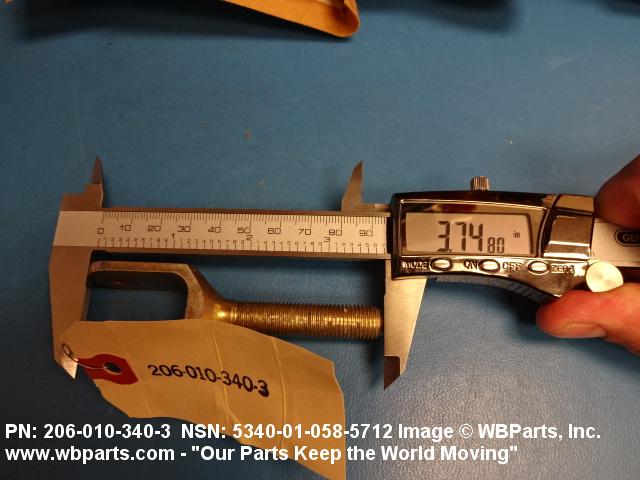

| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 3.375 INCHES NOMINAL |
| FORK ARM THICKNESS | 0.132 INCHES NOMINAL |
| FORK DEPTH | 1.000 INCHES NOMINAL |
| DISTANCE FROM PIVOT PINHOLE CENTER TO FORK END | 0.375 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |

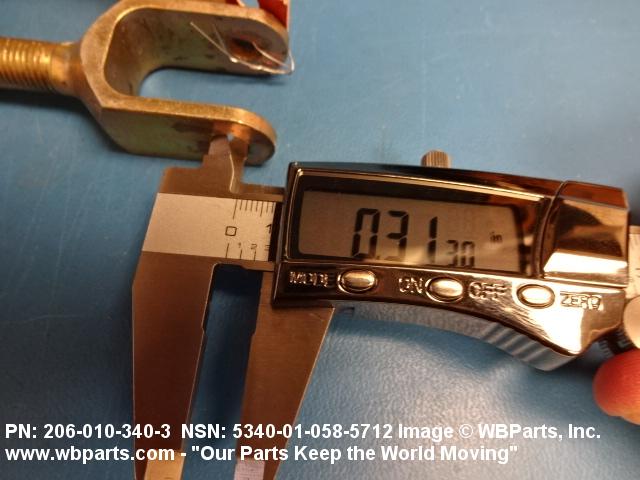

| HOLE DIAMETER | 0.3120 INCHES MINIMUM AND 0.3125 INCHES MAXIMUM |
| SPECIAL FEATURES | 0.095 IN. WIDE SLOT ALONG ROD CONNECTION THREAD LENGTH |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 206-010-340-3 |
Restrictions/Controls & Freight Information | NSN 5340-01-058-5712
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
