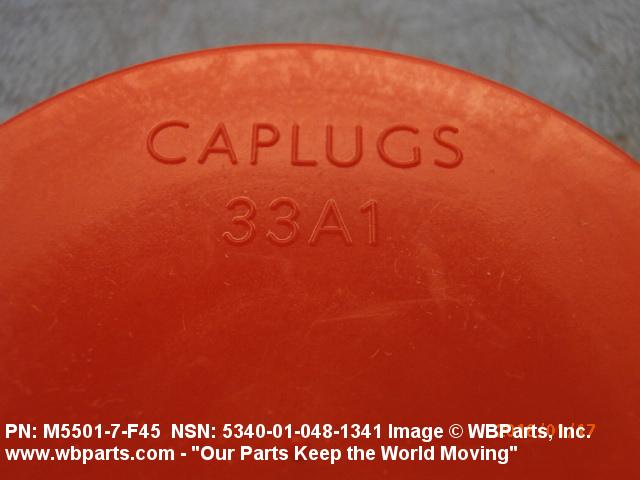

NSN 5340-01-048-1341 M5501/7-F45, M55017F45, SMC8504742
Product Details | DUST AND MOISTURE SEAL PROTECTIVE CAP-PLUG
5340-01-048-1341 An item specifically designed to fit into or over the opening(s) of various items to provide mechanical protection and/or to prevent the entrance of foreign matter during painting, shipping, storage, or the like. It is not designed to retain fluids under pressure during equipment operation. For items designed to fit only into an opening, see PLUG (as modified) and STOPPER (as modified). For items designed to fit only over an opening, see BOOT (as modified); CAP (as modified); COVER (as modified); and HOOD (as modified).
Part Alternates: M5501/7-F45, M55017F45, SMC8504742, SM-C-850474-2, MIL-C-5501/7, MILC55017, 33A1, 33-A1, 5340-01-048-1341, 01-048-1341, 5340010481341, 010481341
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1977 | 01-048-1341 | 13435 ( CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL ) |
Drawings & Photos | NSN 5340-01-048-1341
Demand History | NSN 5340-01-048-1341
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M55017F45 | 2017-10-304 | 1 | Norway |
| M55017F45 | 2017-10-304 | 1 | Norway |
| MIL-C-5501/7 | 2011-06-155 | 10 | Saudi Arabia |
Cross Reference | NSN 5340-01-048-1341
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-048-1341
Technical Data | NSN 5340-01-048-1341
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC,POLYETHYLENE,L-P-390 TY 1,CL L |
| OPEN END INSIDE DIAMETER | 2.408 INCHES MINIMUM AND 2.428 INCHES MAXIMUM |
| CLOSED END OVERALL DIAMETER | 2.644 INCHES NOMINAL |
| LENGTH UNDER SHOULDER | 2.634 INCHES MINIMUM AND 2.654 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-5501/7 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M5501/7-F45 |
Restrictions/Controls & Freight Information | NSN 5340-01-048-1341
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-048-1341
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
