NSN 5340-01-048-1345 ST9M630D32, JM44LC33WD32, 830WD32G
Product Details | LOOP CLAMP
5340-01-048-1345 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: ST9M630D32, JM44LC33WD32, 830WD32G, 09A067WD32NB, 10117573, 5340-01-048-1345, 01-048-1345, 5340010481345, 010481345
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1977 | 01-048-1345 | 17532 ( CLAMP, LOOP ) |

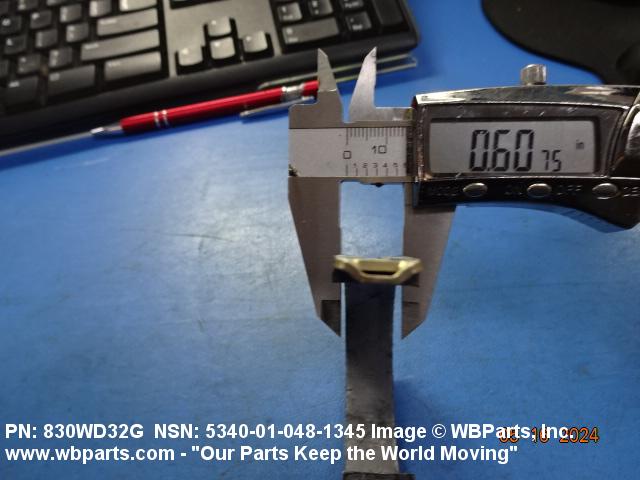

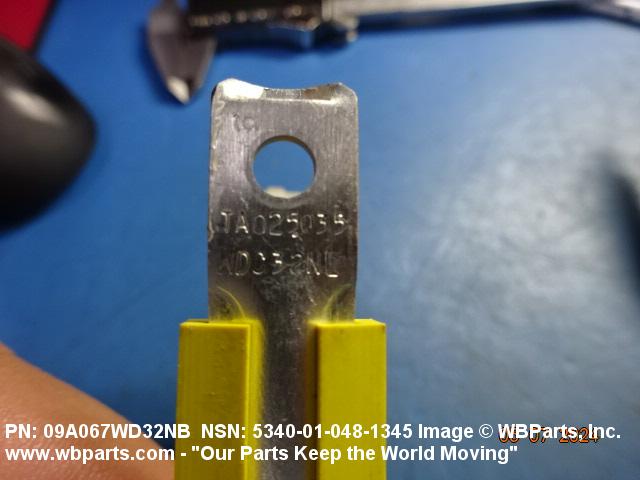

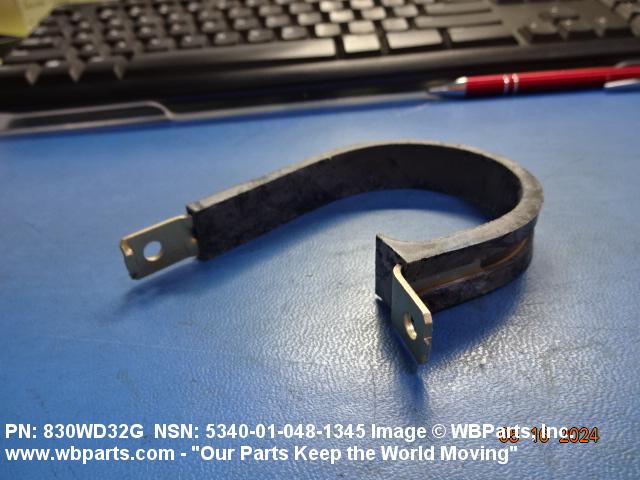

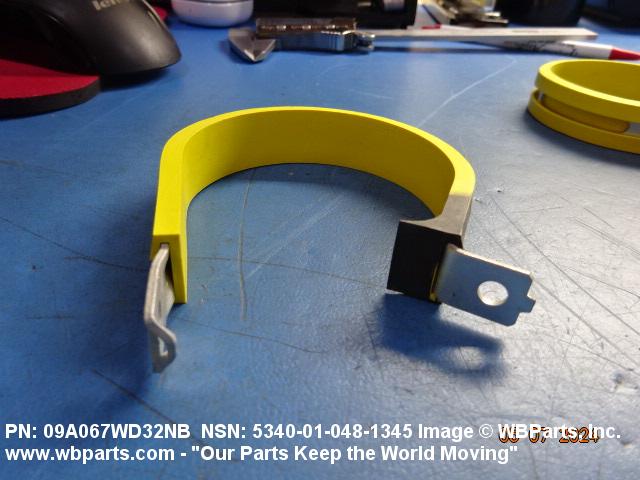

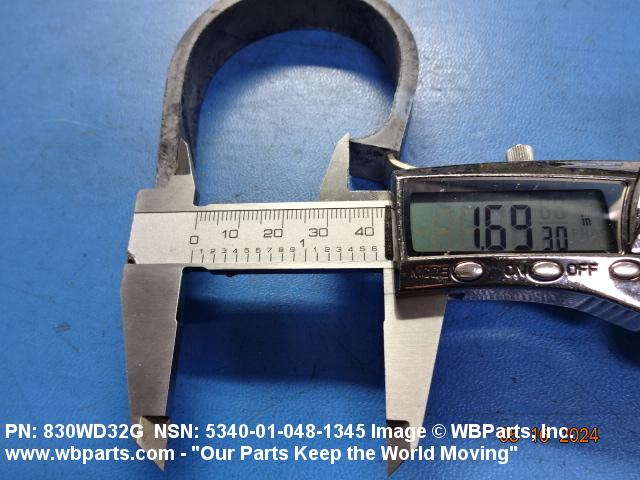

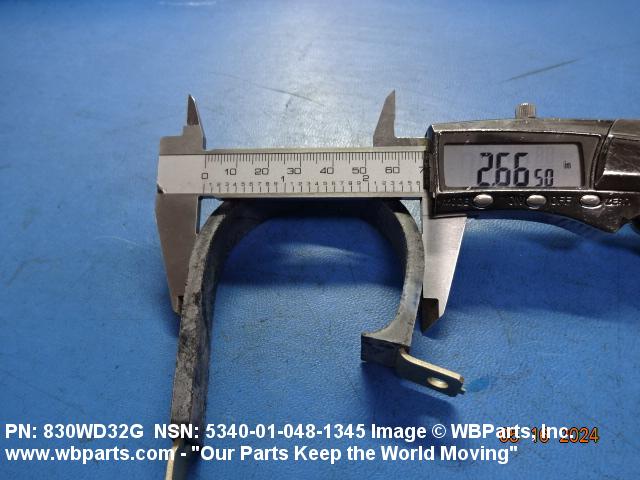

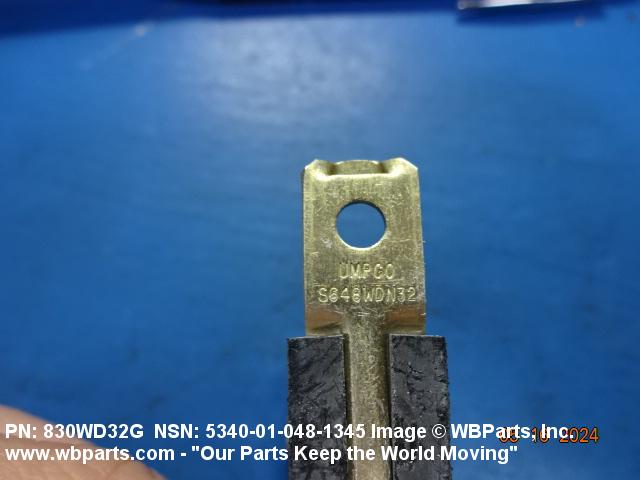

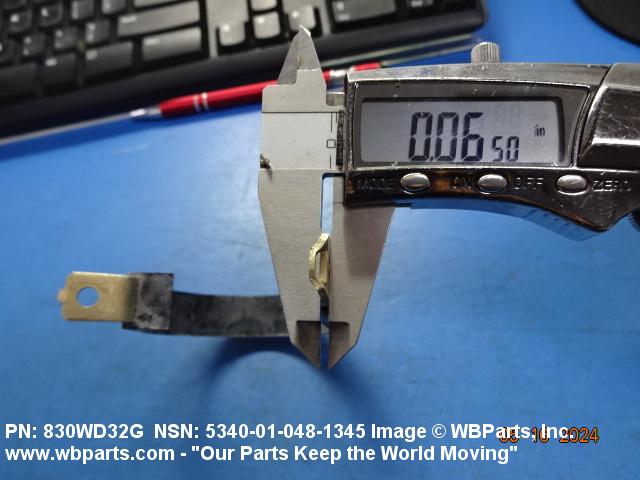

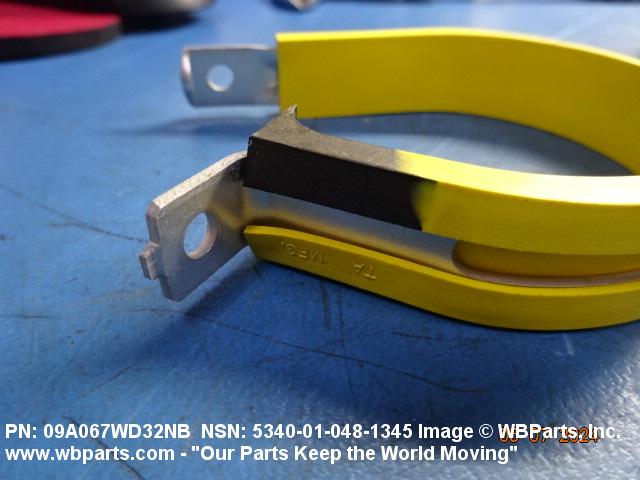

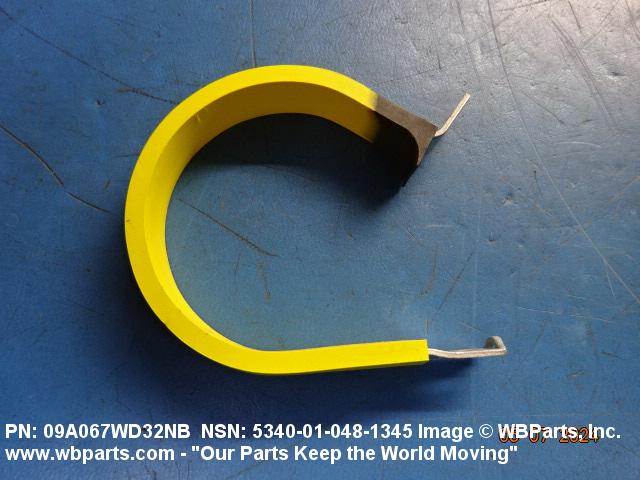

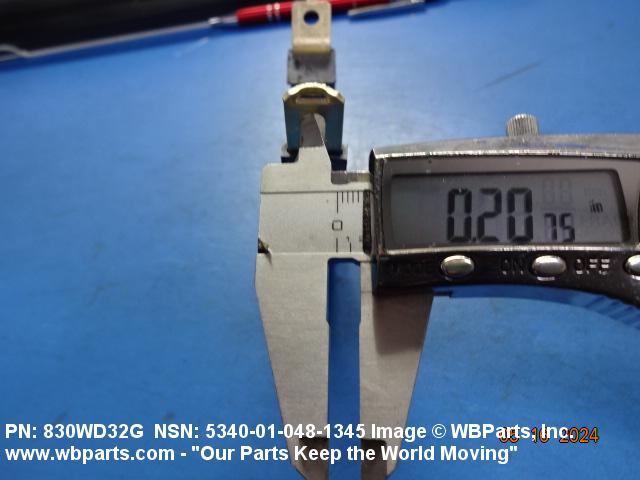

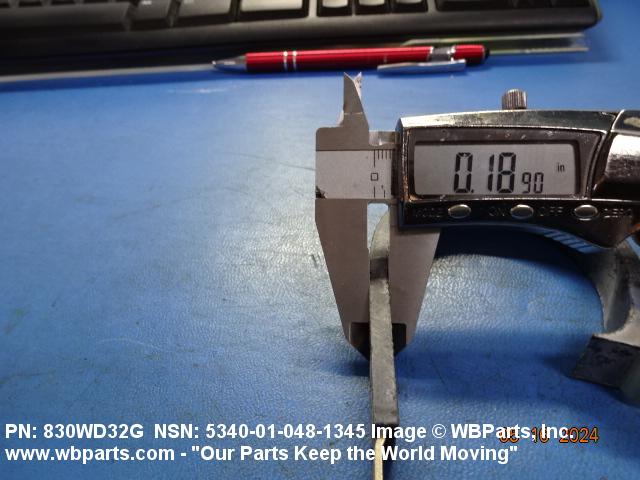

Drawings & Photos | NSN 5340-01-048-1345
Demand History | NSN 5340-01-048-1345
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-048-1345 | 2024-04-94 | 10 | us |
| 5340-01-048-1345 | 2024-04-93 | 10 | us |
Cross Reference | NSN 5340-01-048-1345
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 09A067WD32NB | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 09A067WD32NB | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 830WD32G | 83930 | TRANSDIGM INC DBA ADEL WIGGINS GROUP-COMMERCIAL |
| JM44LC33WD32 | 22175 | J & M PRODUCTS, INC. |
| ST9M630D32 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-048-1345
Related Products | NSN 5340-01-048-1345
Technical Data | NSN 5340-01-048-1345
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 BAND RUBBER CHLOROPRENE CLASS CR CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/5,T4 FED SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION |
| STYLE DESIGNATOR | A5 OFFSET MOUNT |

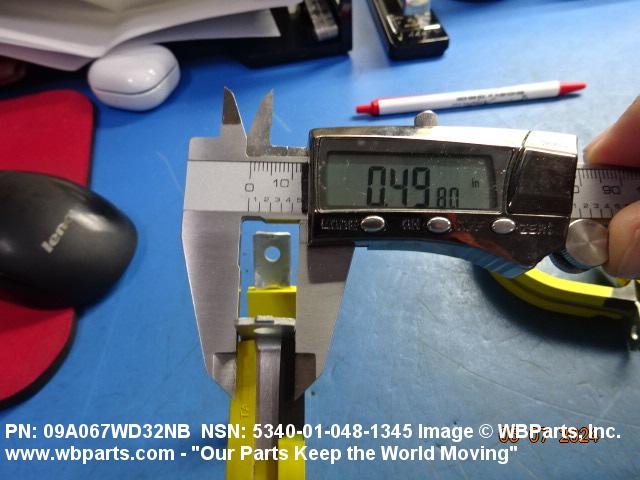

| OVERALL WIDTH | 0.500 INCHES NOMINAL |

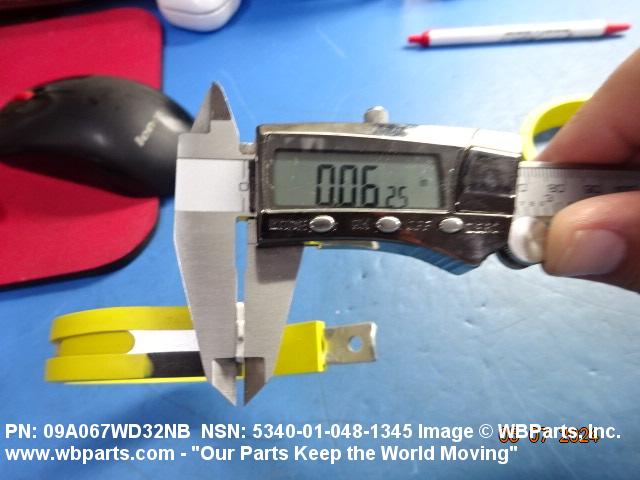

| MATERIAL THICKNESS | 0.064 INCHES NOMINAL |

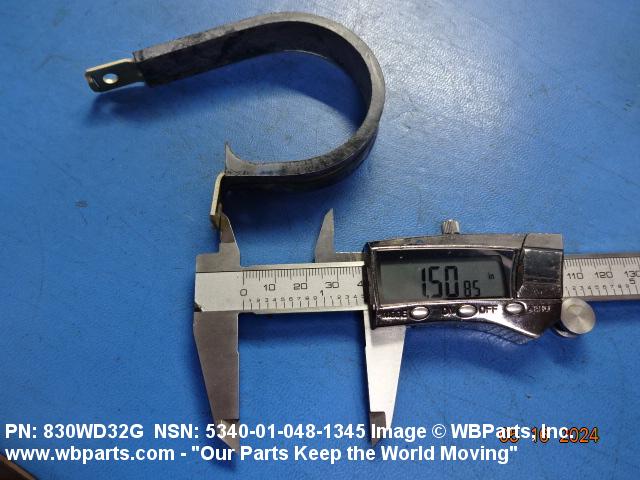

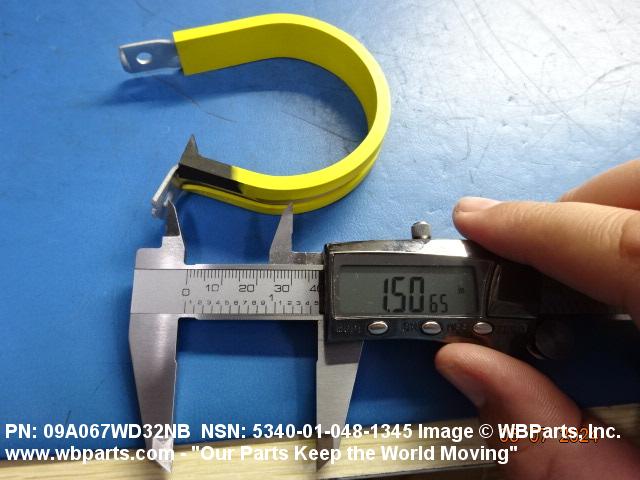

| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.500 INCHES NOMINAL |

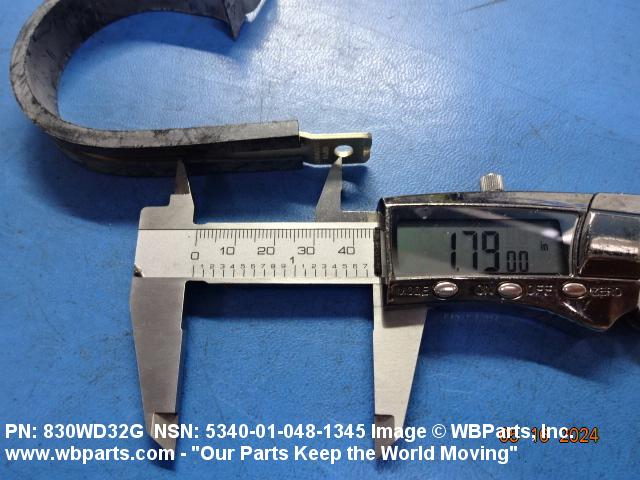

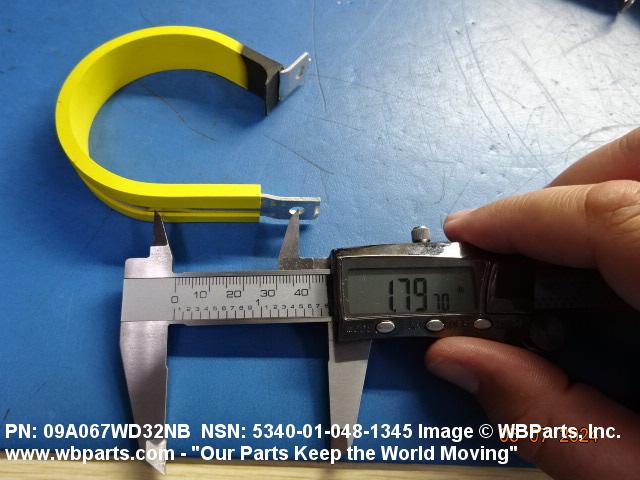

| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.795 INCHES NOMINAL |

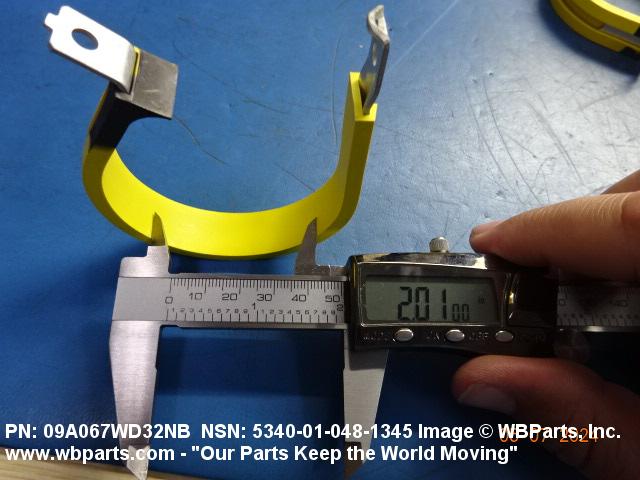

| LOOP INSIDE DIAMETER | 2.000 INCHES NOMINAL |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |

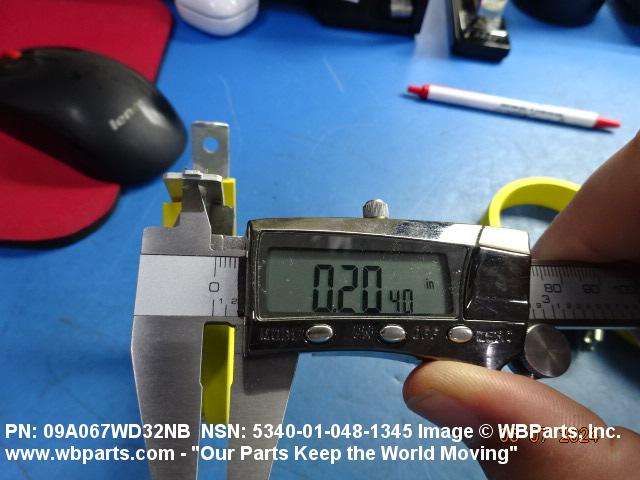

| DIAMETER | 0.204 INCHES NOMINAL |
| SPECIAL FEATURES | CUSHION WITH WEDGE |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | ST9M630D32 |
Restrictions/Controls & Freight Information | NSN 5340-01-048-1345
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ||
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-048-1345
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | FR | TL:F-22 AIRCRAFT |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F01 | Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
