NSN 5340-01-031-9625 10956510, 01-031-9625, 010319625

Product Details | ROD END CLEVIS

5340-01-031-9625 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial

Part Alternates: 10956510, 5340-01-031-9625, 01-031-9625, 5340010319625, 010319625

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	04 DEC 1976	01-031-9625	03796 ( CLEVIS, ROD END )

Drawings & Photos | NSN 5340-01-031-9625

Part Number	Request Date	QTY	Origin
5340-01-031-9625	2021-08-215	2	DIBBS
5340-01-031-9625	2021-08-215	1	DIBBS
5340-01-031-9625	2021-01-24	2	DIBBS
5340-01-031-9625	2021-01-24	1	DIBBS
5340-01-031-9625	2016-05-139	3	DIBBS
5340-01-031-9625	2016-01-14	3	DIBBS
5340-01-031-9625	2015-02-49	1	DIBBS
5340-01-031-9625	2015-01-01	1	DIBBS
5340-01-031-9625	2014-02-44	3	DIBBS
5340-01-031-9625	2014-01-29	3	DIBBS
5340-01-031-9625	2013-03-63	5	DIBBS
5340-01-031-9625	2012-08-244	5	DIBBS

Cross Reference | NSN 5340-01-031-9625

Part Number	Cage Code	Manufacturer
10956510	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5340-01-031-9625

Compare

Related Products | NSN 5340-01-031-9625

5340-01-031-9696, 5340-01-031-9698, 5340-01-031-9962, 5340-01-031-9963, 5340-01-031-9964

Technical Data | NSN 5340-01-031-9625

Characteristic	Specifications
MATERIAL	STEEL COMP 150-125 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-681,CLASS 150-125 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	PHOSPHATE MANGANESE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-P-16232,TYPE M,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL

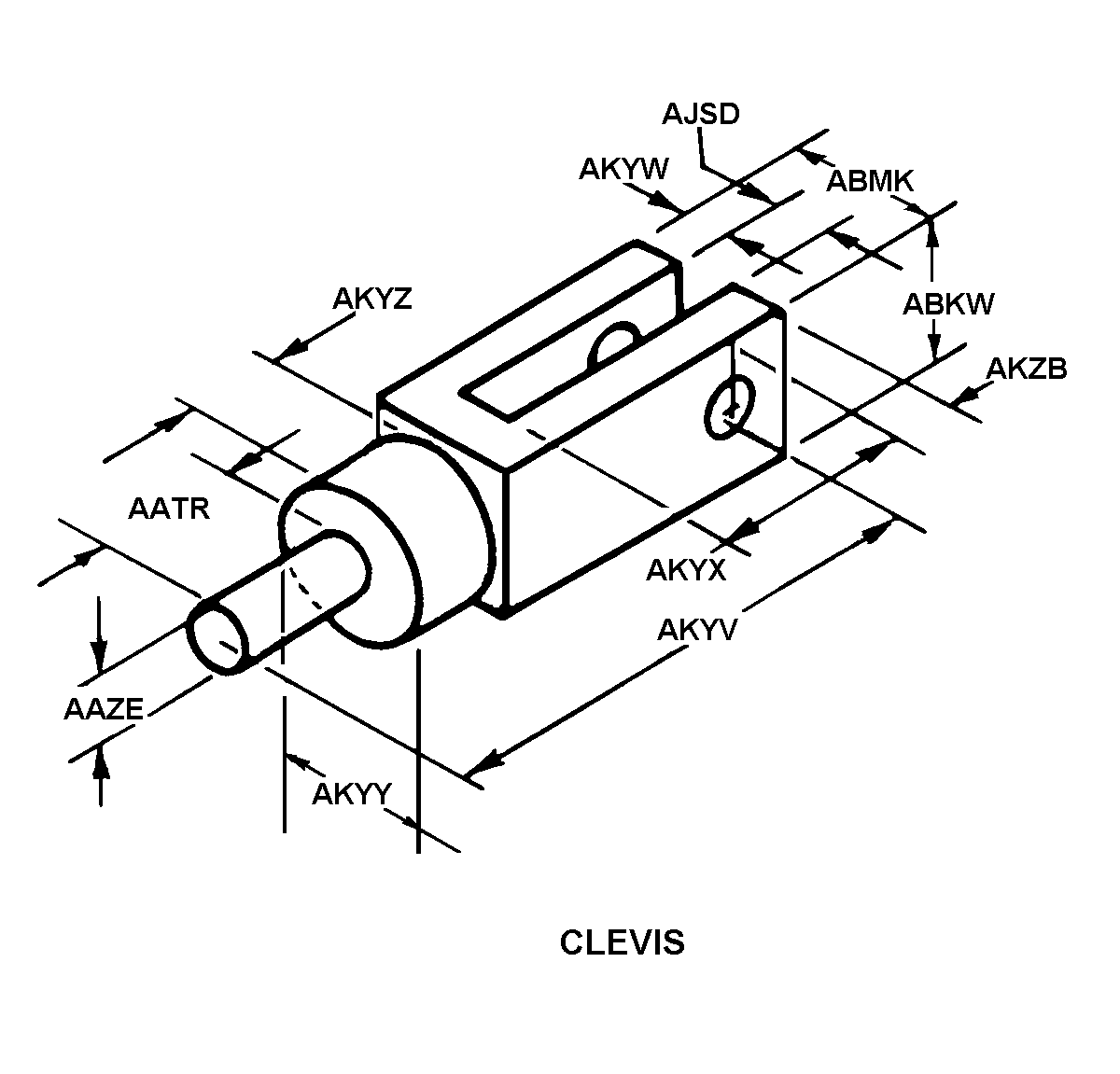

STYLE DESIGNATOR	10 CLEVIS
SHANK LENGTH	2.940 INCHES MINIMUM AND 3.060 INCHES MAXIMUM
SHANK DIAMETER	0.862 INCHES NOMINAL
OVERALL HEIGHT	1.000 INCHES NOMINAL
OVERALL WIDTH	1.530 INCHES MINIMUM AND 1.560 INCHES MAXIMUM
FORK SPAN WIDTH	1.000 INCHES NOMINAL
DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END	6.090 INCHES MINIMUM AND 6.150 INCHES MAXIMUM
FORK ARM THICKNESS	0.305 INCHES NOMINAL
FORK DEPTH	1.804 INCHES MINIMUM AND 1.816 INCHES MAXIMUM
SHANK SHOULDER DIAMETER	1.350 INCHES MINIMUM AND 1.410 INCHES MAXIMUM
SHANK SHOULDER LENGTH	1.320 INCHES MINIMUM AND 1.340 INCHES MAXIMUM
SECURING PIN HOLE DIAMETER	0.511 INCHES MINIMUM AND 0.521 INCHES MAXIMUM
DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END	0.510 INCHES MINIMUM AND 0.630 INCHES MAXIMUM
SPECIAL FEATURES	BODY SHOULDER 0.500 IN.W,TAPERED SHANK
III UNPACKAGED UNIT WEIGHT	3.00 POUNDS
MANUFACTURERS CODE	19207
DESIGN CONTROL REFERENCE	10956510

Restrictions/Controls & Freight Information | NSN 5340-01-031-9625

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	094140	CLEVISES IRON/STEEL
Less than car load rating	U	50
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	AZ	U.S. Army Tank-Automotive and Armaments Command Warren, MI 48397-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5340-01-031-9625

Army
Marines

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
