NSN 5340-01-006-9276 113663, 01-006-9276, 010069276
Product Details | SPACING THREADED STANDOFF
5340-01-006-9276 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 113663, 5340-01-006-9276, 01-006-9276, 5340010069276, 010069276
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUL 1975 | 01-006-9276 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-01-006-9276
Cross Reference | NSN 5340-01-006-9276
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 113663 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-006-9276
Technical Data | NSN 5340-01-006-9276
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | ROUND |
| DIAMETER | 0.250 INCHES NOMINAL |

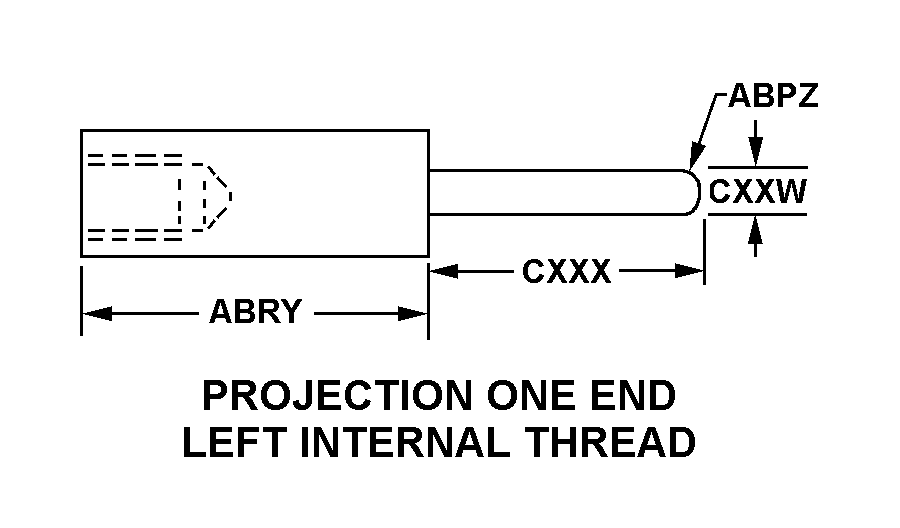

| STYLE DESIGNATOR | 19 PROJECTION ONE END LEFT INTERNAL THREAD |
| END RADIUS | 0.030 INCHES NOMINAL |
| LENGTH | 0.575 INCHES NOMINAL |
| LEFT PROJECTION CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| SPECIAL FEATURES | CHAMFER PROJECTION END 45 DEGREES |
| (NON-CORE DATA) FIRST PROJECTION LENGTH | 0.310 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION DIAMETER | 0.151 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD LENGTH | 0.250 INCHES NOMINAL |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | 4-40 UNC 2B RH |
| (NON-CORE DATA) MATERIAL | STEEL, SAE 1018 |
| (NON-CORE DATA) SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 1, CLASS 3 |
Restrictions/Controls & Freight Information | NSN 5340-01-006-9276
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
