Product Details | SPACING THREADED STANDOFF
5340-01-005-4242 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 1202332-25, 803627, 9518BA0256, 9518-B-A-0256, 5340-01-005-4242, 01-005-4242, 5340010054242, 120233225, 010054242
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JUN 1975 | 01-005-4242 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-01-005-4242
Cross Reference | NSN 5340-01-005-4242
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1202332-25 | 06424 | ALLIANT TECHSYSTEMS OPERATIONS LLC DIV DEFENSE ELECTRONIC SYSTEMS |
| 803627 | 07342 | NAI TECHNOLOGIES INC |
| 803627 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 9518-B-A-0256 | 06540 | NEW HAVEN MFG CORP AMATOM ELECTRONIC HARDWARE DIV |
| 9518-B-A-0256 | 1YGB8 | CAREY MANUFACTURING COMPANY, INC. DBA AMATOM ELECTRONIC HARDWARE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-005-4242
Related Products | NSN 5340-01-005-4242
Technical Data | NSN 5340-01-005-4242
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | ROUND |
| DIAMETER | 0.188 INCHES NOMINAL |

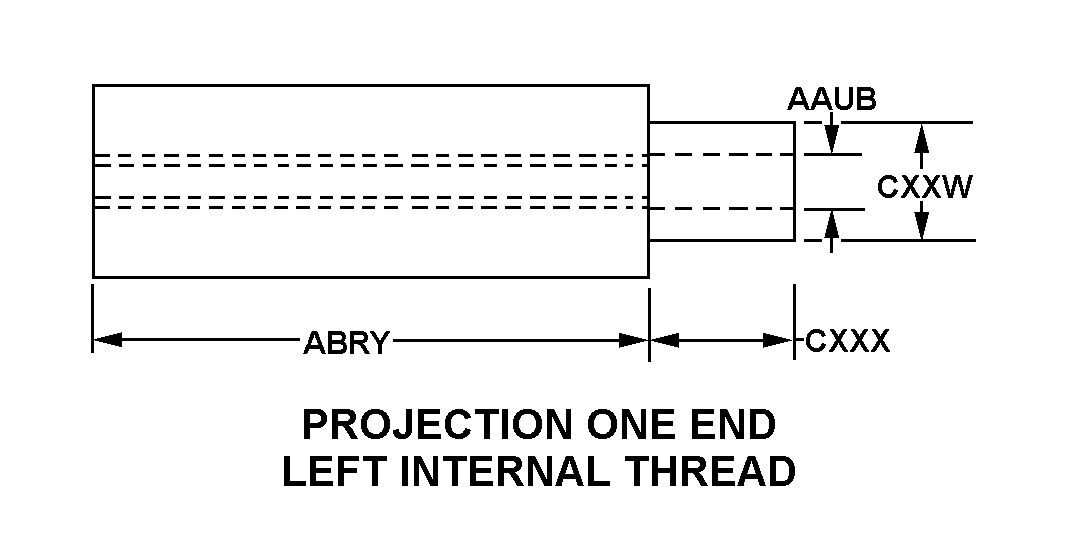

| STYLE DESIGNATOR | 22 PROJECTION ONE END LEFT INTERNAL THREAD |
| LENGTH | 0.125 INCHES NOMINAL |
| (NON-CORE DATA) FIRST PROJECTION LENGTH | 0.102 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| (NON-CORE DATA) FIRST PROJECTION DIAMETER | 0.136 INCHES MINIMUM AND 0.139 INCHES MAXIMUM |
| (NON-CORE DATA) FIRST INTERNAL THREAD CHARACTERISTICS | 2-56 UNC-2B |
| (NON-CORE DATA) FIRST PROJECTION HOLE DIAMETER | 0.107 INCHES MINIMUM AND 0.111 INCHES MAXIMUM |
| (NON-CORE DATA) MATERIAL | ALUMINUM ALLOY, QQ-A-200/8, ALLOY 6061 OR ALUMINUM ALLOY, QQ-A-200/9, ALLOY 6063 OR ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024 OR ALUMINUM ALLOY, QQ-A-225/8, ALLOY 6061 OR ALUMINUM ALLOY, QQ-A-225/3, ALLOY 2011 |
Restrictions/Controls & Freight Information | NSN 5340-01-005-4242
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
