NSN 5340-01-005-2580 ST9M527BH1322, ST9M527BH13-22, TA5006BH1322
Product Details | LOOP CLAMP
5340-01-005-2580 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: ST9M527BH1322, ST9M527BH13-22, TA5006BH1322, TA5006BH13-22, 5340-01-005-2580, 01-005-2580, 5340010052580, 010052580
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1975 | 01-005-2580 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-01-005-2580
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-005-2580
Technical Data | NSN 5340-01-005-2580
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING BAND RUBBER CHLOROPRENE CLASS CR CUSHION |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6721,COMP TI 321 MIL SPEC SINGLE MATERIAL RESPONSE BAND AMS 3209 ASSN STD SINGLE MATERIAL RESPONSE CUSHION |
| SURFACE TREATMENT | PASSIVATE BAND |

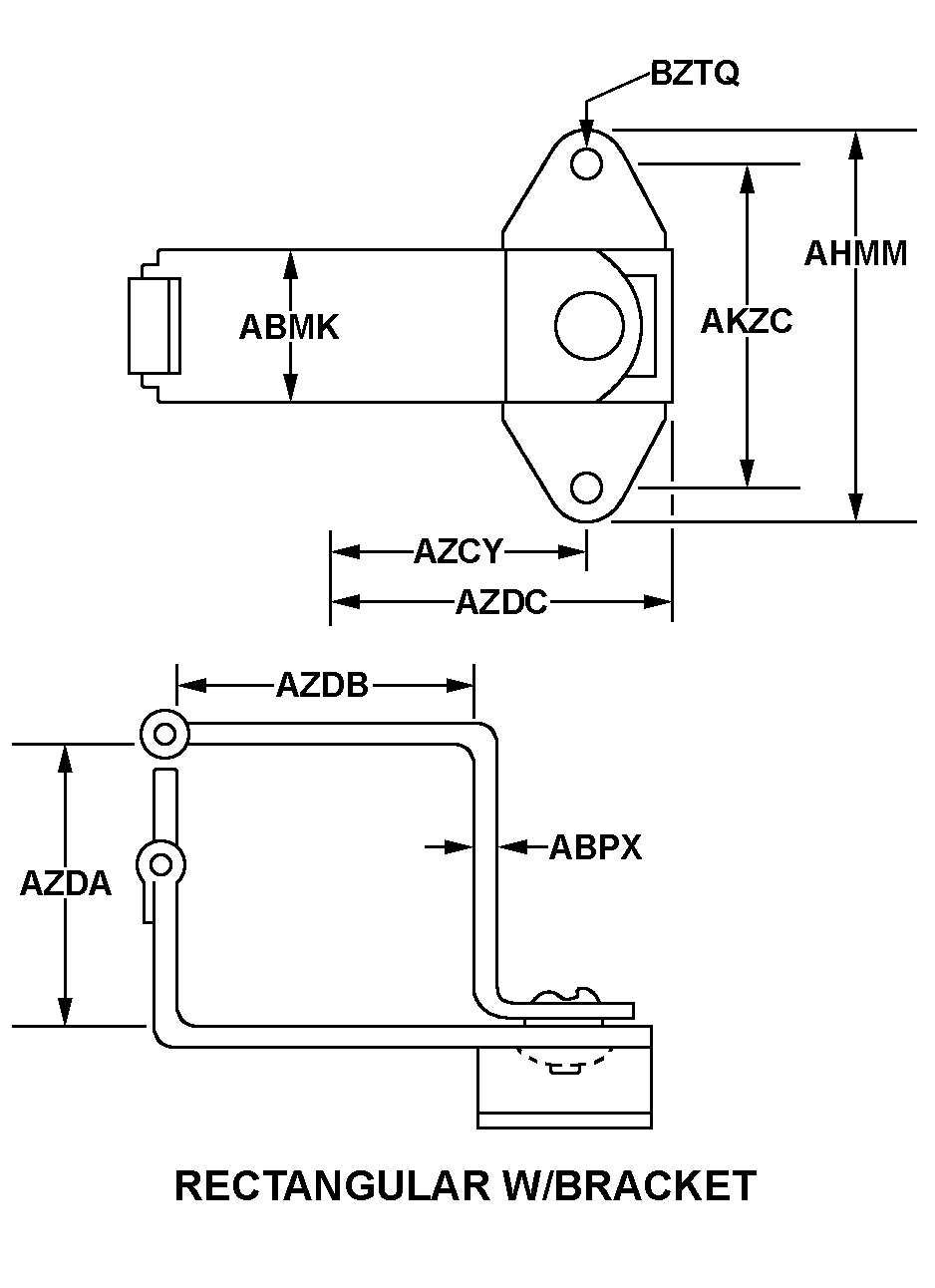

| STYLE DESIGNATOR | A63 RECTANGULAR W/BRACKET |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| LUG WIDTH | ANY ACCEPTABLE |
| CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 1.219 INCHES MINIMUM AND 1.281 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 1.211 INCHES NOMINAL |
| LOOP WIDTH | 0.812 INCHES NOMINAL |
| LOOP LENGTH | 1.375 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.586 INCHES NOMINAL |
| LUG HOLE DIAMETER | 0.204 INCHES NOMINAL |
| INTEGRAL NUT TYPE AND QUANTITY | 1 SELF-LOCKING EQUAL LENGTH TONGUES |
| CUSHIONING ENVIRONMENTAL PROTECTION | WEATHER RESISTANT |
| MANUFACTURERS CODE | 84971 |
| DESIGN CONTROL REFERENCE | TA5006BH13-22 |
