NSN 5340-01-005-2651 6891429, 01-005-2651, 010052651
Product Details | ACCESS COVER
5340-01-005-2651 A rigid or flexible item of various shapes attached to a structure for the purpose of providing access for inspection, service, replacement of components and/or adjustments or mounting operations. It is designed to be attached by means of bolt holes, slots, mounting ears, tabs, and the like. To permit access, the mounted cover requires partial or complete removal. It may include an observation window. For items permanently attached by hinges and the like, see DOOR, ACCESS (as modified). Excludes all covers not specifically designed to provide access for the purposes listed above.20310050018Guns, through 30mm2590000053400020Hardware, Commercial
Part Alternates: 6891429, 5340-01-005-2651, 01-005-2651, 5340010052651, 010052651
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1975 | 01-005-2651 | 29785 ( COVER, ACCESS ) |
Drawings & Photos | NSN 5340-01-005-2651
Cross Reference | NSN 5340-01-005-2651
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6891429 | 73342 | ALLISON TRANSMISSION, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-005-2651
Technical Data | NSN 5340-01-005-2651
| Characteristic | Specifications |
|---|---|
| PERIPHERAL SHAPE STYLE | 77 ROUND, NO HOLES |
| OUTSIDE DIAMETER | 2.117 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | 18 CIRCULAR RECESS |
| INSIDE DIAMETER | 1.370 INCHES NOMINAL |
| PILOT DIAMETER | 1.500 INCHES NOMINAL |
| FLANGE THICKNESS | 0.191 INCHES NOMINAL |
| FIRST RECESS INSIDE HEIGHT | 0.550 INCHES NOMINAL |
| INSIDE CORNER RADIUS | 0.050 INCHES NOMINAL |
| BODY THICKNESS | 0.070 INCHES NOMINAL |
| OUTSIDE CORNER RADIUS | 0.100 INCHES NOMINAL |
| BODY OUTSIDE RADIUS | 0.112 INCHES NOMINAL |
| PILOT HEIGHT | 0.040 INCHES NOMINAL |
| INSIDE ANGLE | 180.0 DEGREES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE |
| SECURING DEVICE TYPE | FLUSH CATCH |

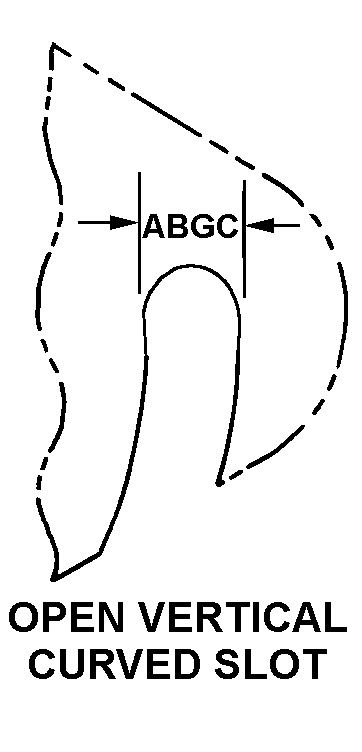

| MOUNTING OPENING SHAPE STYLE | 7 OPEN VERTICAL CURVED SLOT |
| SLOT WIDTH | 0.520 INCHES NOMINAL |
| FEATURES PROVIDED | SEALING CAPABILITY |
| MANUFACTURERS CODE | 73342 |
| DESIGN CONTROL REFERENCE | 6891429 |
Restrictions/Controls & Freight Information | NSN 5340-01-005-2651
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
