NSN 5340-01-003-7688 SCRHD5ASP4SL, 1C2730P25, 01-003-7688
Product Details | SWIVEL CASTER
5340-01-003-7688 A caster designed to allow rotation of the wheel(s) or spherical constructed item in more than one plane.
Part Alternates: SCRHD5ASP4SL, 1C2730P25, 5340-01-003-7688, 01-003-7688, 5340010037688, 010037688
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAY 1975 | 01-003-7688 | 06188 ( CASTER, SWIVEL ) |
Drawings & Photos | NSN 5340-01-003-7688
Demand History | NSN 5340-01-003-7688
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-003-7688 | 2016-09-264 | 1 | DIBBS |
| 5340-01-003-7688 | 2011-10-289 | 4 | DIBBS |
| 5340-01-003-7688 | 2011-05-134 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-003-7688
Related Products | NSN 5340-01-003-7688
Technical Data | NSN 5340-01-003-7688
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PLASTIC TREAD ALUMINUM ALLOY WHEEL RIM ALUMINUM ALLOY BODY ALUMINUM ALLOY PLATE |
| SAFE OPERATING LOAD RATING | 250.0 POUNDS NOMINAL |
| STYLE DESIGNATOR | 2 SWIVEL OFFSET |
| WHEEL DIAMETER | 4.000 INCHES NOMINAL |
| TREAD WIDTH | 1.500 INCHES NOMINAL |
| EFFECTIVE HEIGHT | 5.910 INCHES NOMINAL |

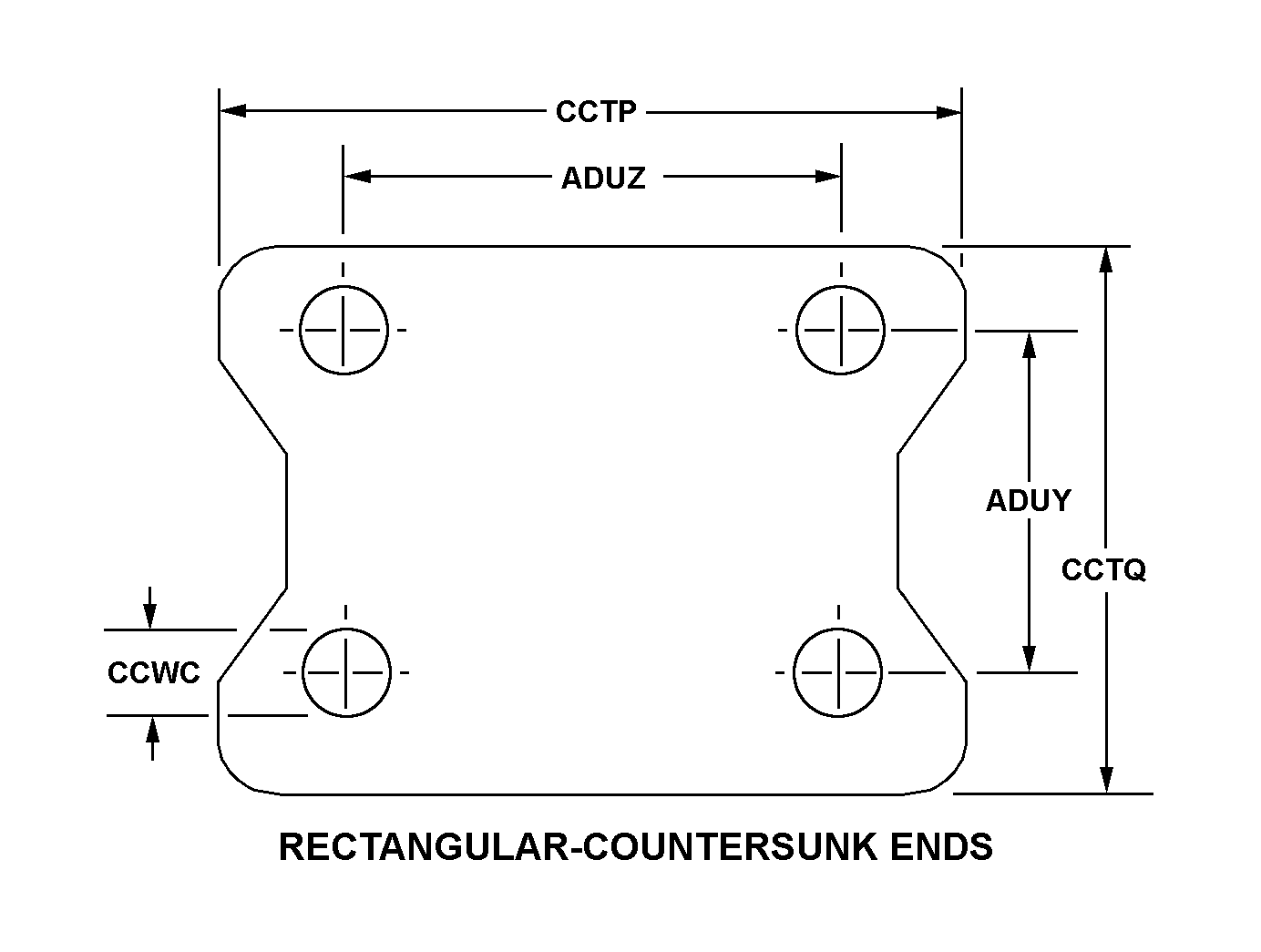

| PLATE STYLE | 8 RECTANGULAR-COUNTERSUNK ENDS |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 3.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 4.000 INCHES NOMINAL |
| CASTER PLATE LENGTH | 5.000 INCHES NOMINAL |
| CASTER PLATE WIDTH | 4.000 INCHES NOMINAL |
| CASTER PLATE MOUNTING HOLE DIAMETER | 0.380 INCHES NOMINAL |
| WHEEL BEARING TYPE | TAPERED ROLLER |
| SWIVEL BEARING TYPE | THRUST |
| KING BOLT BEARING TYPE | THRUST |
| WHEEL QUANTITY | 1 |
| WHEEL TYPE | BUILT UP |
| FEATURES PROVIDED | SWIVEL LOCK |
| MANUFACTURERS CODE | 83445 |
| DESIGN CONTROL REFERENCE | SCRHD5ASP4SL |
Restrictions/Controls & Freight Information | NSN 5340-01-003-7688
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 041725 | CASTERS NOI IN BAGS/BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
