NSN 5340-01-003-7714 13219E0472, 01-003-7714, 010037714
Product Details | WEBBING STRAP
5340-01-003-7714 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.20416800049Miscellaneous Aircraft Accessories and Components53400020Hardware, Commercial84650020Individual Equipment84700015Armor, Personal
Part Alternates: 13219E0472, 5340-01-003-7714, 01-003-7714, 5340010037714, 010037714
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 MAY 1975 | 01-003-7714 | 20659 ( STRAP, WEBBING ) |
Drawings & Photos | NSN 5340-01-003-7714
Cross Reference | NSN 5340-01-003-7714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13219E0472 | 97403 | CECOM LR CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-01-003-7714
Technical Data | NSN 5340-01-003-7714
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON, MIL-W-5665, TYPE 17, CLASS 2B |
| LENGTH | 5.000 INCHES NOMINAL |
| WIDTH | 1.000 INCHES NOMINAL |
| COLOR | OLIVE DRAB |
| END TYPE | FOLDED AND W/ATTACHMENT |
| FOLD TYPE | LOOSE |
| ATTACHMENT METHOD FOR WHICH DESIGNED | SEWED |
| END ATTACHMENT/FASTENING FACILITY | BUCKLE |

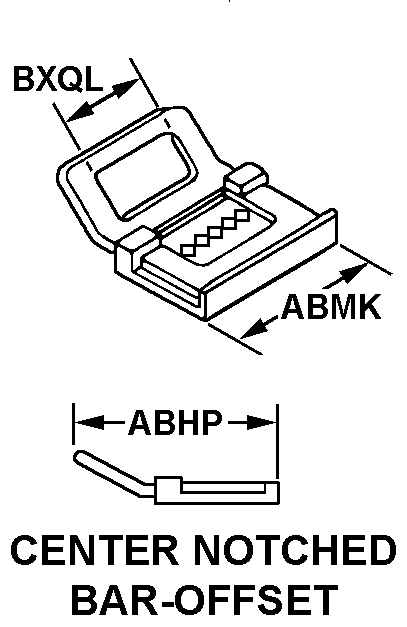

| BUCKLE STYLE DESIGNATOR | B10 CENTER NOTCHED BAR OFFSET |
| BUCKLE MATERIAL | BRASS |
| BUCKLE LOCATION | END OF STRAP |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | SERRATION |
Restrictions/Controls & Freight Information | NSN 5340-01-003-7714
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 179580 | STRAPS LEATHER IMITATION LEATHER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 772 | unknown |
| Originating Activity Code | AJ | U.S. Army Soldier's Biological and Chemical Command Natick, MA 01760 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | K | Clothing, including clothing equipment (other than arms and chemical supplies) cordage, fabrics and leather, parachutes, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-003-7714
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
