NSN 5340-01-003-7386 68A4506782003, 68A450678-2003, 01-003-7386
Product Details | DOUBLE ANGLE BRACKET
5340-01-003-7386 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 68A4506782003, 68A450678-2003, 5340-01-003-7386, 01-003-7386, 5340010037386, 010037386
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 MAY 1975 | 01-003-7386 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-01-003-7386
Demand History | NSN 5340-01-003-7386
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-003-7386 | 2018-11-324 | 22 | DIBBS |
| 5340-01-003-7386 | 2018-10-283 | 65 | DIBBS |
| 5340-01-003-7386 | 2018-08-232 | 24 | DIBBS |
| 5340-01-003-7386 | 2018-07-190 | 19 | DIBBS |
| 5340-01-003-7386 | 2016-10-300 | 62 | DIBBS |
| 5340-01-003-7386 | 2016-07-189 | 76 | DIBBS |
| 5340-01-003-7386 | 2014-02-59 | 86 | DIBBS |
| 5340-01-003-7386 | 2014-02-44 | 86 | DIBBS |
| 5340-01-003-7386 | 2013-03-66 | 55 | DIBBS |
| 5340-01-003-7386 | 2013-01-31 | 154 | DIBBS |
| 5340-01-003-7386 | 2012-11-307 | 45 | DIBBS |
| 5340-01-003-7386 | 2012-09-255 | 53 | DIBBS |
| 5340-01-003-7386 | 2012-09-255 | 59 | DIBBS |
| 5340-01-003-7386 | 2012-07-199 | 59 | DIBBS |
| 5340-01-003-7386 | 2012-07-184 | 53 | DIBBS |
| 5340-01-003-7386 | 2012-05-143 | 43 | DIBBS |
| 5340-01-003-7386 | 2010-12-349 | 126 | DIBBS |
| 5340-01-003-7386 | 2010-09-256 | 76 | DIBBS |
| 5340-01-003-7386 | 2010-06-174 | 50 | DIBBS |
| 5340-01-003-7386 | 2010-06-160 | 65 | DIBBS |
| 5340-01-003-7386 | 2010-05-132 | 54 | DIBBS |
| 5340-01-003-7386 | 2010-04-120 | 45 | DIBBS |
| 5340-01-003-7386 | 2010-01-22 | 46 | DIBBS |
| 5340-01-003-7386 | 2010-01-20 | 78 | DIBBS |
| 5340-01-003-7386 | 2010-01-05 | 78 | DIBBS |
| 5340-01-003-7386 | 2009-12-338 | 100 | DIBBS |
| 5340-01-003-7386 | 2009-07-208 | 39 | DIBBS |
| 5340-01-003-7386 | 2009-04-105 | 7 | DIBBS |
| 5340-01-003-7386 | 2009-01-15 | 117 | DIBBS |
| 5340-01-003-7386 | 2008-12-364 | 119 | DIBBS |
| 5340-01-003-7386 | 2008-10-297 | 93 | DIBBS |
| 5340-01-003-7386 | 2008-08-214 | 71 | DIBBS |
| 5340-01-003-7386 | 2008-05-149 | 62 | DIBBS |
| 5340-01-003-7386 | 2008-03-86 | 58 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-003-7386
Related Products | NSN 5340-01-003-7386
Technical Data | NSN 5340-01-003-7386
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18729,COND N MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | PS13101,T2,CLASS 1,FSCM 76301 MFR REF SINGLE TREATMENT RESPONSE |

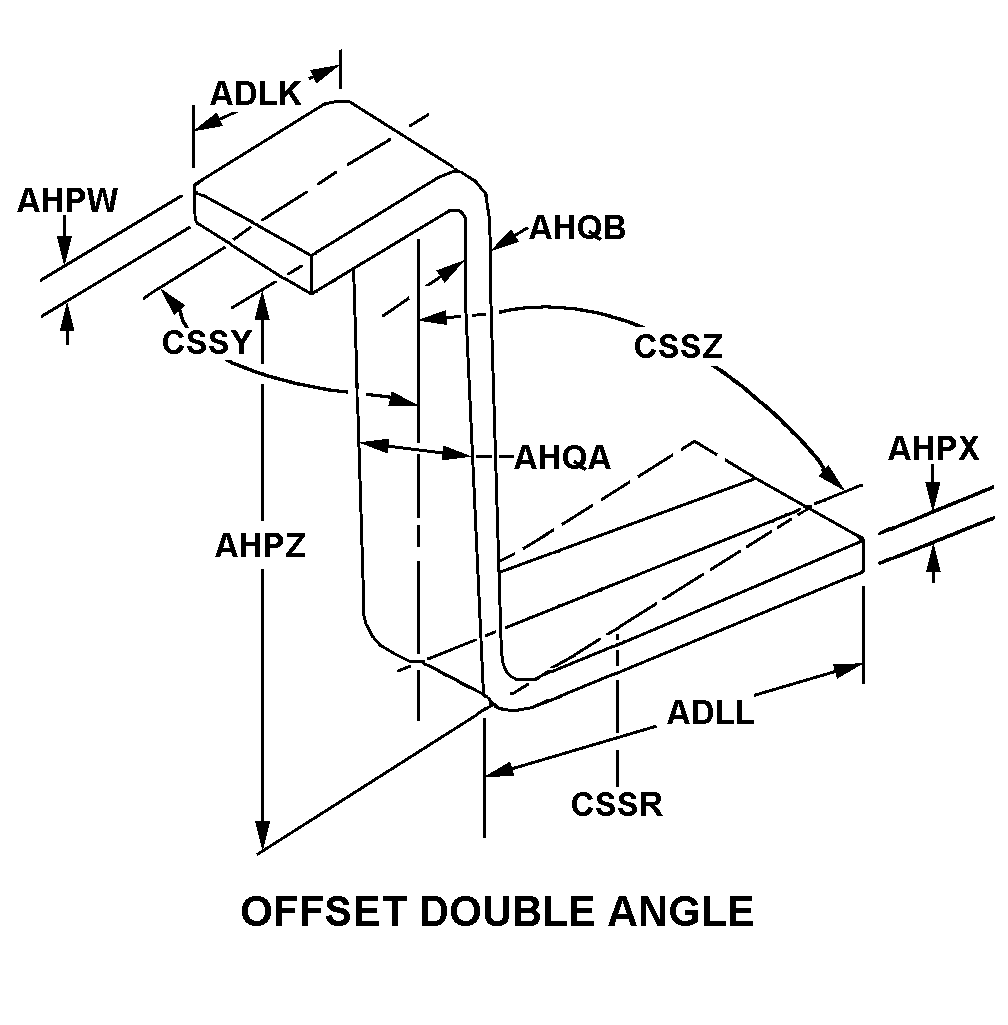

| STYLE DESIGNATOR | 12 OFFSET DOUBLE ANGLE |
| III SECOND LEG LENGTH | 0.953 INCHES MINIMUM AND 1.007 INCHES MAXIMUM |
| III FIRST LEG THICKNESS | 0.160 INCHES NOMINAL |
| III SECOND LEG THICKNESS | 0.160 INCHES NOMINAL |
| III CENTER SECTION THICKNESS | 0.160 INCHES NOMINAL |
| III SECOND LEG OFFSET ANGLE | 30.0 DEGREES NOMINAL |
| III FIRST LEG OFFSET ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | 102 END RADIUS |
| FIRST LEG WIDTH | 1.000 INCHES NOMINAL |
| FIRST LEG END RADIUS | 0.500 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 102 END RADIUS |
| SECOND LEG WIDTH | 0.620 INCHES NOMINAL |
| SECOND LEG END RADIUS | 0.310 INCHES NOMINAL |
| SECOND LEG HOLE ARRANGEMENT STYLE | 134 TWO HOLES |
| SECOND LEG HOLE DIAMETER | 0.264 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| SECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH | 0.995 INCHES MINIMUM AND 1.005 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.310 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.310 INCHES NOMINAL |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 68A450678-2003 |
Restrictions/Controls & Freight Information | NSN 5340-01-003-7386
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-003-7386
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | LE | SU:LANDING GEAR SYSTEMS AND COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
