NSN 5340-00-975-8199 S14300002100, 87025207, 8702520-7
Product Details | PAWL FASTENER
5340-00-975-8199 A self-contained item with a knob or a key actuated pawl, designed to fasten panels, doors, and the like, to frames or adjoining surfaces. The pawl may be preset to accommodate frames or surfaces of a specific thickness, or may be adjustable to accommodate frames or surfaces of variable thicknesses. For items with adjustable pawls, the pawl must be actuated through continual rotation of the knob or key until the pawl engages the adjoining surface.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance53400020Hardware, Commercial
Part Alternates: S14300002100, 87025207, 8702520-7, 431130, 43-1-13-0, 5340-00-975-8199, 00-975-8199, 5340009758199, 009758199
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-975-8199 | 28416 ( FASTENER, PAWL ) |

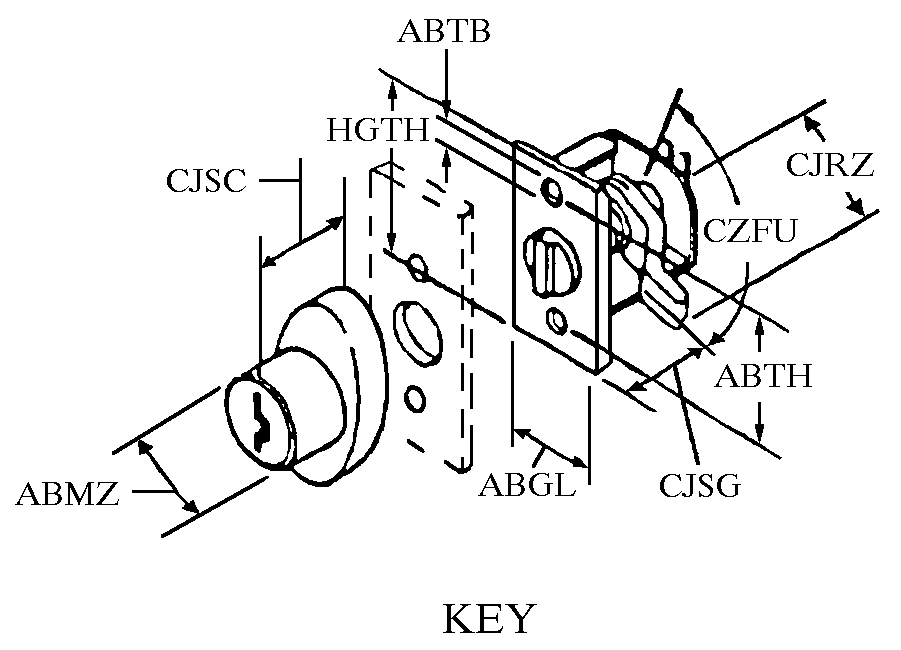

Drawings & Photos | NSN 5340-00-975-8199
Demand History | NSN 5340-00-975-8199
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 43-1-13-0 | 2023-10-275 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-975-8199
Related Products | NSN 5340-00-975-8199
Technical Data | NSN 5340-00-975-8199
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMATE AND ZINC OVERALL |
| STYLE DESIGNATOR | F4 KEY |
| WIDTH | 0.547 INCHES NOMINAL |
| DIAMETER | 0.344 INCHES NOMINAL |
| LENGTH | 1.469 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.812 INCHES NOMINAL |
| PAWL LENGTH FROM ACTUATING SHAFT CENTER TO PAWL END | 0.625 INCHES NOMINAL |
| KNOB LENGTH | 0.125 INCHES NOMINAL |
| MOUNTING PLATE TO PAWL DISTANCE | 0.125 INCHES MINIMUM AND 0.281 INCHES MAXIMUM |
| HEIGHT | 1.125 INCHES NOMINAL |
| PAWL SWING ANGLE | 45.0 DEGREES NOMINAL |
| PAWL TYPE | OFFSET |
| OPERATIONAL DIRECTION | RIGHT-HAND |
| PAWL ACTUATION METHOD | KEY |
| SPECIAL FEATURES | HOLE QUANTITY:2;SHAFT DIAMETER:0.625 IN. |
Restrictions/Controls & Freight Information | NSN 5340-00-975-8199
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
