NSN 5340-01-115-5599 48-10-401-10, 01-115-5599, 481040110
Product Details | PAWL FASTENER

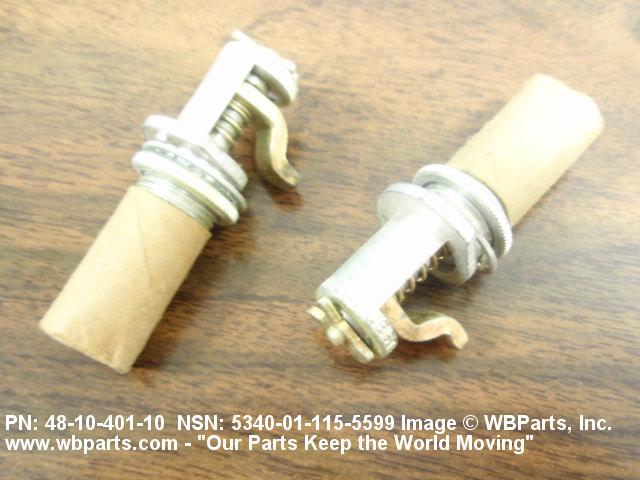

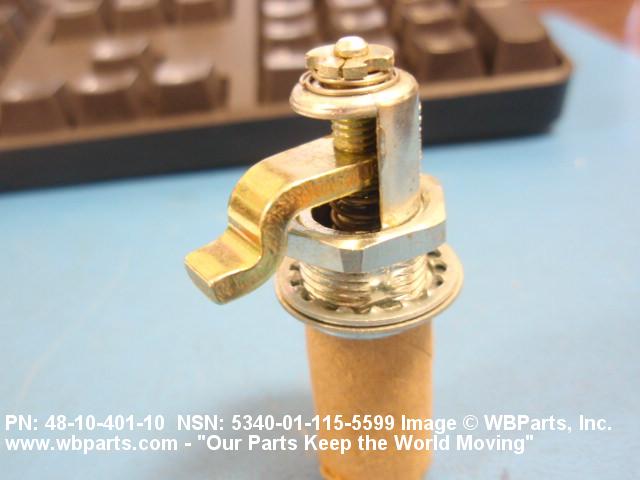

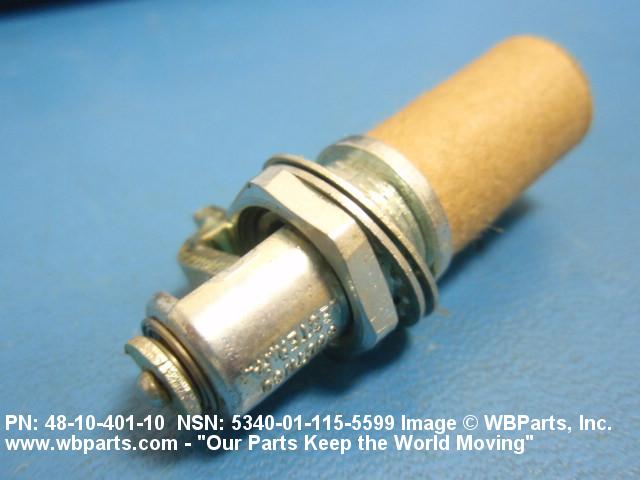

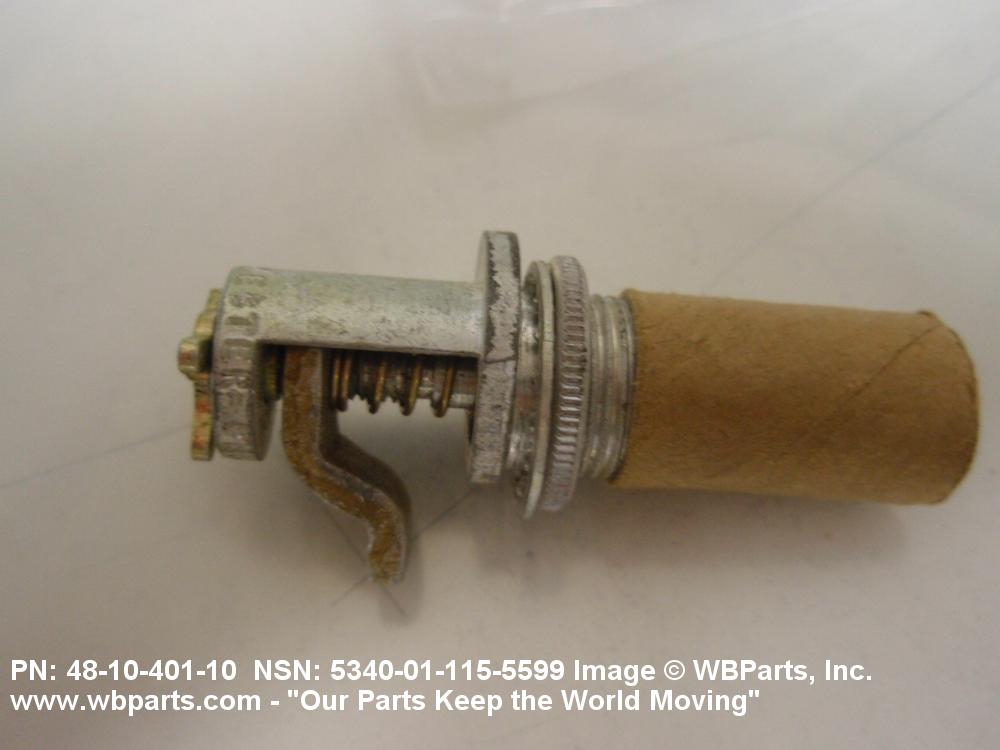

5340-01-115-5599 A self-contained item with a knob or a key actuated pawl, designed to fasten panels, doors, and the like, to frames or adjoining surfaces. The pawl may be preset to accommodate frames or surfaces of a specific thickness, or may be adjustable to accommodate frames or surfaces of variable thicknesses. For items with adjustable pawls, the pawl must be actuated through continual rotation of the knob or key until the pawl engages the adjoining surface.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance53400020Hardware, Commercial
Part Alternates: 48-10-401-10, 5340-01-115-5599, 01-115-5599, 5340011155599, 481040110, 011155599
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JUL 1981 | 01-115-5599 | 28416 ( FASTENER, PAWL ) |
Drawings & Photos | NSN 5340-01-115-5599
Demand History | NSN 5340-01-115-5599
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 48-10-401-10 | 2023-05-04 | 30 | DIBBS |
| 481040110 | 2011-01-28 | 50 | United States |
| 481040110 | 2011-01-25 | 12 | United States |
| 48-10-401-10 | 2010-09-01 | 50 | United States |
| 5340-01-115-5599 | 2010-06-14 | 10 | United States |
| 481040110 | 2010-05-19 | 56 | US |
Cross Reference | NSN 5340-01-115-5599
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 48-10-401-10 | 94222 | SOUTHCO, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-01-115-5599
Related Products | NSN 5340-01-115-5599
Technical Data | NSN 5340-01-115-5599
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC AND ZINC ALLOY AND STEEL CORROSION RESISTING AND STEEL OVERALL |
| SURFACE TREATMENT | ZINC AND ZINC AND CHROMATE OVERALL |
| DIAMETER | 0.500 INCHES NOMINAL |
| LENGTH | 1.609 INCHES NOMINAL |
| PAWL LENGTH FROM ACTUATING SHAFT CENTER TO PAWL END | 0.750 INCHES NOMINAL |
| KNOB LENGTH | 0.750 INCHES NOMINAL |
| MOUNTING PLATE TO PAWL DISTANCE | 0.094 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| PAWL TYPE | OFFSET |
| OPERATIONAL DIRECTION | RIGHT-HAND |
| PAWL ACTUATION METHOD | KNOB |
| MANUFACTURERS CODE | 94222 |
| DESIGN CONTROL REFERENCE | 48-10-401-10 |
Restrictions/Controls & Freight Information | NSN 5340-01-115-5599
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095760 | LOCKS/LOCK SETS NOI METAL IN BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
