NSN 5340-00-950-2664 1-130-256-02, 00-950-2664, 113025602
Product Details | SPACING THREADED STANDOFF
5340-00-950-2664 A standoff that must have a threaded end(s) or be internally threaded its full length. For items having external threads on both ends, see STUD (as modified). For items with an outside contour that is the same for the entire length, are flat on top and bottom, having internal threads its full length, and the length does not exceed twice the width across the flats or outside diameter, see NUT (as modified); use maximum dimensions(s) for compliance.
Part Alternates: 1-130-256-02, 5340-00-950-2664, 00-950-2664, 5340009502664, 113025602, 009502664
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 APR 1966 | 00-950-2664 | 40280 ( STANDOFF, THREADED, SPACING ) |
Drawings & Photos | NSN 5340-00-950-2664
Demand History | NSN 5340-00-950-2664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-950-2664 | 2015-11-327 | 32 | DIBBS |
| 5340-00-950-2664 | 2012-03-68 | 42 | DIBBS |
Cross Reference | NSN 5340-00-950-2664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-130-256-02 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-950-2664
Related Products | NSN 5340-00-950-2664
Technical Data | NSN 5340-00-950-2664
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE | ROUND |
| DIAMETER | 0.312 INCHES NOMINAL |

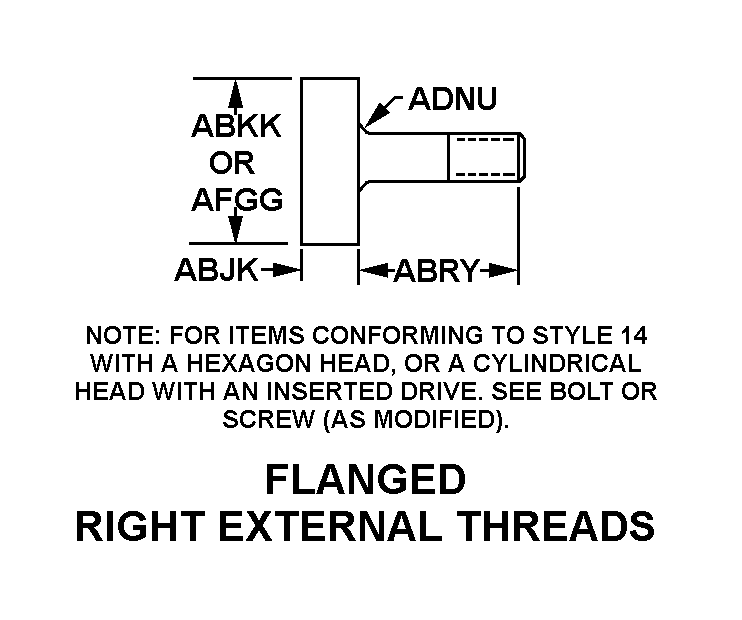

| STYLE DESIGNATOR | 14 FLANGED RIGHT EXTERNAL THREADS |
| GROOVE DIAMETER | 0.240 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| GROOVE WIDTH | 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.490 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.105 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| LENGTH | 1.790 INCHES NOMINAL |
| CORNER RADIUS | 0.010 INCHES MINIMUM AND 0.020 INCHES MAXIMUM |
| DISTANCE FROM END TO GROOVE | 0.105 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| (NON-CORE DATA) EXTERNAL THREAD LENGTH | 1.060 INCHES NOMINAL |
| (NON-CORE DATA) EXTERNAL THREAD CHARACTERISTICS | 5/16-24 UNF 3A RH |
| (NON-CORE DATA) MATERIAL | STEEL, AMS 5737 |
| MANUFACTURERS CODE | 99193 |
| DESIGN CONTROL REFERENCE | 1-130-256-02 |
Restrictions/Controls & Freight Information | NSN 5340-00-950-2664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-950-2664
