Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-947-4590 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 2469486, 5340-00-947-4590, 00-947-4590, 5340009474590, 009474590
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 MAR 1966 | 00-947-4590 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

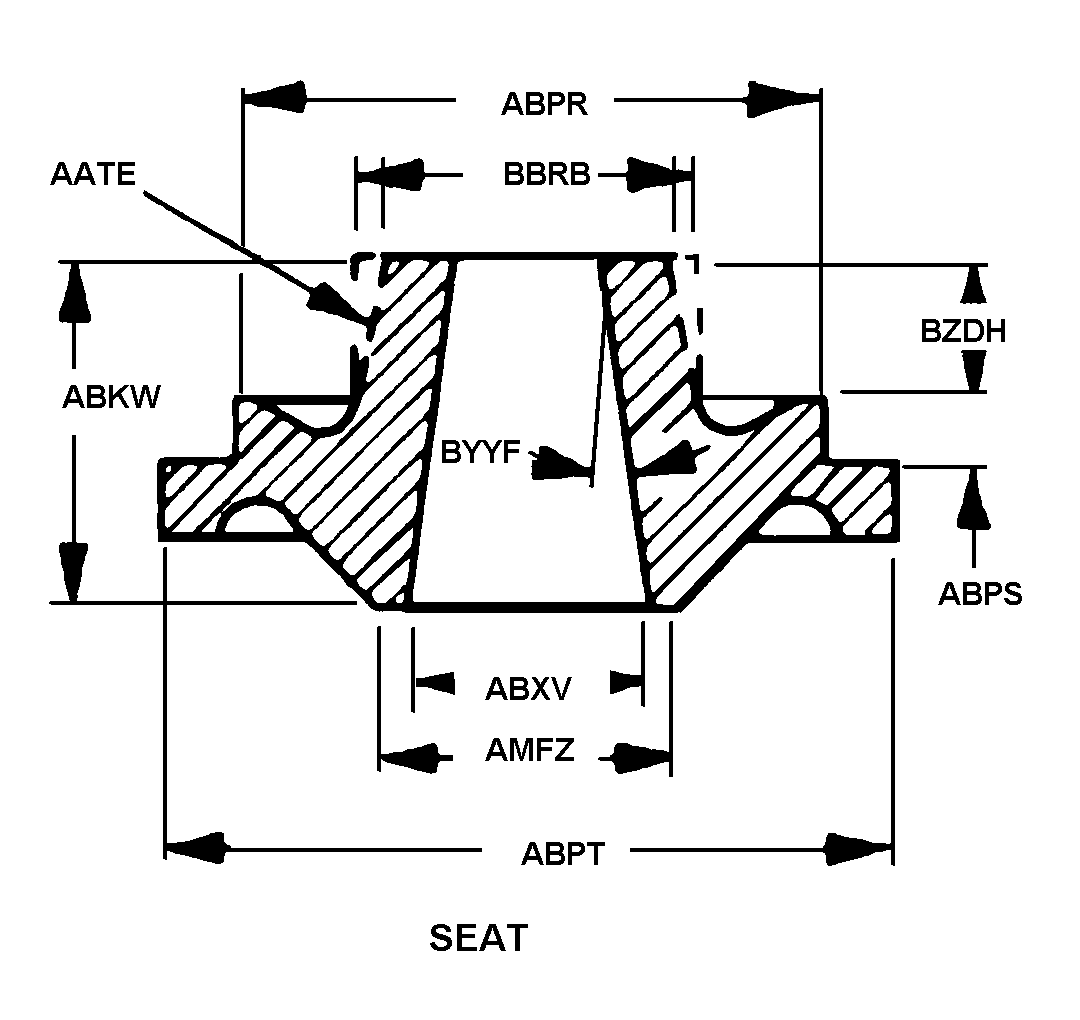

Drawings & Photos | NSN 5340-00-947-4590
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-947-4590
Related Products | NSN 5340-00-947-4590
Technical Data | NSN 5340-00-947-4590
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, CORROSION RESISTING |
| MATERIAL HARDNESS RATING | NOT RATED |
| STYLE DESIGNATOR | N13 SEAT |
| OVERALL HEIGHT | 0.5000 INCHES NOMINAL |
| END DIAMETER | 0.4310 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST STEP | 0.2810 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.0000 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.0620 INCHES NOMINAL |
| SECOND STEP DIAMETER | 1.2500 INCHES NOMINAL |
| SECOND END DIAMETER | 0.5940 INCHES NOMINAL |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| BORE TAPER IN DEG | 10.0 |
| CHAMFER ANGLE IN DEG | 10.0 |
| DESIGN TYPE | SOLID |
| SPECIAL FEATURES | NOT CASEHARDENED |
