NSN 5340-00-941-9421 1780542-21, 486, 00-941-9421
Product Details | DUST AND MOISTURE SEAL PROTECTIVE CAP
5340-00-941-9421 An item specifically designed to fit over the opening(s) of various items to provide mechanical protection and/or to prevent the entrance of foreign matter during painting, shipping, storage, or the like. It is not designed to retain fluids under pressure during equipment operation. Excludes COVER, ELECTRICAL CONNECTOR; HOOD, SEALING, BOTTLE; and STOPPER, BOTTLE. For items designed to fit into or over the opening(s) of various items, see CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: 1780542-21, 486, 5340-00-941-9421, 00-941-9421, 5340009419421, 178054221, 009419421
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 DEC 1965 | 00-941-9421 | 13432 ( CAP, PROTECTIVE, DUST AND MOISTURE SEAL ) |

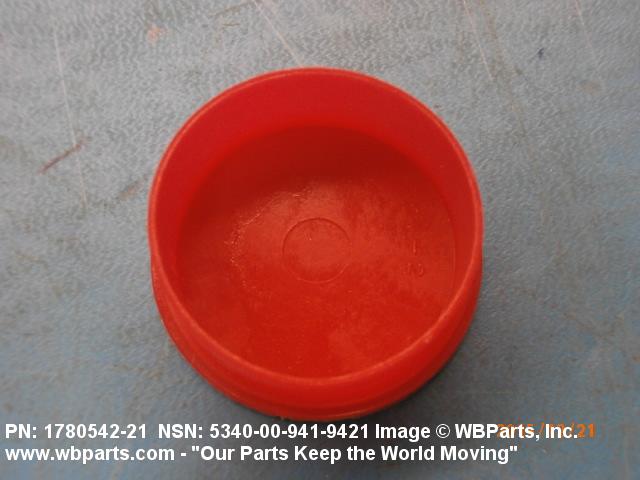

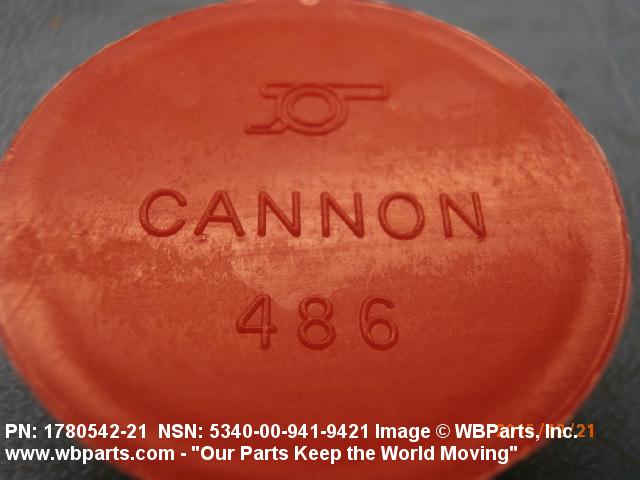

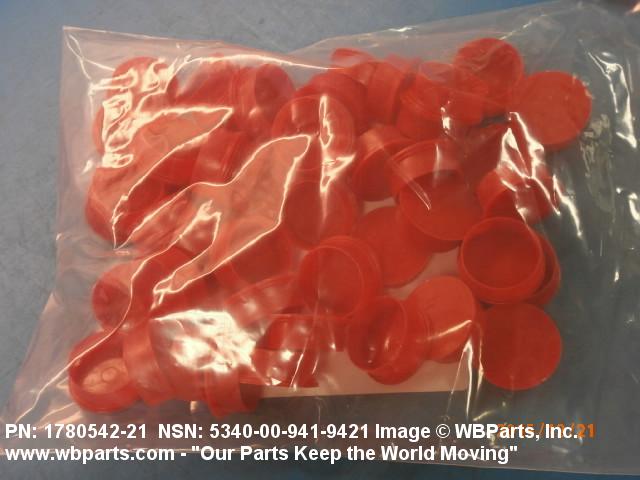

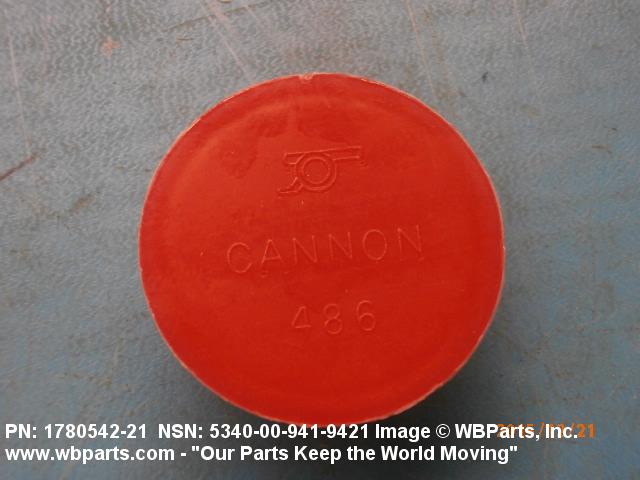

Drawings & Photos | NSN 5340-00-941-9421
Demand History | NSN 5340-00-941-9421
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1780542-21 | 2018-05-127 | 5 | United States |
| 5340-00-941-9421 | 2018-05-127 | 5 | MANUAL |
| 5340-00-941-9421 | 2017-05-142 | 160 | United States |
| 5340-00-941-9421 | 2015-12-350 | 50 | United States |
| 5340-00-941-9421 | 2015-09-271 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-941-9421
Technical Data | NSN 5340-00-941-9421
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC L-P-390 GRADE 1 |
| DESIGN TYPE | FRICTION |
| OPENING INSIDE DIAMETER FOR WHICH DESIGNED | 1.302 INCHES MINIMUM AND 1.307 INCHES MAXIMUM |

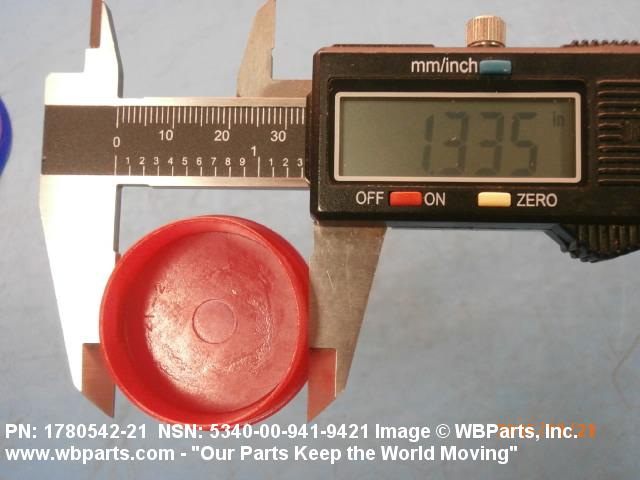

| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.334 INCHES NOMINAL |

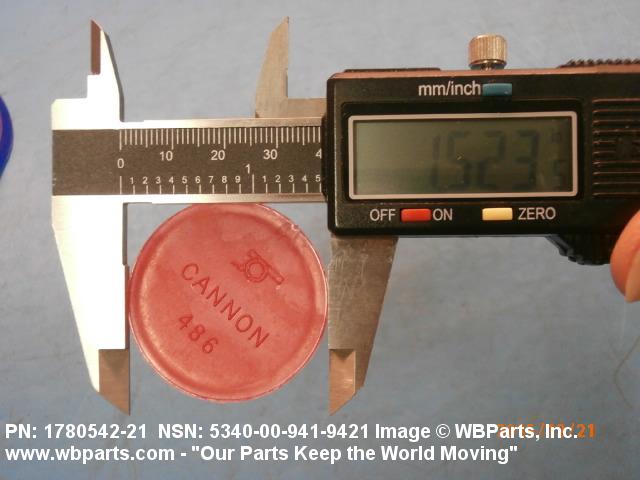

| OVERALL DIAMETER | 1.524 INCHES NOMINAL |

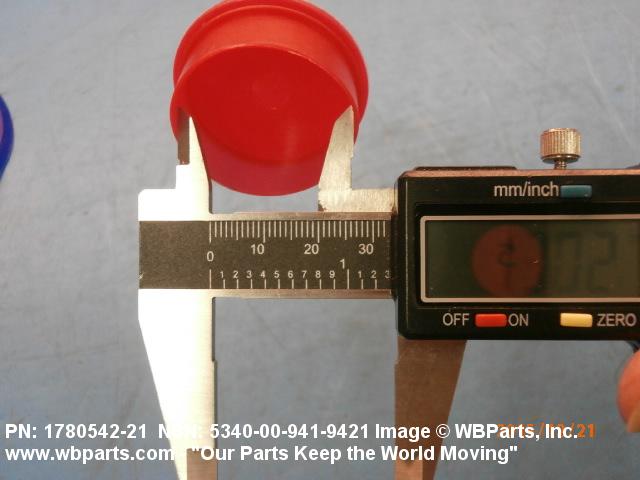

| INSIDE DIAMETER LENGTH | 0.544 INCHES NOMINAL |
| ROUND CAP OUTSIDE SURFACE CONDITION | SMOOTH |
Restrictions/Controls & Freight Information | NSN 5340-00-941-9421
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-941-9421
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
