NSN 5340-00-941-9650 528578, 00-941-9650, 009419650
Product Details | LOOP CLAMP
5340-00-941-9650 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: 528578, 5340-00-941-9650, 00-941-9650, 5340009419650, 009419650
Hardware and Abrasives | Hardware, Commercial
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 17 DEC 1965 | 00-941-9650 | 17532 ( CLAMP, LOOP ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-941-9650
Related Products | NSN 5340-00-941-9650
Technical Data | NSN 5340-00-941-9650
Characteristic | Specifications |
---|---|
MATERIAL | STEEL COMP 321 BAND |
MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5510 ASSN STD SINGLE MATERIAL RESPONSE BAND |
SURFACE TREATMENT | PASSIVATE BAND |

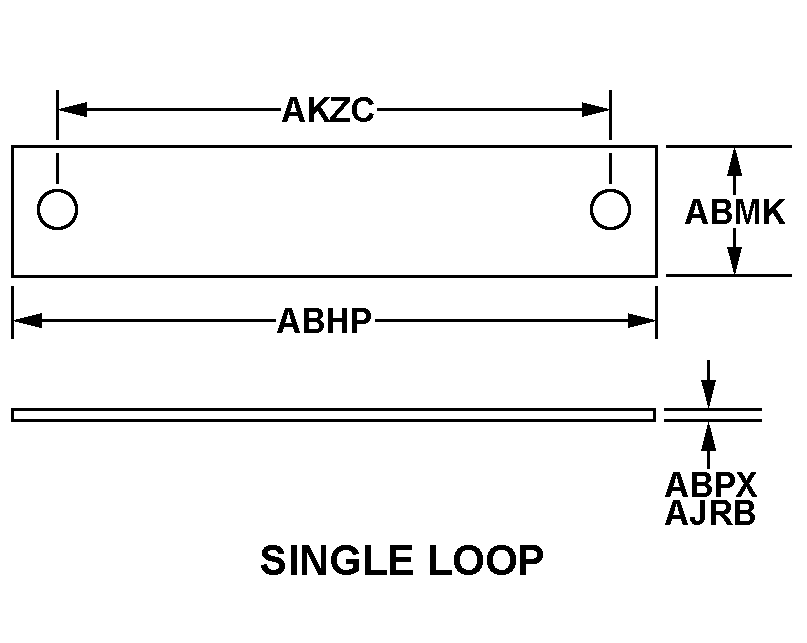

STYLE DESIGNATOR | A34 SINGLE LOOP |
OVERALL LENGTH | 2.612 INCHES NOMINAL |
OVERALL WIDTH | 0.500 INCHES NOMINAL |
MATERIAL THICKNESS | 0.283 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN FIRST AND SECOND HOLES | 2.112 INCHES NOMINAL |
TONGUE HOLE TYPE | ROUND, UNTHREADED |
DIAMETER | 0.219 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-941-9650
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 095190 | HARDWARE, NOI |
Less than car load rating | Q | 70 |
Less than truck load rating | W | Rating Variable |
Water commodity Code | 713 | unknown |
Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | ||
Air Special Handling | Z | No special handling required. |
Special Handling Code | Z | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
