NSN 5340-00-941-0205 517121, 00-941-0205, 009410205
Product Details | ROD END CLEVIS
5340-00-941-0205 A forked part, having transverse hole(s) or slot(s) in each arm (prong) to accommodate a bolt, pin, or the like, and having a connection facility opposite the fork. It is designed to be attached to a shaft, rod, turnbuckle or the like by welding, threading, and/or pinning. May include provisions for locking. See also YOKE, UNIVERSAL JOINT and CONNECTOR, ROD END. For items specifically designed for aviation, see CLEVIS, ROD END, AVIATION.20210050018Guns, through 30mm53400020Hardware, Commercial
Part Alternates: 517121, 5340-00-941-0205, 00-941-0205, 5340009410205, 009410205
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 DEC 1965 | 00-941-0205 | 03796 ( CLEVIS, ROD END ) |

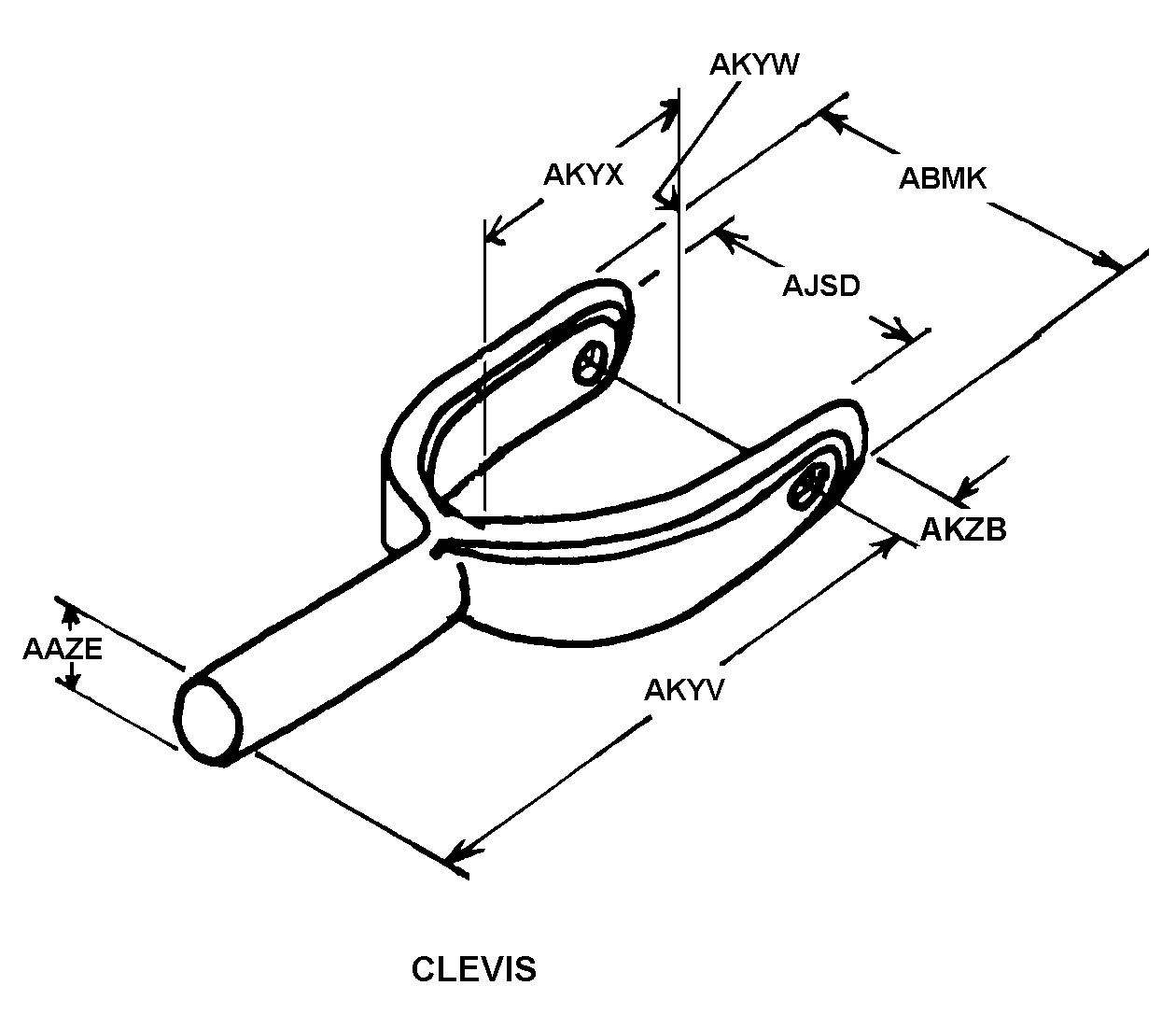

Drawings & Photos | NSN 5340-00-941-0205
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-941-0205
Technical Data | NSN 5340-00-941-0205
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5613 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| METALLIC HARDNESS RATING | 25.0 MINIMUM ROCKWELL C AND 33.0 MAXIMUM ROCKWELL C |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.250 INCHES ROD CONNECTION |
| THREAD CLASS | 3B ROD CONNECTION |
| THREAD DIRECTION | RIGHT-HAND ROD CONNECTION |
| THREAD LENGTH | 0.800 INCHES NOMINAL ROD CONNECTION |
| STYLE DESIGNATOR | 4 CLEVIS |
| SHANK DIAMETER | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| OVERALL WIDTH | 0.540 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| END RADIUS | 0.185 INCHES MINIMUM AND 0.195 INCHES MAXIMUM |
| FORK SPAN WIDTH | 0.345 INCHES MINIMUM AND 0.347 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO ROD CONNECTION END | 2.190 INCHES MINIMUM AND 2.210 INCHES MAXIMUM |
| FORK ARM THICKNESS | 0.156 INCHES NOMINAL |
| FORK DEPTH | 1.090 INCHES MINIMUM AND 1.110 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PINHOLE CENTER TO FORK END | 0.205 INCHES NOMINAL |
| SECURING PIN HOLE DIAMETER | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF SECURING PIN HOLE TO ROD END | 0.280 INCHES NOMINAL |
| HOLE DIAMETER | 0.251 INCHES MINIMUM AND 0.253 INCHES MAXIMUM |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 517121 |
Restrictions/Controls & Freight Information | NSN 5340-00-941-0205
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094140 | CLEVISES IRON/STEEL |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-941-0205
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
