Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-940-9954 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 480424, 5340-00-940-9954, 00-940-9954, 5340009409954, 009409954
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 DEC 1965 | 00-940-9954 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

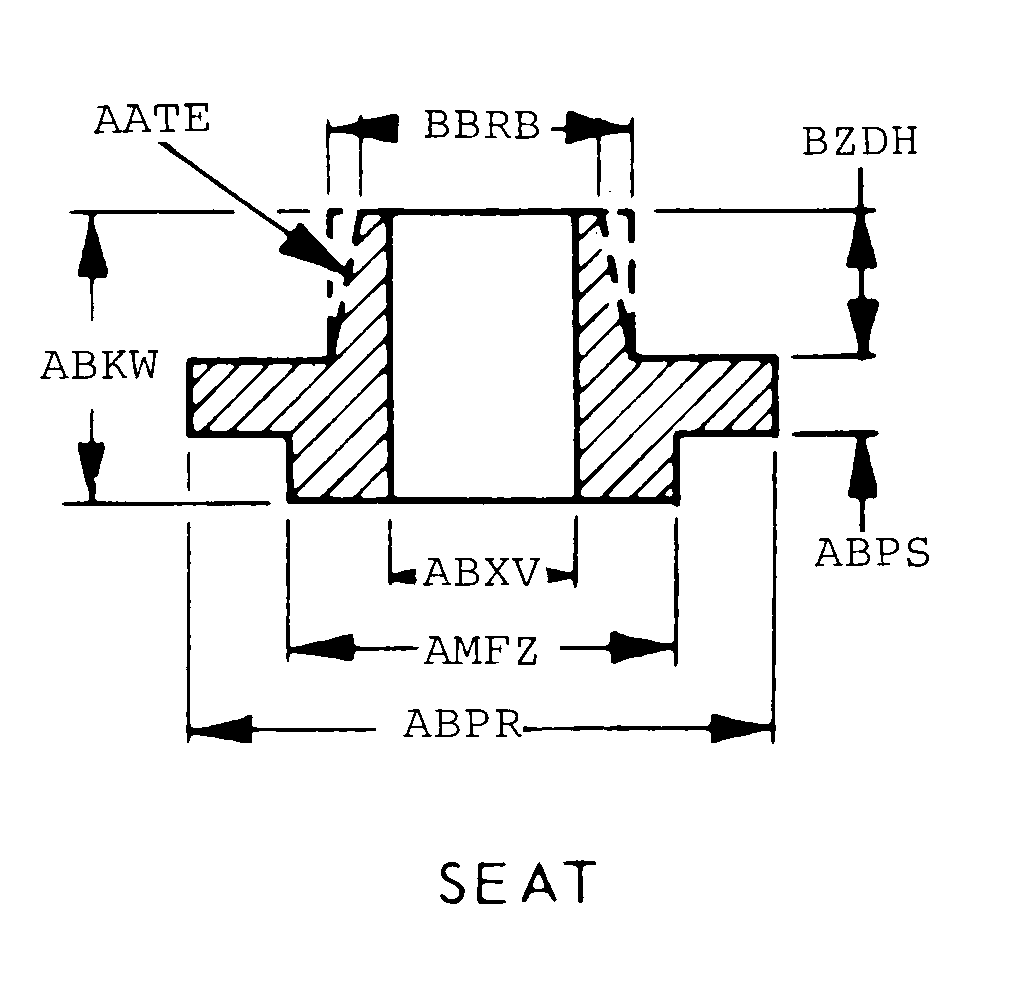

Drawings & Photos | NSN 5340-00-940-9954
Demand History | NSN 5340-00-940-9954
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-940-9954 | 2017-02-26 | 16 | US |
Cross Reference | NSN 5340-00-940-9954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 480424 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-940-9954
Technical Data | NSN 5340-00-940-9954
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL HARDNESS RATING | NOT RATED |
| STYLE DESIGNATOR | N2 SEAT |
| OVERALL HEIGHT | 0.6300 INCHES MINIMUM AND 0.6700 INCHES MAXIMUM |
| END DIAMETER | 0.4800 INCHES MINIMUM AND 0.4900 INCHES MAXIMUM |
| DISTANCE FROM END TO FIRST STEP | 0.3100 INCHES MINIMUM AND 0.3300 INCHES MAXIMUM |
| FIRST STEP DIAMETER | 0.8200 INCHES MINIMUM AND 0.8400 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.0400 INCHES MINIMUM AND 0.0600 INCHES MAXIMUM |
| SECOND END DIAMETER | 0.5900 INCHES MINIMUM AND 0.6100 INCHES MAXIMUM |
| BORE DIAMETER | 0.3670 INCHES MINIMUM AND 0.3710 INCHES MAXIMUM |
| DESIGN TYPE | SOLID |
| SPECIAL FEATURES | NOT CASEHARDENED |
| III FSC APPLICATION DATA | ENGINE,FUEL SYSTEM,ACFT |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 480424 |
