Product Details | PAWL FASTENER
5340-00-932-8125 A self-contained item with a knob or a key actuated pawl, designed to fasten panels, doors, and the like, to frames or adjoining surfaces. The pawl may be preset to accommodate frames or surfaces of a specific thickness, or may be adjustable to accommodate frames or surfaces of variable thicknesses. For items with adjustable pawls, the pawl must be actuated through continual rotation of the knob or key until the pawl engages the adjoining surface.20311900057Specialized Test and Handling Equipment, Nuclear Ordnance53400020Hardware, Commercial
Part Alternates: 65L11R1AB, 65L1-1R1AB, 5340-00-932-8125, 00-932-8125, 5340009328125, 009328125
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 FEB 1967 | 00-932-8125 | 28416 ( FASTENER, PAWL ) |

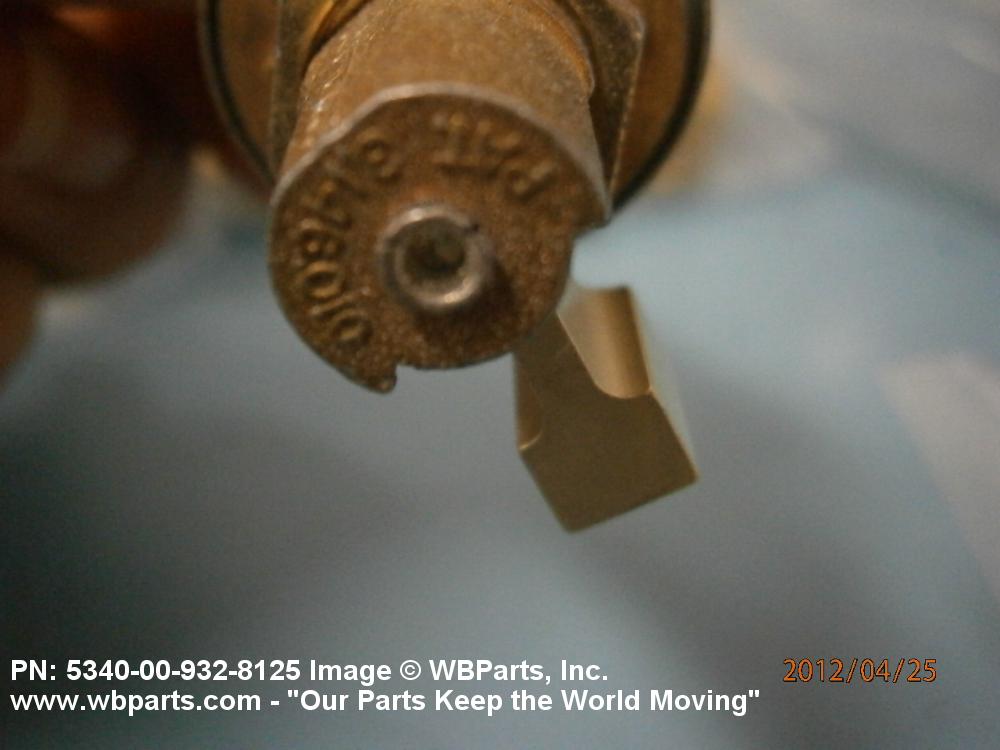

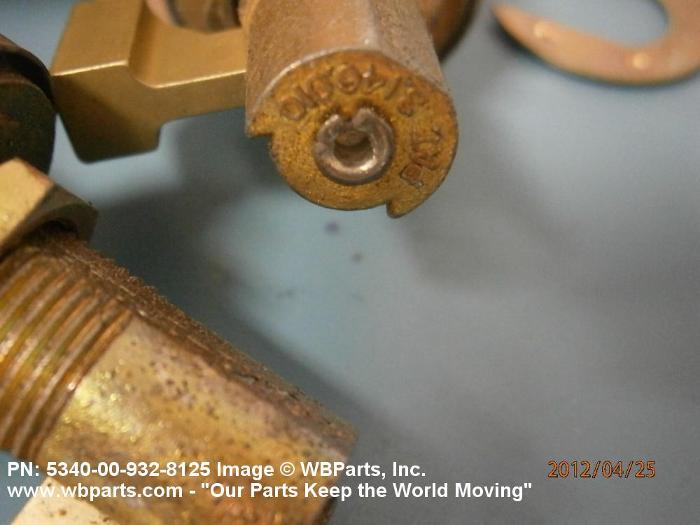

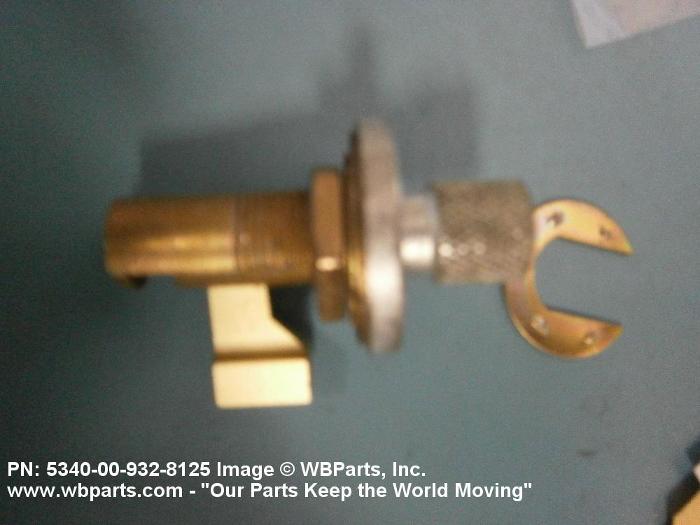

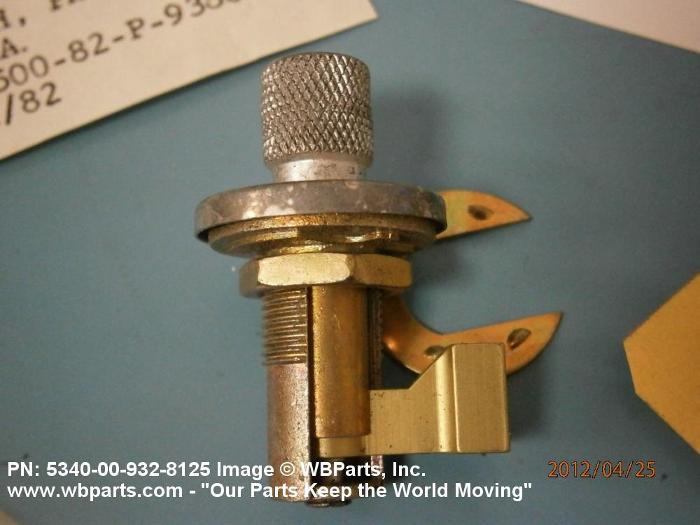

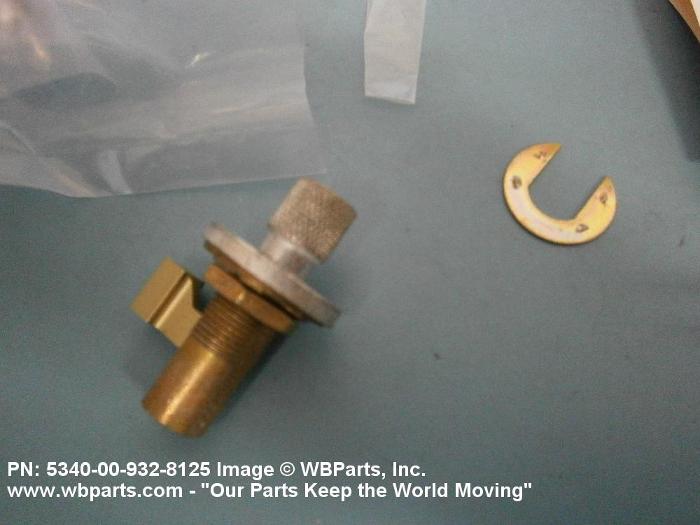

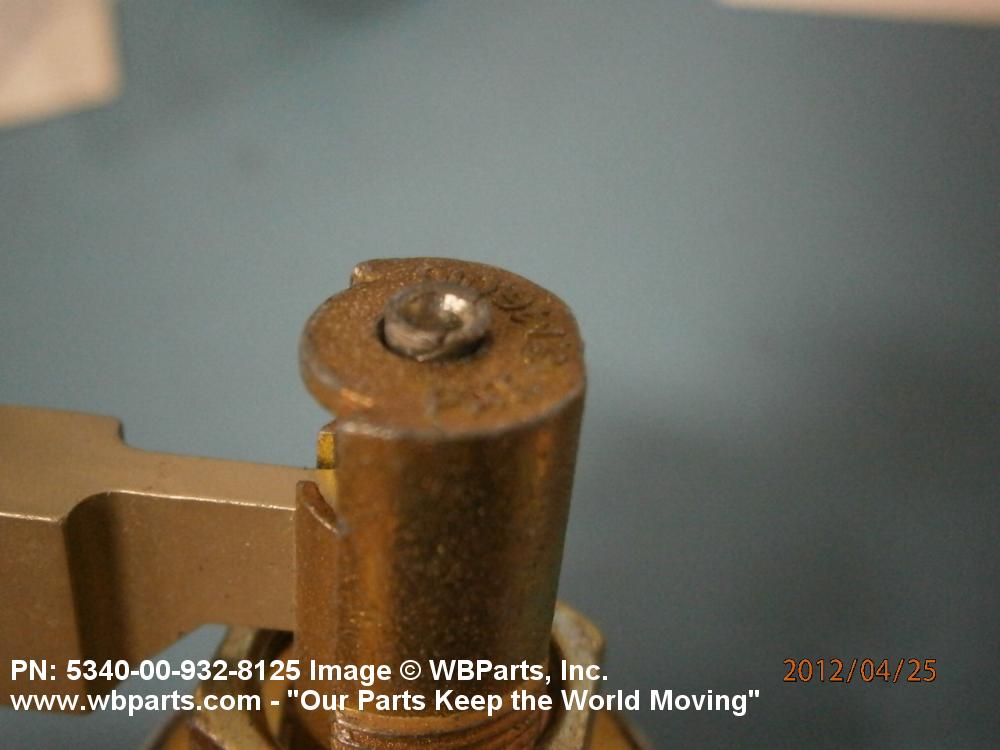

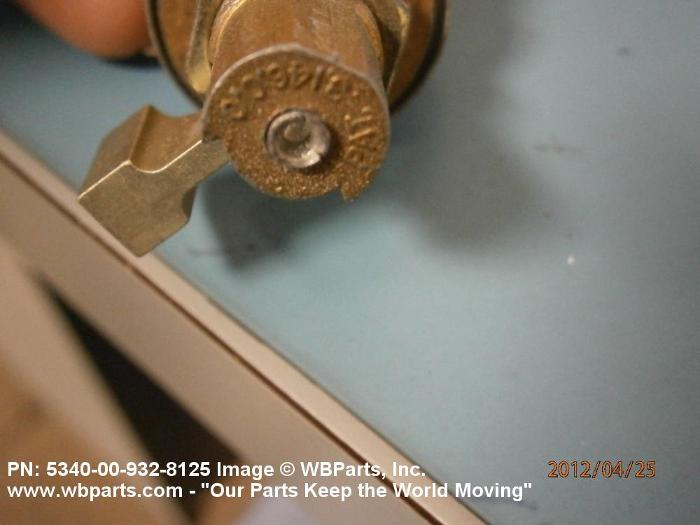

Drawings & Photos | NSN 5340-00-932-8125
Demand History | NSN 5340-00-932-8125
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-932-8125 | 2012-04-110 | 10 | United States |
Cross Reference | NSN 5340-00-932-8125
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65L1-1R1AB | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-932-8125
Related Products | NSN 5340-00-932-8125
Technical Data | NSN 5340-00-932-8125
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM AND PLASTIC AND STEEL AND STEEL CORROSION RESISTING AND ZINC ALLOY OVERALL |
| SURFACE TREATMENT | ANODIZE AND CADMIUM AND CHROMATE AND PASSIVATE OVERALL |
| STYLE DESIGNATOR | F2 KNURLED |
| WIDTH | 0.900 INCHES NOMINAL |
| DIAMETER | 0.460 INCHES NOMINAL |
| LENGTH | 1.030 INCHES NOMINAL |
| PAWL LENGTH FROM ACTUATING SHAFT CENTER TO PAWL END | 0.668 INCHES NOMINAL |
| MOUNTING PLATE TO PAWL DISTANCE | 1.030 INCHES NOMINAL |
| DUAL KNOB LENGTH | 0.660 INCHES NOMINAL |
| INNER KNOB DIAMETER | 0.460 INCHES NOMINAL |
| HEIGHT | 0.900 INCHES NOMINAL |
| PAWL SWING ANGLE | 90.0 DEGREES NOMINAL |
| PAWL TYPE | STRAIGHT |
| OPERATIONAL DIRECTION | LEFT-HAND OR RIGHT-HAND |
| PAWL ACTUATION METHOD | KNOB |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 65L1-1R1AB |
