NSN 5340-00-929-2303 12C61811, 12C618-11, 00-929-2303
Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-929-2303 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 12C61811, 12C618-11, 5340-00-929-2303, 00-929-2303, 5340009292303, 009292303
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 AUG 1966 | 00-929-2303 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

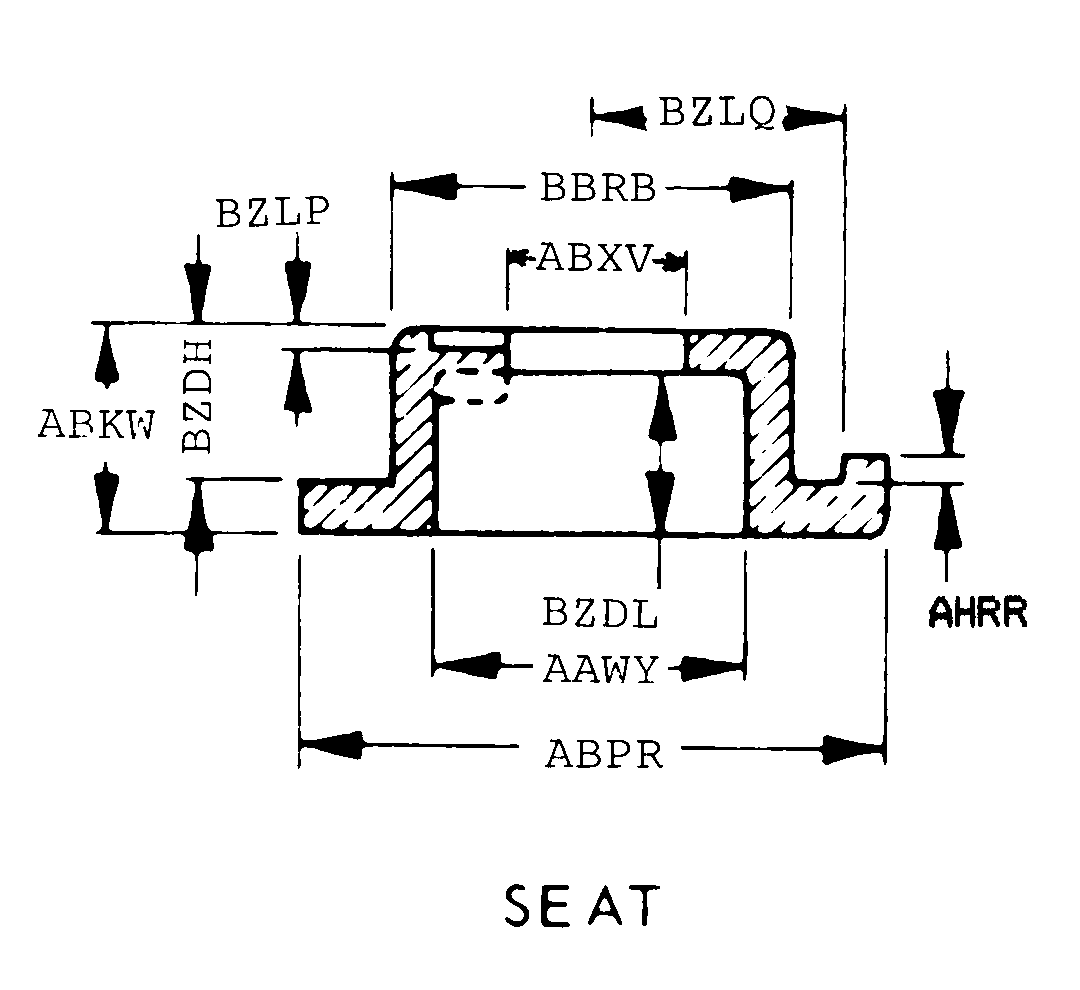

Drawings & Photos | NSN 5340-00-929-2303
Cross Reference | NSN 5340-00-929-2303
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12C618-11 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-929-2303
Technical Data | NSN 5340-00-929-2303
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL HARDNESS RATING | NOT RATED |
| SURFACE TREATMENT | ANODIZED |
| STYLE DESIGNATOR | N9 SEAT |
| OVERALL HEIGHT | 0.3600 INCHES NOMINAL |
| END DIAMETER | 0.9500 INCHES NOMINAL |
| DISTANCE FROM END TO FIRST STEP | 0.3000 INCHES NOMINAL |
| FIRST STEP DIAMETER | 1.3130 INCHES NOMINAL |
| BORE DIAMETER | 0.3750 INCHES NOMINAL |
| DESIGN TYPE | SOLID |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 12C618-11 |
Restrictions/Controls & Freight Information | NSN 5340-00-929-2303
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
