Product Details | THREADED ROD END

5340-00-906-2930 A cylindrical item, tubular or solid on one end and internally or externally threaded on the other. It is designed to be permanently attached to the end of a tube or rod to provide a threaded connection for installing a threaded clevis, connector or the like.

Part Alternates: 272D8061108, 540C037, 5340-00-906-2930, 00-906-2930, 5340009062930, 009062930

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1960 00-906-2930

Drawings & Photos | NSN 5340-00-906-2930


Cross Reference | NSN 5340-00-906-2930

Part Number Cage Code Manufacturer
272D8061108 38597 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
540C037 81755 LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-906-2930

Technical Data | NSN 5340-00-906-2930

Characteristic Specifications
MATERIAL STEEL COMP 4130 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
THREAD SERIES DESIGNATOR UNF ROD CONNECTION
NOMINAL THREAD SIZE 0.875 INCHES ROD CONNECTION
THREAD CLASS 3B OVERALL
THREAD DIRECTION RIGHT-HAND OVERALL
THREAD LENGTH 2.000 INCHES NOMINAL ROD CONNECTION

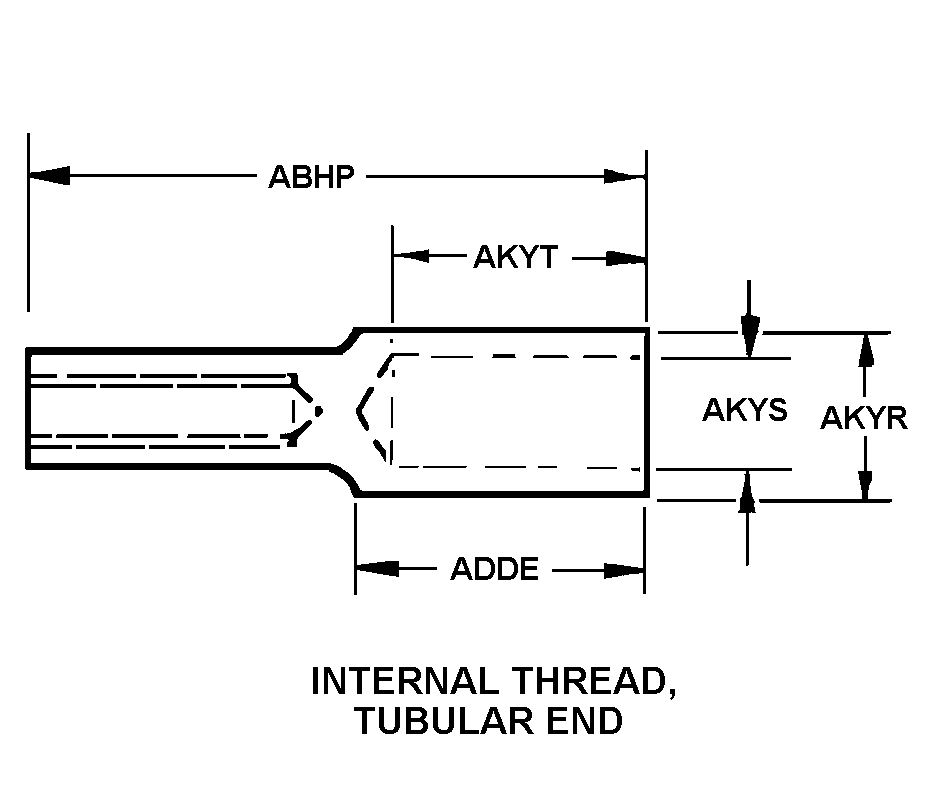

STYLE DESIGNATOR 105 INTERNAL THREAD, TUBULAR END
OVERALL LENGTH 3.500 INCHES NOMINAL
UNTHREADED END OUTSIDE DIAMETER 1.244 INCHES MINIMUM AND 1.246 INCHES MAXIMUM
UNTHREADED END INSIDE DIAMETER 0.938 INCHES NOMINAL
UNTHREADED END DEPTH 1.500 INCHES NOMINAL
MANUFACTURERS CODE 81755
DESIGN CONTROL REFERENCE 540C037
