NSN 5340-00-093-8830 AN490HT15, 00-093-8830, 000938830
Product Details | THREADED ROD END
5340-00-093-8830 A cylindrical item, tubular or solid on one end and internally or externally threaded on the other. It is designed to be permanently attached to the end of a tube or rod to provide a threaded connection for installing a threaded clevis, connector or the like.
Part Alternates: AN490HT15, 5340-00-093-8830, 00-093-8830, 5340000938830, 000938830
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-093-8830 | 30474 ( ROD END, THREADED ) |

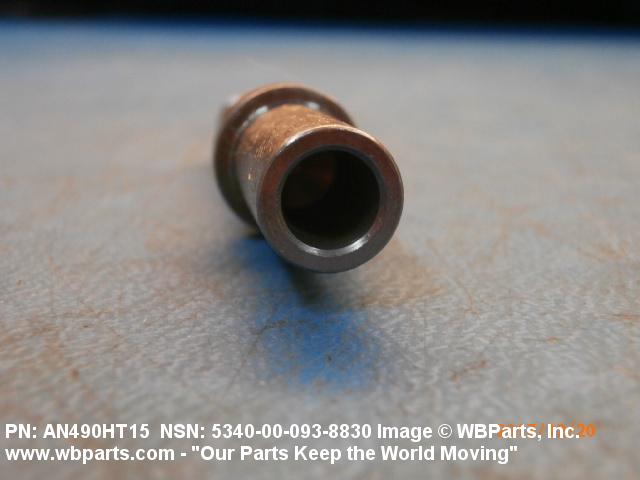

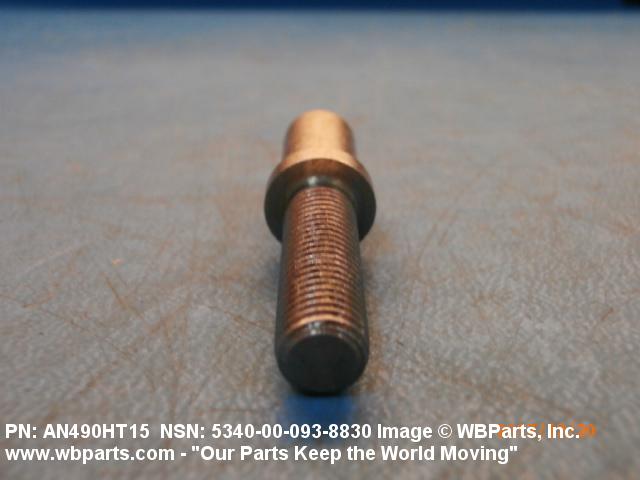

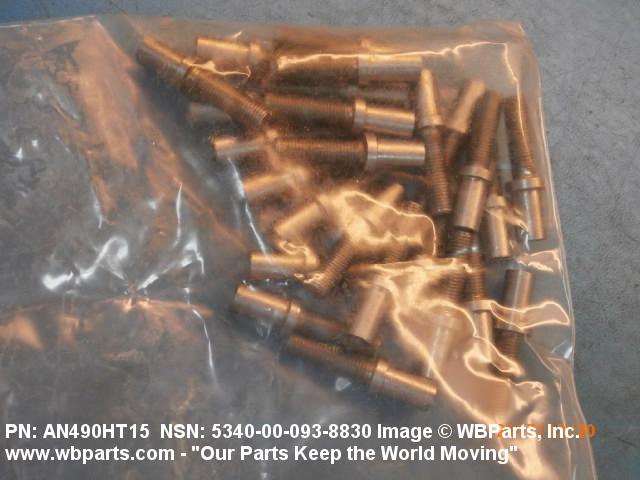

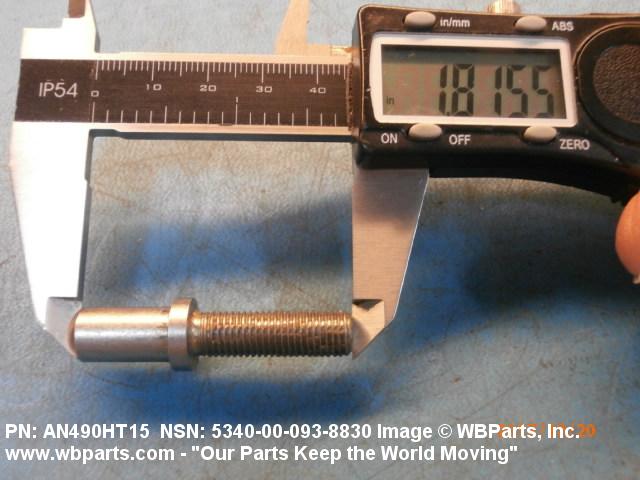

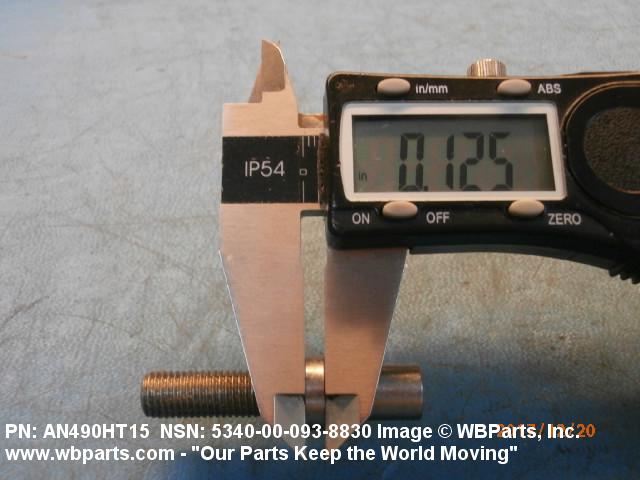

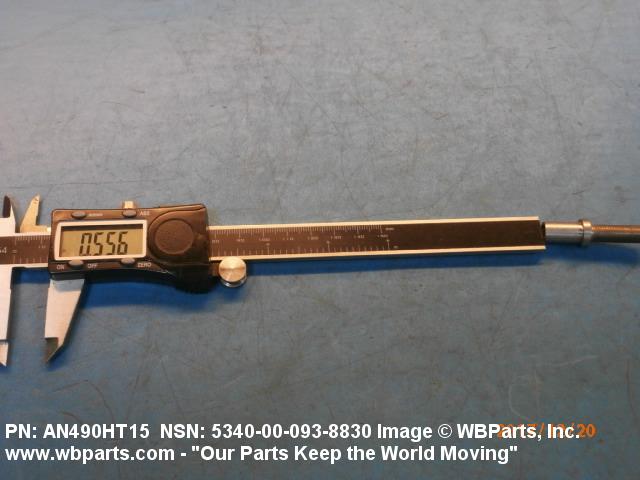

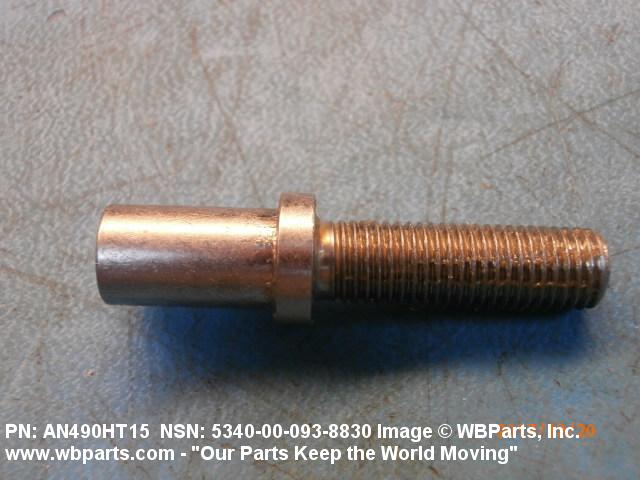

Drawings & Photos | NSN 5340-00-093-8830
Demand History | NSN 5340-00-093-8830
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-093-8830 | 2017-10-284 | 24 | United States |
Cross Reference | NSN 5340-00-093-8830
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN490HT15 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-093-8830
Technical Data | NSN 5340-00-093-8830
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| METALLIC HARDNESS RATING | 25.0 MINIMUM ROCKWELL C AND 30.0 MAXIMUM ROCKWELL C |
| THREAD SERIES DESIGNATOR | UNF ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.312 INCHES ROD CONNECTION |
| THREAD CLASS | 3A OVERALL |
| THREAD DIRECTION | RIGHT-HAND OVERALL |

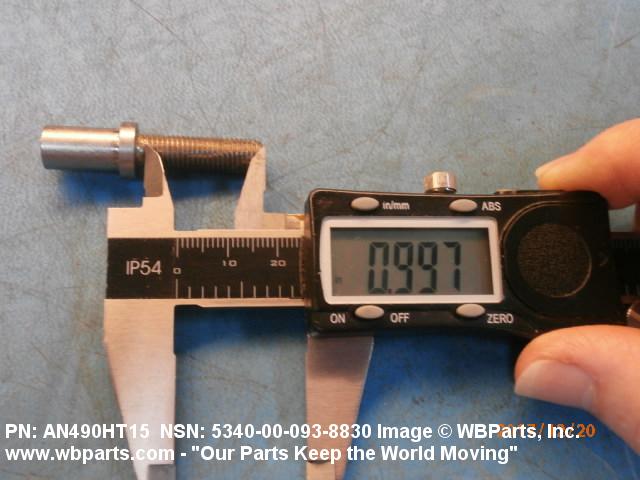

| THREAD LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM ROD CONNECTION |

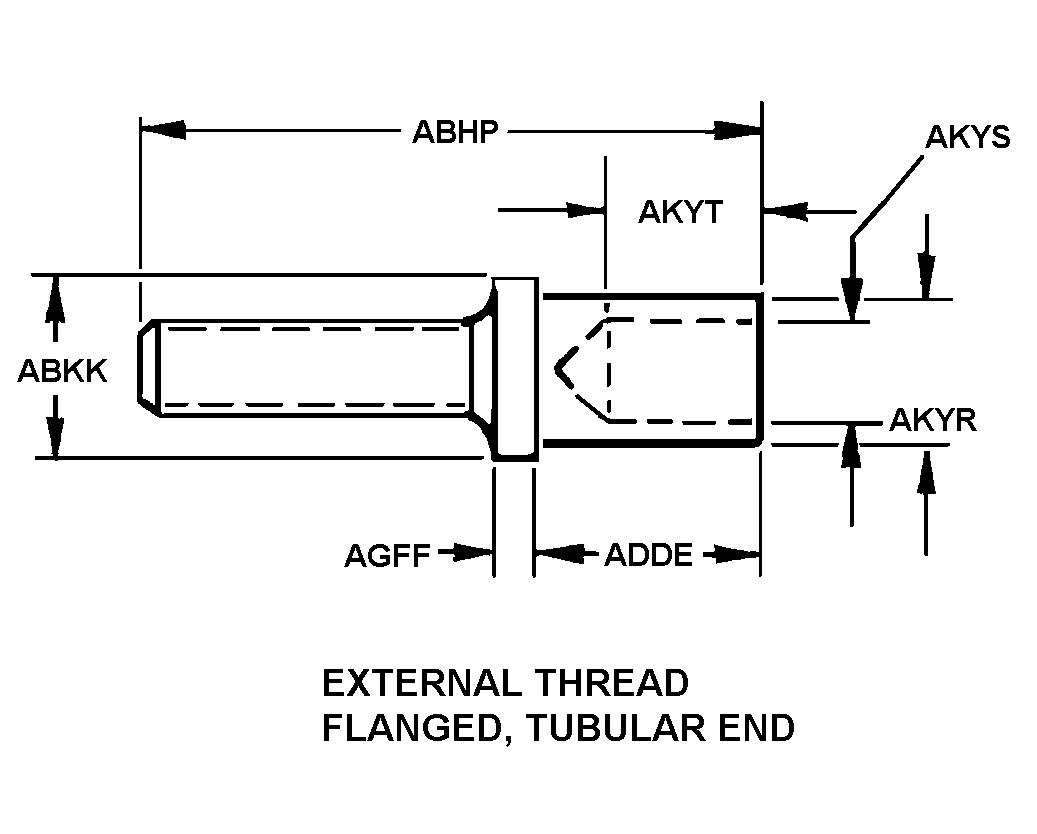

| STYLE DESIGNATOR | 101 EXTERNAL THREAD, FLANGED, TUBULAR END |
| OVERALL LENGTH | 1.802 INCHES MINIMUM AND 1.822 INCHES MAXIMUM |

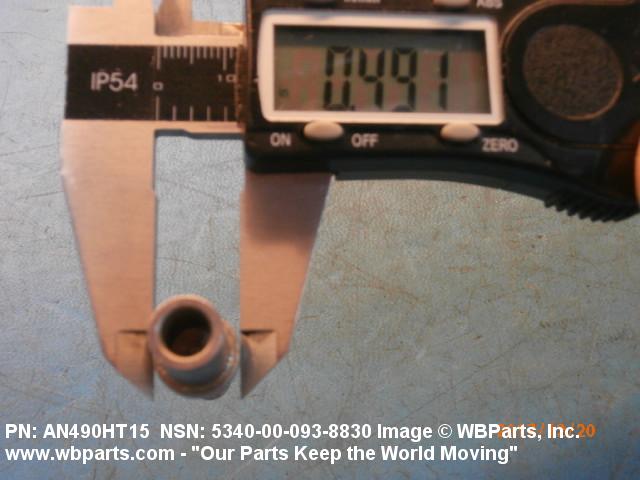

| FLANGE DIAMETER | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |

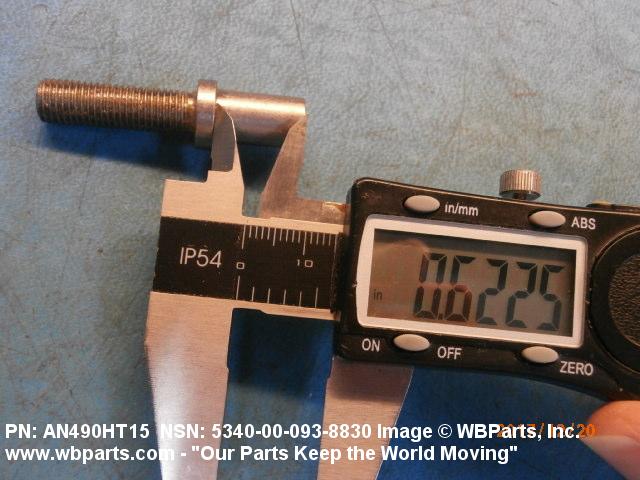

| UNTHREADED END LENGTH | 0.624 INCHES NOMINAL |
| FLANGE WIDTH | 0.116 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |

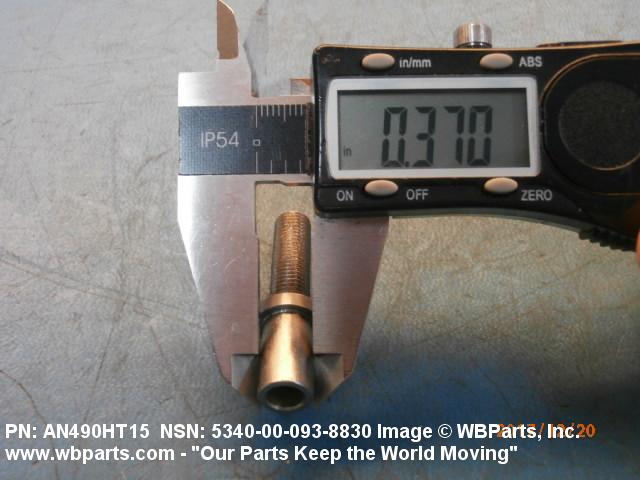

| UNTHREADED END OUTSIDE DIAMETER | 0.370 INCHES MINIMUM AND 0.372 INCHES MAXIMUM |

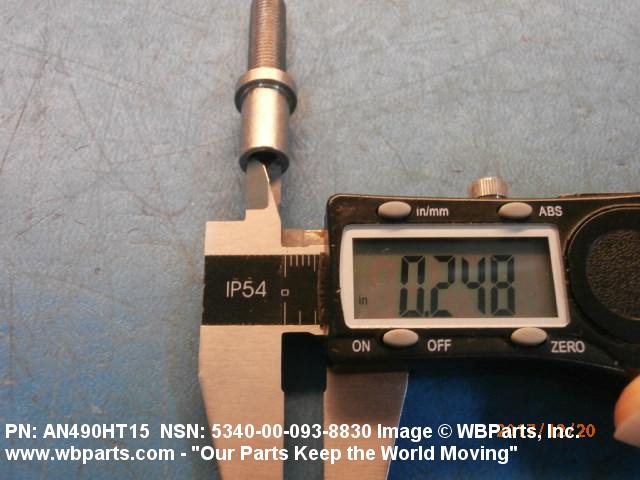

| UNTHREADED END INSIDE DIAMETER | 0.234 INCHES MINIMUM AND 0.266 INCHES MAXIMUM |
| UNTHREADED END DEPTH | 0.549 INCHES MINIMUM AND 0.579 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN490HT15 |
Restrictions/Controls & Freight Information | NSN 5340-00-093-8830
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
