NSN 5340-00-893-6728 NAS5786A, NAS578-6A, 10117494
Product Details | NUT AND BOLT RETAINER
5340-00-893-6728 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Part Alternates: NAS5786A, NAS578-6A, 10117494 , 2577064RET, 2577-064RET, 5340-00-893-6728, 00-893-6728, 5340008936728, 008936728
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-893-6728 | 16010 ( RETAINER, NUT AND BOLT ) |

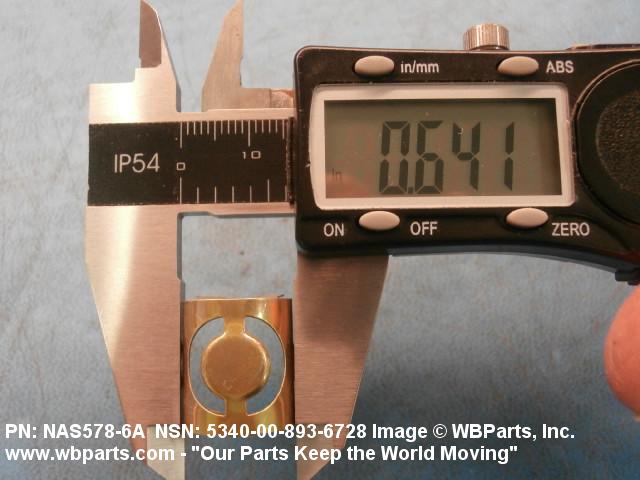

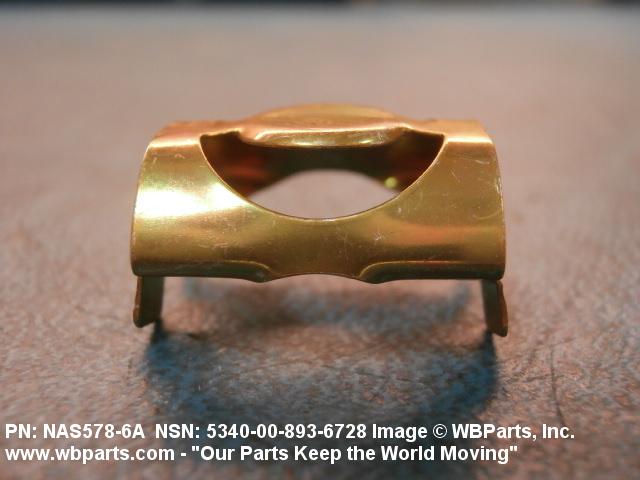

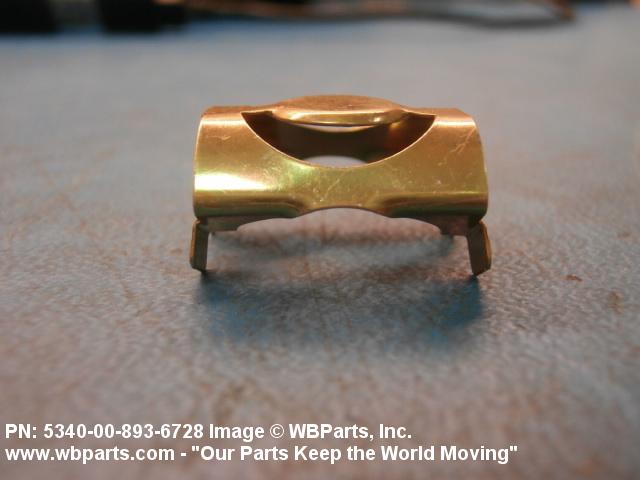

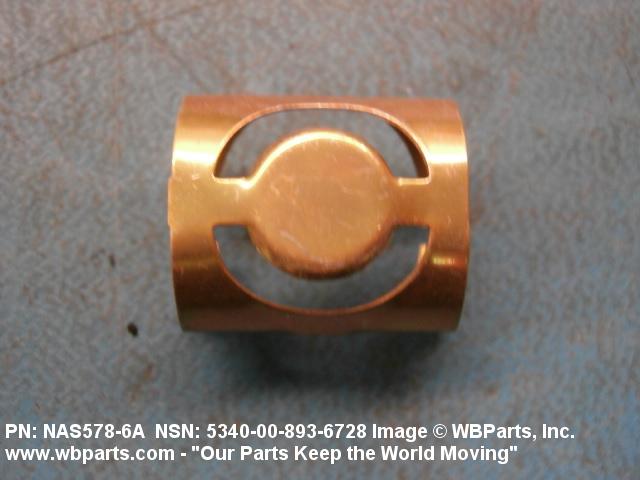

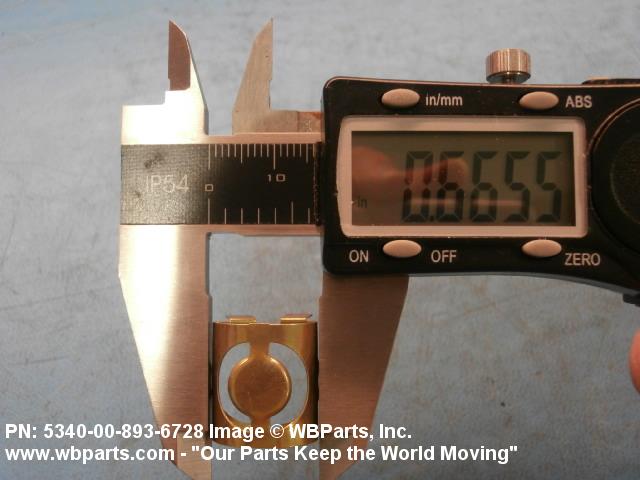

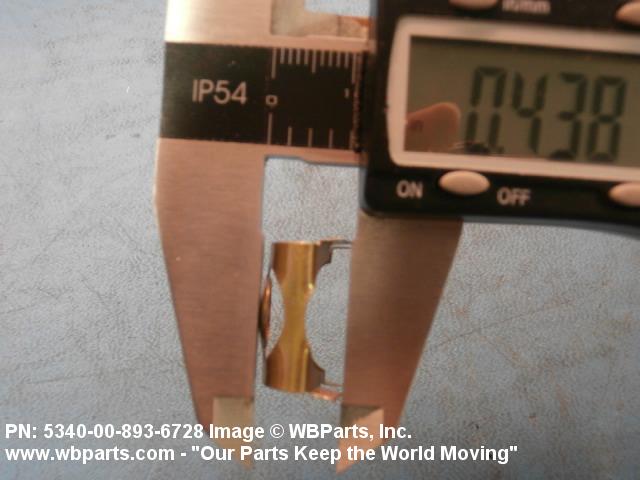

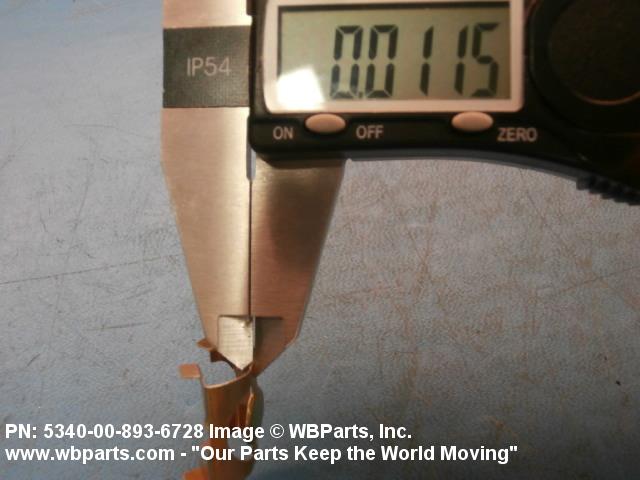

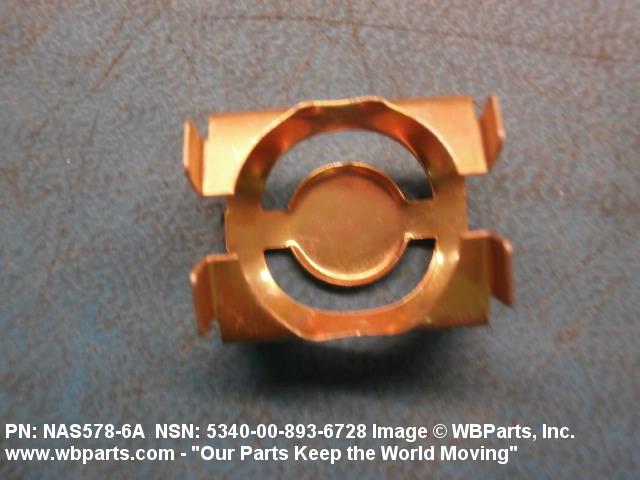

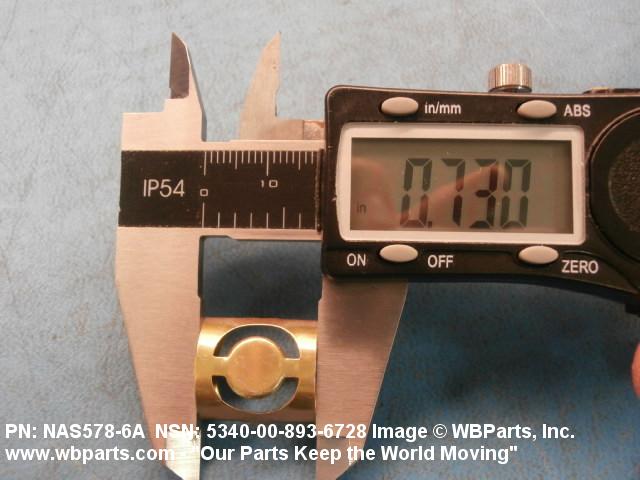

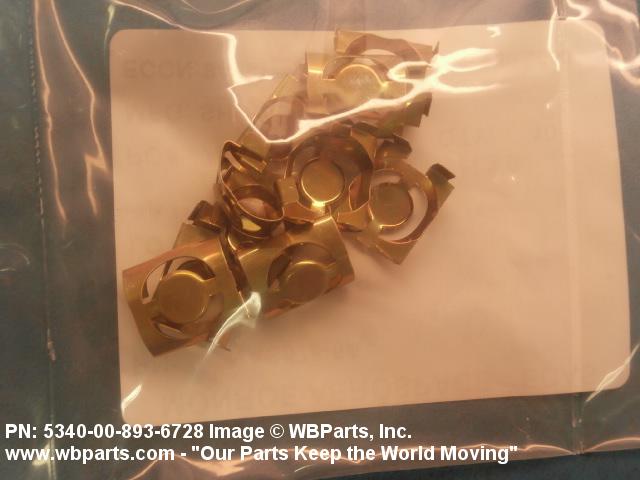

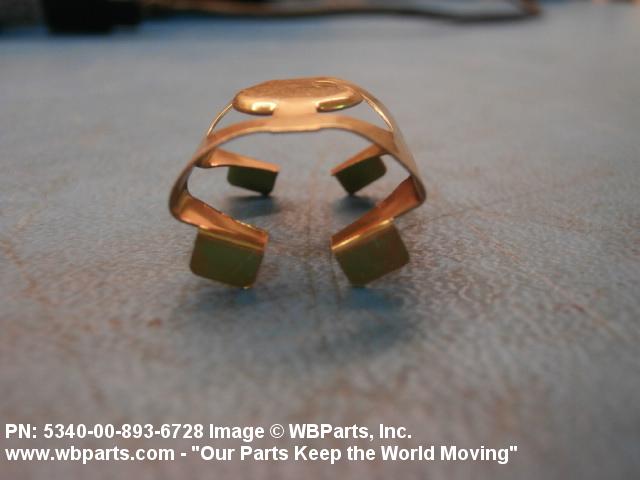

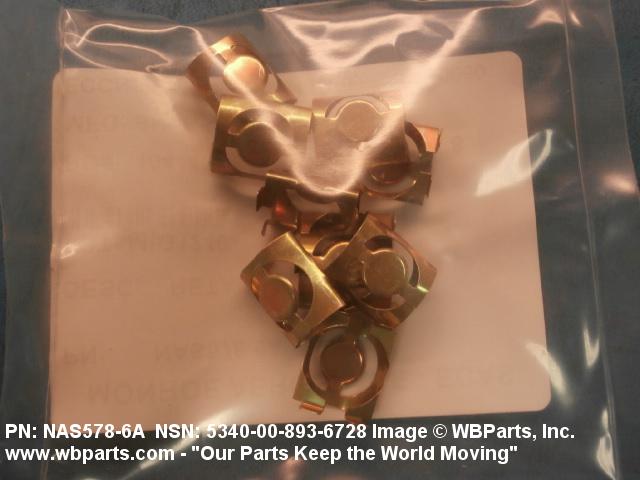

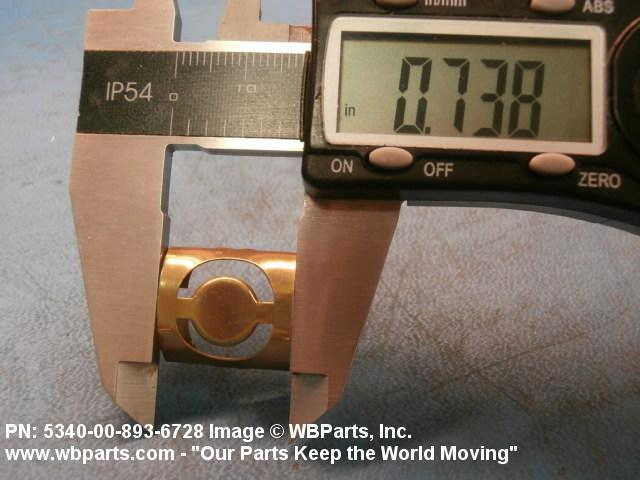

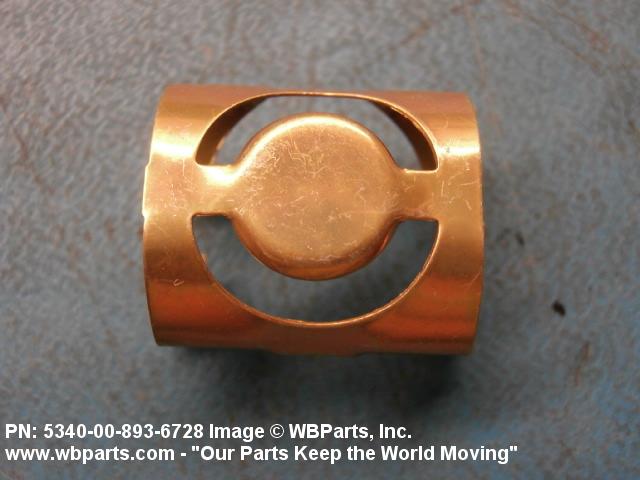

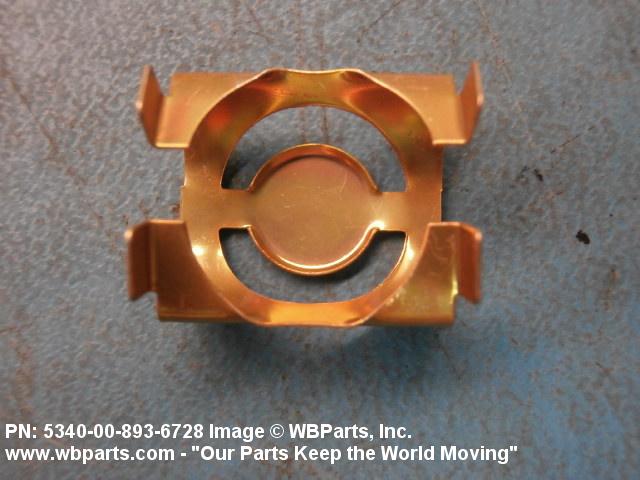

Drawings & Photos | NSN 5340-00-893-6728
Demand History | NSN 5340-00-893-6728
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-893-6728 | 2025-03-72 | 3693 | DIBBS |
| NAS5786A | 2022-04-112 | 70 | TR |
| NAS5786A | 2021-11-315 | 2 | Turkey |
| 5340-00-893-6728 | 2020-11-320 | 2384 | DIBBS |
| 5340-00-893-6728 | 2020-10-283 | 1 | DIBBS-RFPs |
| NAS5786A | 2017-03-73 | 10 | EG |
| NAS5786A | 2016-09-251 | 20 | Canada |
| 5340-00-893-6728 | 2015-07-196 | 1 | DIBBS-RFPs |
| NAS578-6A | 2014-11-324 | 100 | Turkey |
| NAS578-6A | 2013-11-322 | 8 | Belgium |
| 5340-00-893-6728 | 2012-09-246 | 1652 | DIBBS |
| 5340-00-893-6728 | 2012-05-129 | 1505 | DIBBS |
| 5340-00-893-6728 | 2012-04-109 | 1790 | DIBBS |
| 5340-00-893-6728 | 2010-01-11 | 2 | Japan |
| 5340-00-893-6728 | 2009-04-98 | 684 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-893-6728
Related Products | NSN 5340-00-893-6728
Technical Data | NSN 5340-00-893-6728
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AISI 1050 OR STEEL, AISI 1060 |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| STYLE DESIGNATOR | B7 BARREL |
| OVERALL LENGTH | 0.728 INCHES MINIMUM AND 0.768 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.399 INCHES MINIMUM AND 0.459 INCHES MAXIMUM |
| OVERALL WIDTH | 0.666 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.009 INCHES MINIMUM AND 0.015 INCHES MAXIMUM |
| GRIP HEIGHT | 0.095 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
| SPECIAL FEATURES | N/A |
| DEPARTURE FROM CITED DOCUMENT | N/A |
| DEPARTURE FROM CITED DESIGNATOR | UBGA |
Restrictions/Controls & Freight Information | NSN 5340-00-893-6728
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-893-6728
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
