NSN 5340-00-845-4809 A3064F535, A3064F5-35, C3064F535
Product Details | LOOP CLAMP
5340-00-845-4809 A clamp designed to surround other item(s) such as cable(s), conduit(s), pipe(s), hose(s), or tube(s), and to fasten together or to another object or structure. Includes straight flexible items. For items specifically designed to clamp a hose to a connection to prevent leakage, see CLAMP, HOSE. See also HANGER, PIPE and CLIP, SPRING TENSION. For retaining straps with a bridge, see STRAP, RETAINING. Excludes CLAMP, ELECTRICAL; BAND, RETAINING; CLAMP (1), C; BRACKET PIPE.202534000005342000000
Part Alternates: A3064F535, A3064F5-35, C3064F535, C3064F5-35, 91761485, 9176148-5, 5340-00-845-4809, 00-845-4809, 5340008454809, 008454809
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-845-4809 | 17532 ( CLAMP, LOOP ) |
Drawings & Photos | NSN 5340-00-845-4809
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-845-4809
Technical Data | NSN 5340-00-845-4809
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BAND RUBBER SYNTHETIC CUSHION |
| SURFACE TREATMENT | ANODIZE BAND |

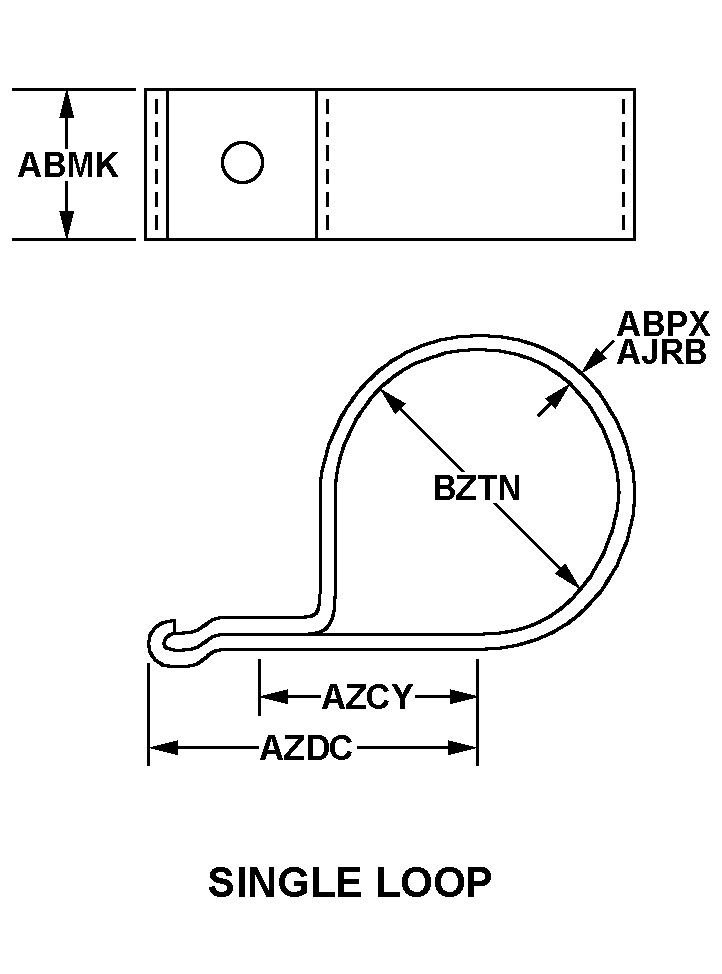

| STYLE DESIGNATOR | A47 SINGLE LOOP |
| OVERALL WIDTH | 0.625 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN LOOP AND MOUNTING HOLE | 0.812 INCHES NOMINAL |
| DISTANCE FROM LOOP CENTER TO TONGUE END | 1.233 INCHES NOMINAL |
| LOOP INSIDE DIAMETER | 0.500 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| TONGUE HOLE TYPE | ROUND, UNTHREADED |
| DIAMETER | 0.203 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5340-00-845-4809
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061200 | CABLE CLAMPS/JOINTS NOI |
| Less than car load rating | S | 60 |
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
