NSN 5340-00-836-3845 BL4970, BL-4970, 00-836-3845
Product Details | THREADED ROD END
5340-00-836-3845 A cylindrical item, tubular or solid on one end and internally or externally threaded on the other. It is designed to be permanently attached to the end of a tube or rod to provide a threaded connection for installing a threaded clevis, connector or the like.
Part Alternates: BL4970, BL-4970, 5340-00-836-3845, 00-836-3845, 5340008363845, 008363845
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1966 | 00-836-3845 | 30474 ( ROD END, THREADED ) |
Drawings & Photos | NSN 5340-00-836-3845
Cross Reference | NSN 5340-00-836-3845
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BL-4970 | 08484 | BREEZE-EASTERN CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-836-3845
Related Products | NSN 5340-00-836-3845
Technical Data | NSN 5340-00-836-3845
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| THREAD SERIES DESIGNATOR | UNC ROD CONNECTION |
| NOMINAL THREAD SIZE | 0.164 INCHES ROD CONNECTION |
| THREAD CLASS | 3A OVERALL |
| THREAD DIRECTION | RIGHT-HAND OVERALL |
| THREAD LENGTH | 0.188 INCHES NOMINAL ROD CONNECTION |

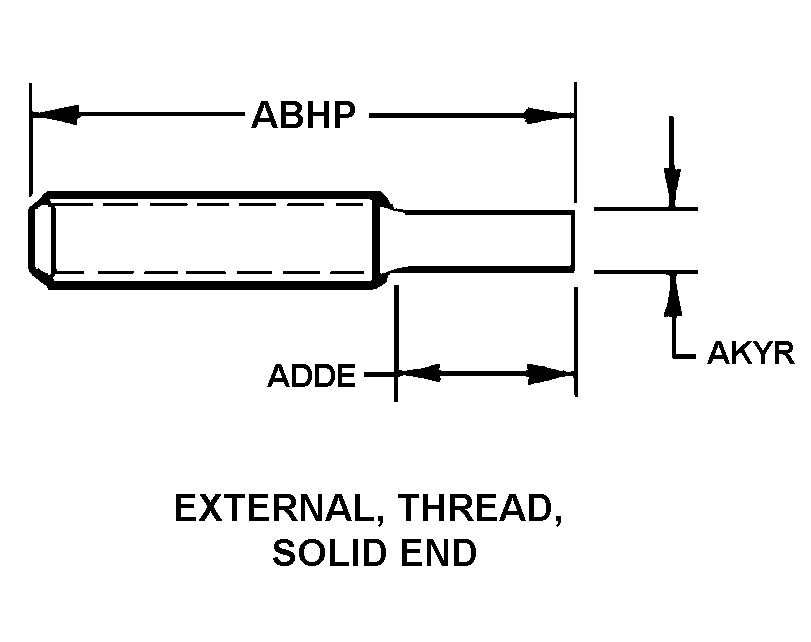

| STYLE DESIGNATOR | 102 EXTERNAL THREAD, SOLID END |
| OVERALL LENGTH | 1.281 INCHES NOMINAL |
| UNTHREADED END LENGTH | 0.969 INCHES NOMINAL |
| UNTHREADED END OUTSIDE DIAMETER | 0.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 08484 |
| DESIGN CONTROL REFERENCE | BL-4970 |
Restrictions/Controls & Freight Information | NSN 5340-00-836-3845
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
