Product Details | GROOVED CLAMP COUPLING

5340-00-833-0025 A metal loop having either a V or U cross section or channelled segment(s). It may be attached to a flat band. It is designed to create a fluid tight joint and/or connect pipe, tubing, tank cover(s), duct(s) and the like, by mating with flanged or beaded ferrule(s), flared, or beaded ends. It may or may not have a sealing inner liner. A latch or latches of the quick coupling type, nut or bolt type, or threaded trunnion type is (are) used to lock and adjust the band. Excludes COUPLING, CLAMP, PIPE and RING, LOCKING, METAL DRUM COVER.

Part Alternates: 008330025

Hardware and Abrasives | Hardware, Commercial

Supply Group (FSG) NSN Assign. NIIN
53 00-833-0025

Drawings & Photos | NSN 5340-00-833-0025


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5340-00-833-0025

Technical Data | NSN 5340-00-833-0025

Characteristic Specifications
CROSS-SECTIONAL SHAPE STYLE 1 GROOVED RETAINER
RETAINER THICKNESS 0.040 INCHES NOMINAL
RETAINER WIDTH 0.625 INCHES NOMINAL
ROOT WIDTH 0.181 INCHES NOMINAL
BAND THICKNESS ANY ACCEPTABLE
BAND WIDTH ANY ACCEPTABLE
HEIGHT 0.218 INCHES NOMINAL
INCLUDED ANGLE IN DEG 40.0
MATERIAL AND LOCATION STEEL OVERALL
SHAPE ROUND
INSIDE DIAMETER 2.000 INCHES NOMINAL

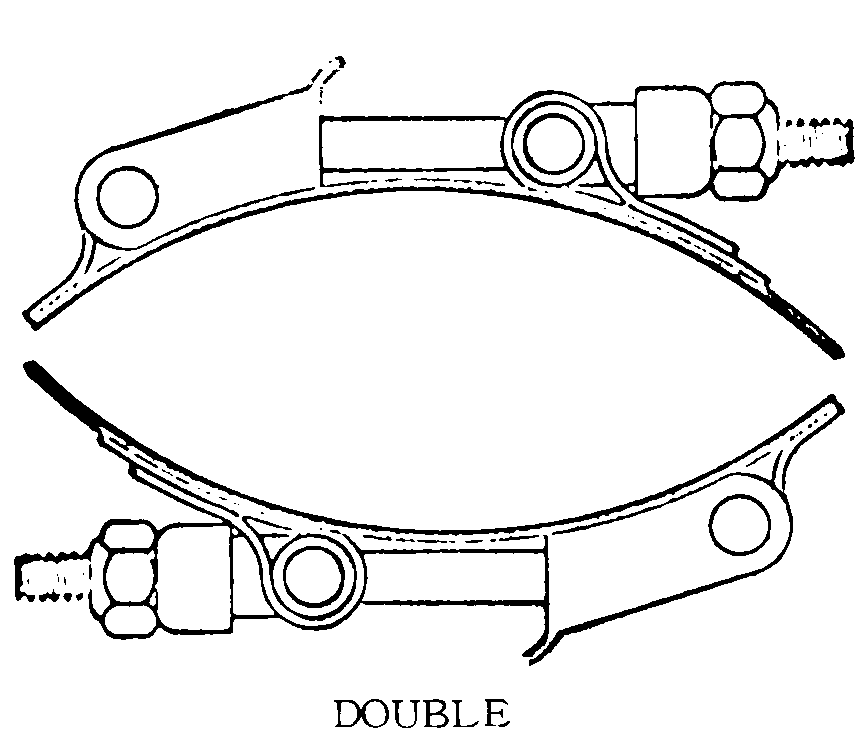

LATCH STYLE 55 DOUBLE
NUT TYPE PLAIN HEXAGON
DRILLED LOCKWIRE HOLE NOT INCLUDED
SEGMENT QUANTITY 2
SEALING INNER LINER NOT INCLUDED
TEMP RATING NOT RATED
MAXIMUM LOAD RATING NOT RATED
MANUFACTURERS CODE 00624
DESIGN CONTROL REFERENCE 4345-231SH
