NSN 5340-00-833-0222 39134861, 39-13486-1, 00-833-0222
Product Details | RETAINING STRAP
5340-00-833-0222 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Part Alternates: 39134861, 39-13486-1, 5340-00-833-0222, 00-833-0222, 5340008330222, 008330222
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-833-0222 | 05072 ( STRAP, RETAINING ) |
Drawings & Photos | NSN 5340-00-833-0222
Demand History | NSN 5340-00-833-0222
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-833-0222 | 2018-09-266 | 6 | DIBBS |
| 5340-00-833-0222 | 2018-07-206 | 6 | DIBBS |
| 5340-00-833-0222 | 2018-05-133 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-833-0222
Technical Data | NSN 5340-00-833-0222
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM FED QQ-A-362 TEMPER-0 |
| SURFACE TREATMENT | ZINC CHROMATE |

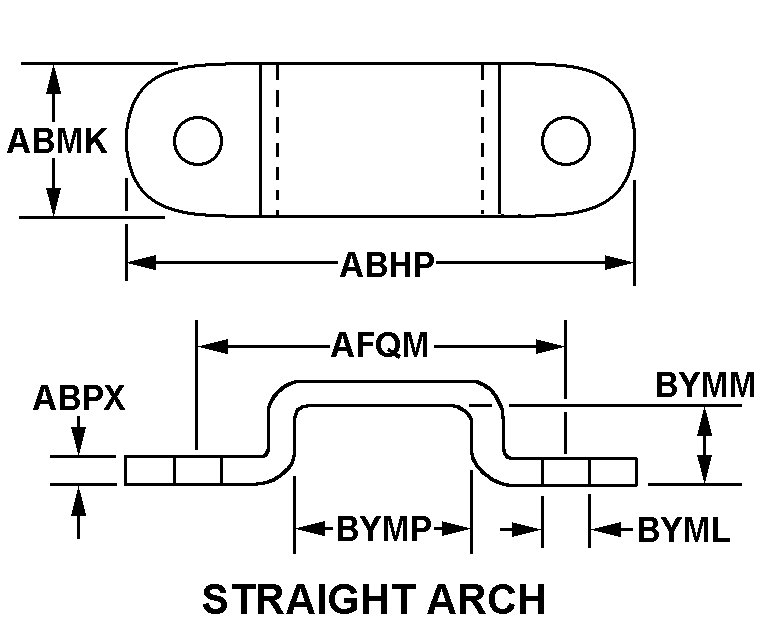

| STYLE DESIGNATOR | A14 STRAIGHT ARCH |
| OVERALL LENGTH | 2.810 INCHES NOMINAL |
| OVERALL WIDTH | 0.750 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 2.070 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.218 INCHES NOMINAL |
| DISTANCE BETWEEN BASE AND INSIDE OF ARCH | 0.680 INCHES NOMINAL |
| INSIDE DIAMETER/ARCH LENGTH | 1.250 INCHES NOMINAL |
| CUSHION | INCLUDED |
| CUSHIONING MATERIAL | RUBBER, SYNTHETIC |
| MOUNTING PAD | NOT INCLUDED |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | 39-13486-1 |
Restrictions/Controls & Freight Information | NSN 5340-00-833-0222
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-833-0222
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FG | SX:B-52 STRATO FORTRESS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
