NSN 5340-00-820-9387 MS202571600, MS20257-1-600, MS2025717200
Product Details | BUTT HINGE
5340-00-820-9387 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: MS202571600, MS20257-1-600, MS2025717200, MS20257-1-7200, 00, 5340-00-820-9387, 00-820-9387, 5340008209387, 008209387
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-820-9387 | 22894 ( HINGE, BUTT ) |

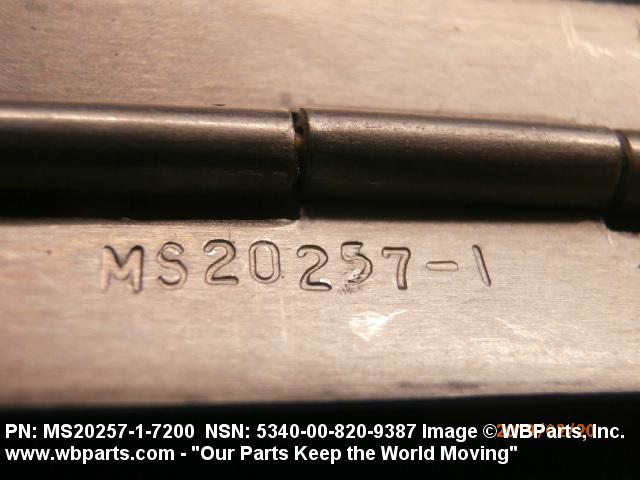

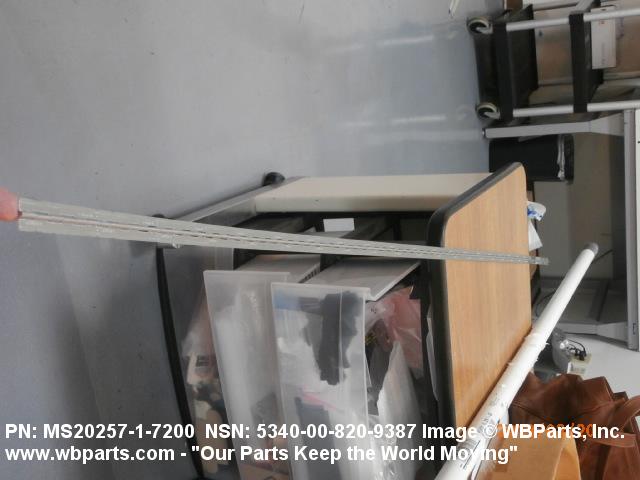

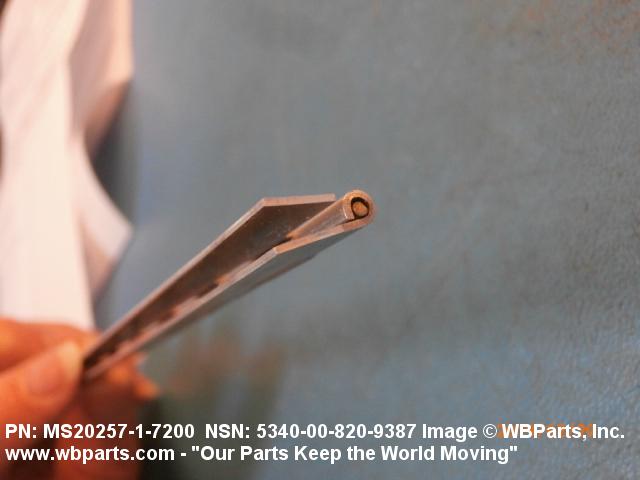

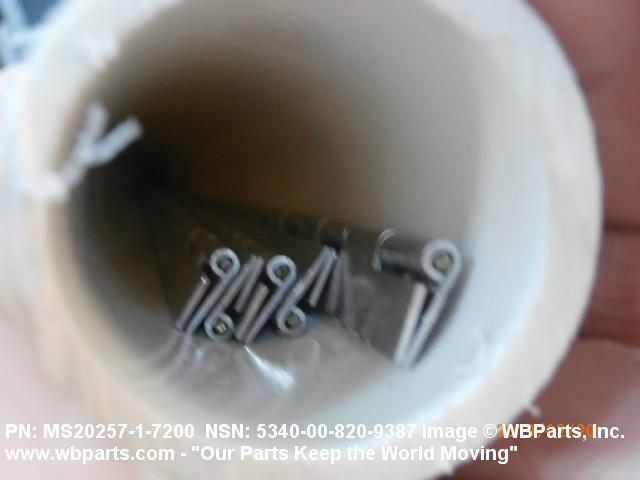

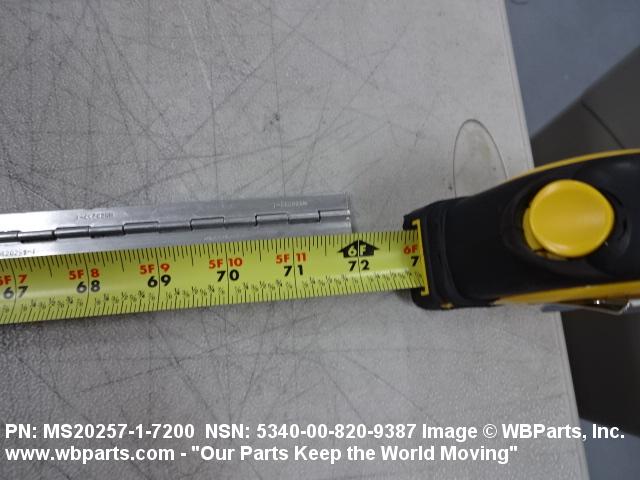

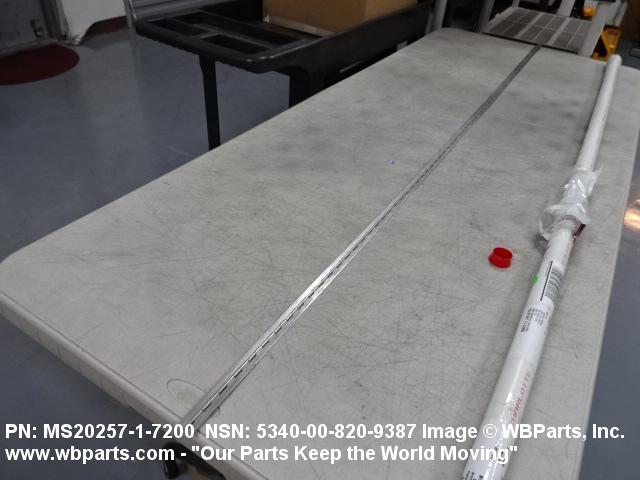

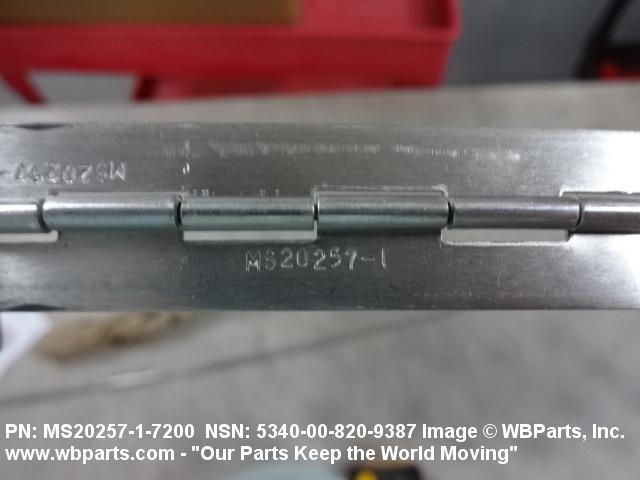

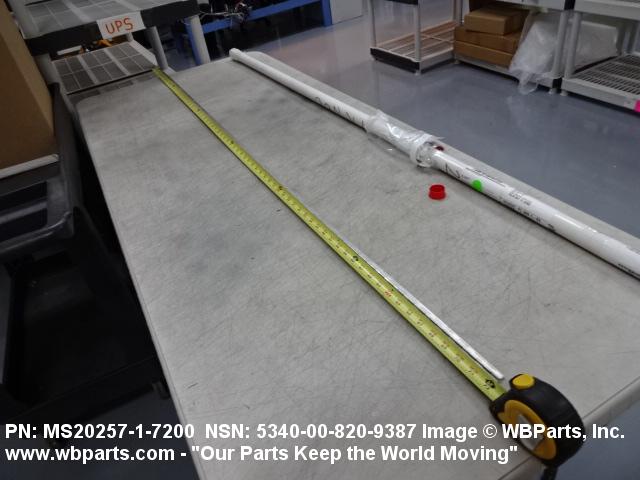

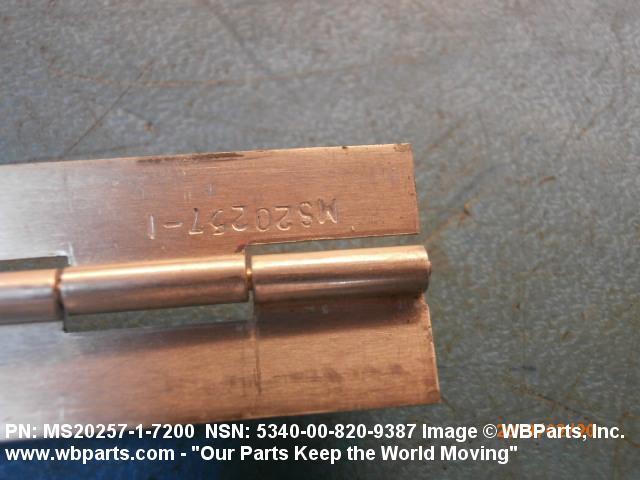

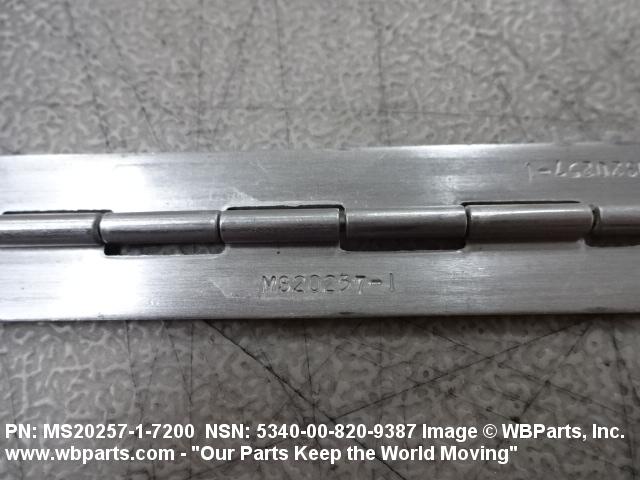

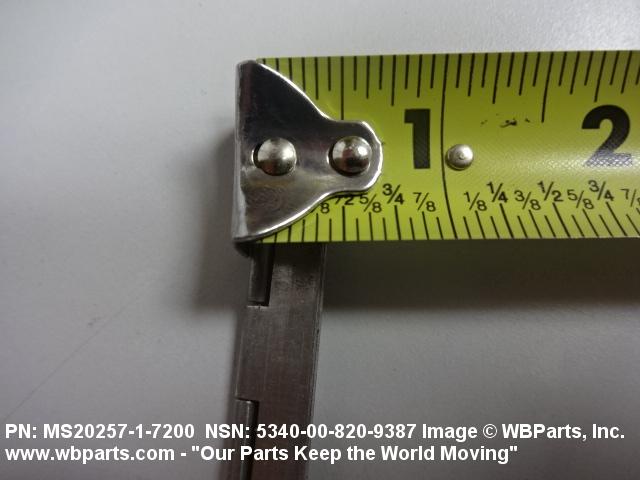

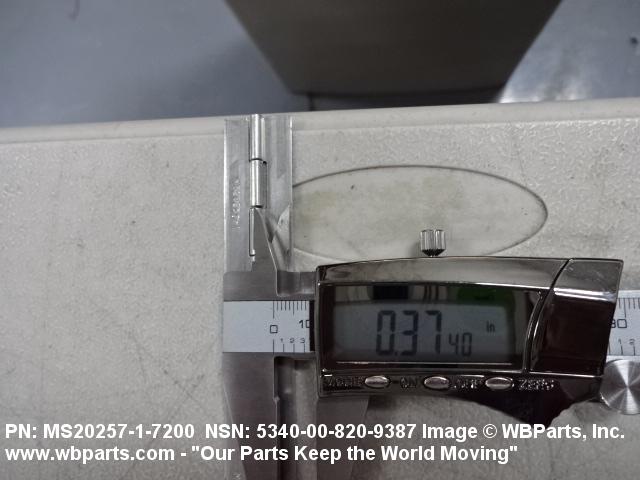

Drawings & Photos | NSN 5340-00-820-9387
Demand History | NSN 5340-00-820-9387
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2025717200 | 2019-02-38 | 2 | United States |
| MS2025717200 | 2018-08-221 | 2 | United States |
| MS202571600 | 2017-07-191 | 5 | United States |
| MS2025717200 | 2015-06-177 | 1 | US |
| MS20257-1-7200 | 2014-06-157 | 50 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-820-9387
Technical Data | NSN 5340-00-820-9387
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY BODY |

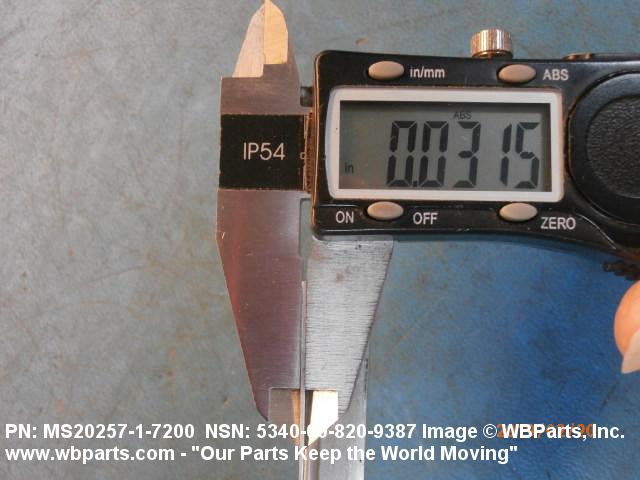

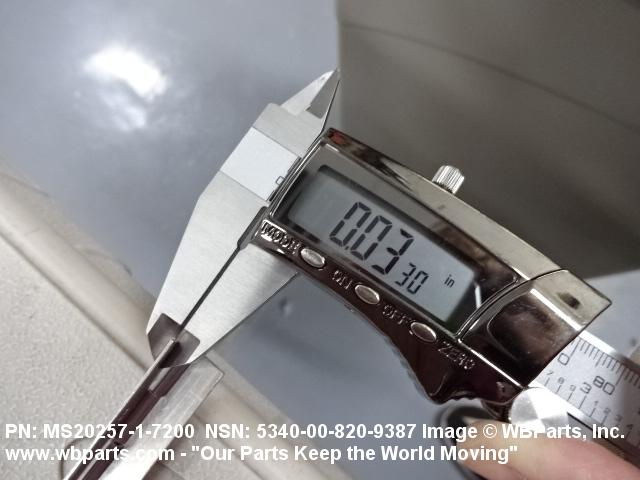

| MATERIAL THICKNESS | 0.032 INCHES NOMINAL |

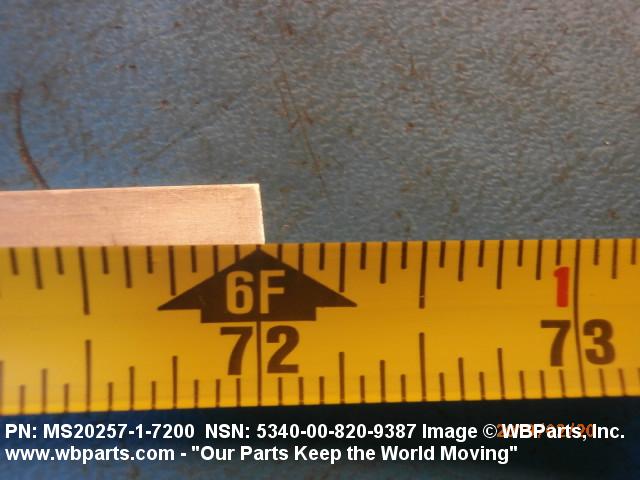

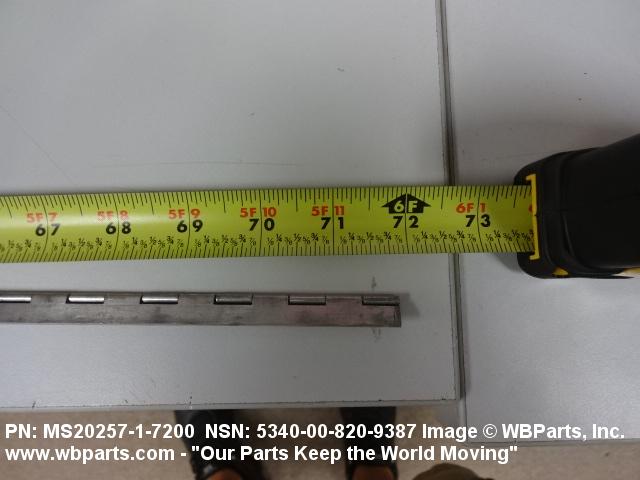

| BODY WIDTH | 72.000 INCHES NOMINAL |

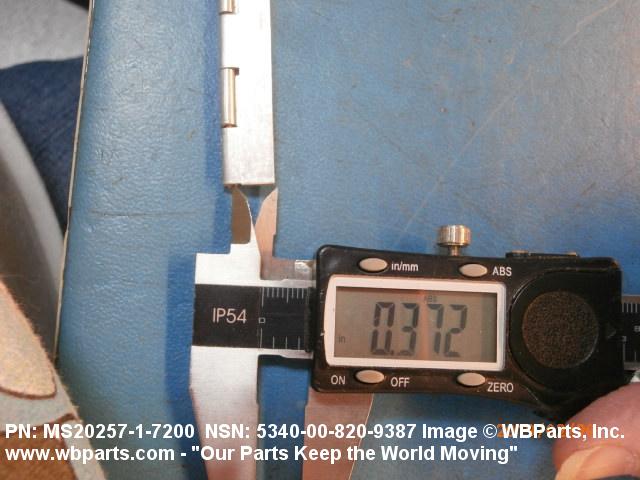

| PIN CENTER TO BODY EDGE DISTANCE | 0.375 INCHES NOMINAL |
| HINGE MOUNTING TYPE | FULL MORTISE |
| PIN REMOVABILITY | NONREMOVABLE |
| KNUCKLE QUANTITY | 115 |
| PERFORMANCE TYPE | LIGHT DUTY |
| MANUFACTURERS CODE | 71126 |
| DESIGN CONTROL REFERENCE | 00 |
Restrictions/Controls & Freight Information | NSN 5340-00-820-9387
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095290 | HINGES/BUTTS NOI METAL O/T I/S |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-820-9387
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
