Product Details | ANGLE BRACKET
5340-00-819-6129 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.202534000005342000000
Part Alternates: 6511659869, 65-11659-869, 5340-00-819-6129, 00-819-6129, 5340008196129, 008196129
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-819-6129 | 16900 ( BRACKET, ANGLE ) |
Drawings & Photos | NSN 5340-00-819-6129
Demand History | NSN 5340-00-819-6129
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-819-6129 | 2019-05-133 | 27 | DIBBS |
| 5340-00-819-6129 | 2009-06-177 | 27 | DIBBS |
Cross Reference | NSN 5340-00-819-6129
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 65-11659-869 | 82918 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-819-6129
Related Products | NSN 5340-00-819-6129
Technical Data | NSN 5340-00-819-6129
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6350 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | 6 ANGLE |
| FIRST LEG LENGTH | 1.002 INCHES NOMINAL |
| SECOND LEG LENGTH | 1.180 INCHES MINIMUM AND 1.220 INCHES MAXIMUM |
| FIRST LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.068 INCHES MAXIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |

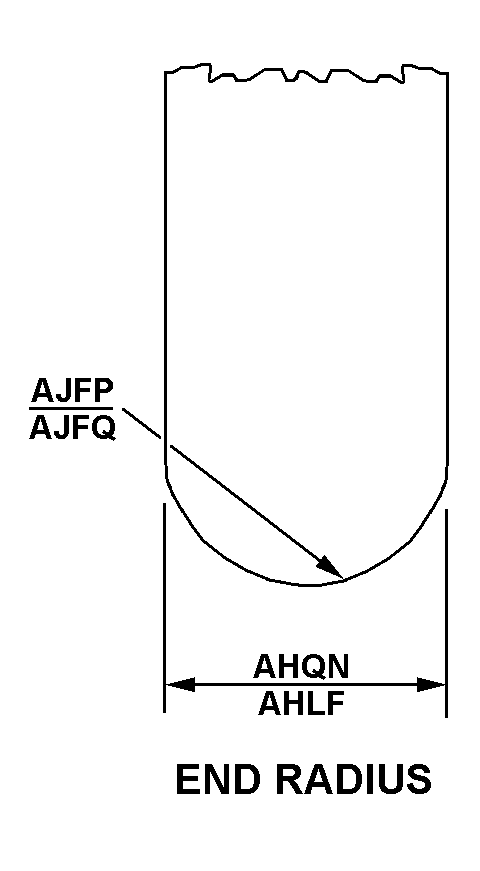

| FIRST LEG STYLE | 102 END RADIUS |
| FIRST LEG WIDTH | 1.132 INCHES MINIMUM AND 1.192 INCHES MAXIMUM |
| FIRST LEG END RADIUS | 0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |
| SECOND LEG WIDTH | 0.615 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| SECOND LEG END RADIUS | 0.469 INCHES MINIMUM AND 0.531 INCHES MAXIMUM |

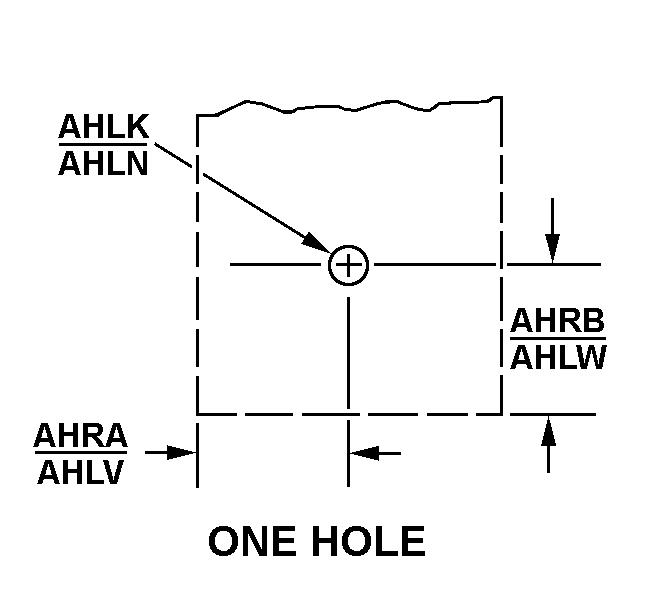

| FIRST LEG HOLE ARRANGEMENT STYLE | 132 ONE HOLE |
