Product Details | DOUBLE ANGLE BRACKET
5340-00-819-6153 A rigid item usually fabricated from flat material, forming two alternate or two adjacent interior angles, both which are less than 180 degrees (3.141 radians). It is designed to position, align, and/or support an item. It may be reinforced. See also BRACKET, ANGLE and BRACKET (1), MOUNTING.202534000005342000000
Part Alternates: 443891, 6511659832, 65-11659-832, 5340-00-819-6153, 00-819-6153, 5340008196153, 008196153
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-819-6153 | 20354 ( BRACKET, DOUBLE ANGLE ) |
Drawings & Photos | NSN 5340-00-819-6153
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-819-6153
Related Products | NSN 5340-00-819-6153
Technical Data | NSN 5340-00-819-6153
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 410 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5504 ASSN STD SINGLE MATERIAL RESPONSE |

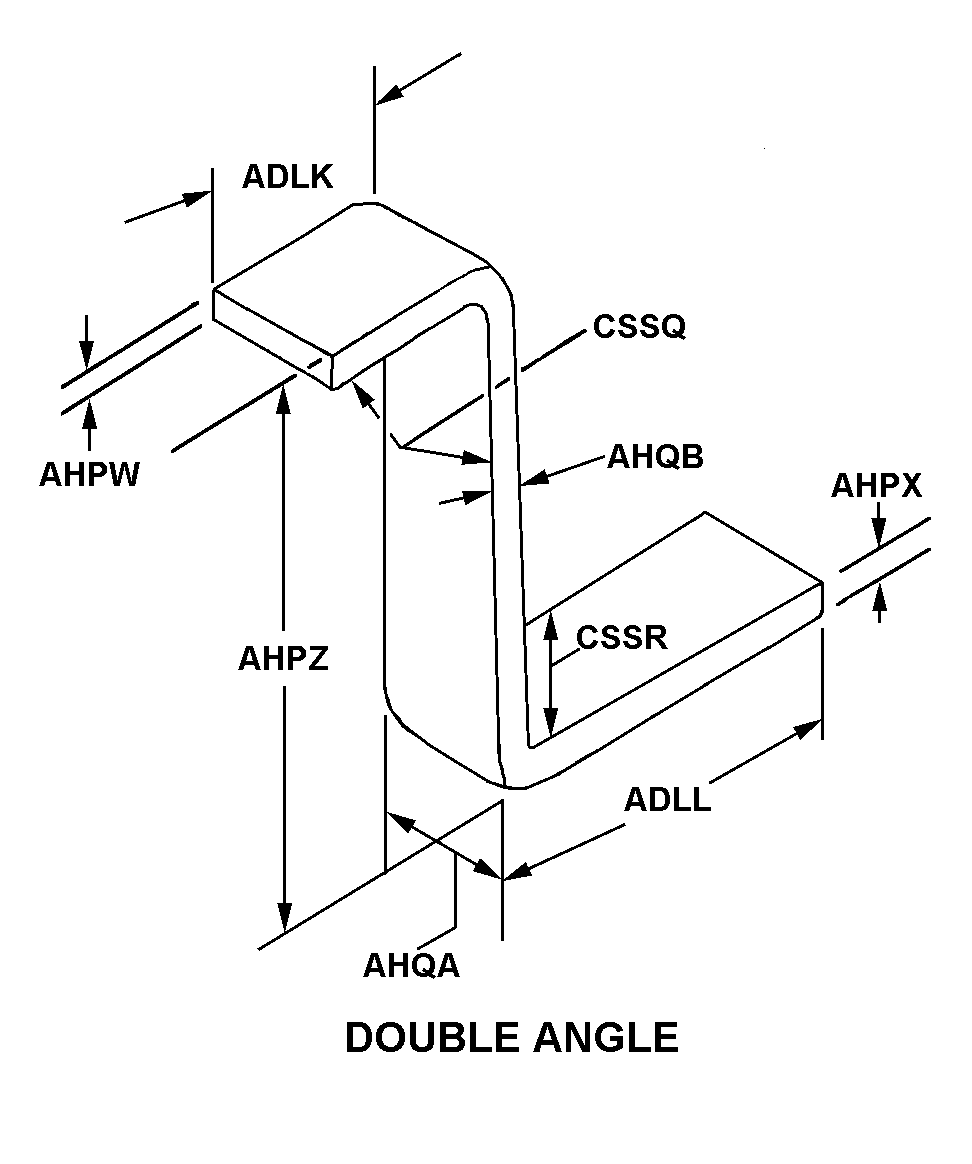

| STYLE DESIGNATOR | 11 DOUBLE ANGLE |
| FIRST LEG LENGTH | 0.850 INCHES MINIMUM AND 0.856 INCHES MAXIMUM |
| SECOND LEG LENGTH | 0.880 INCHES MINIMUM AND 0.886 INCHES MAXIMUM |
| FIRST LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.056 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| CENTER SECTION HEIGHT | 0.456 INCHES MINIMUM AND 0.462 INCHES MAXIMUM |
| CENTER SECTION WIDTH | 2.824 INCHES NOMINAL |
| CENTER SECTION THICKNESS | 0.056 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| SECOND LEG ANGLE | 90.0 DEGREES NOMINAL |

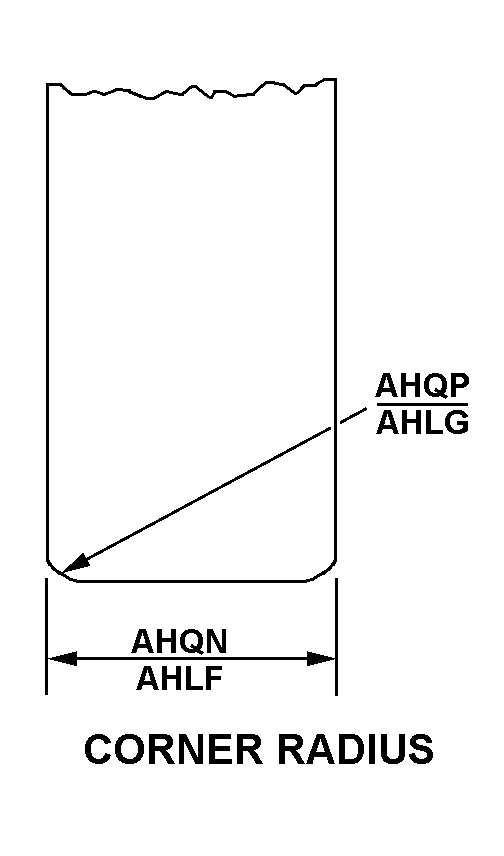

| FIRST LEG STYLE | 105 CORNER RADIUS |
| FIRST LEG WIDTH | 2.824 INCHES NOMINAL |
| FIRST LEG CORNER RADIUS | 0.312 INCHES NOMINAL |
| SECOND LEG WIDTH | 2.824 INCHES NOMINAL |
| SECOND LEG CORNER RADIUS | 0.312 INCHES NOMINAL |

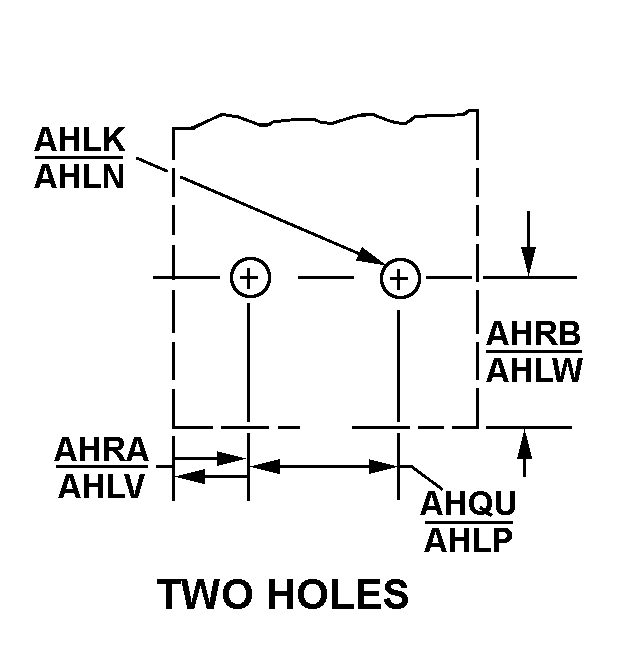

| FIRST LEG HOLE ARRANGEMENT STYLE | 133 TWO HOLES |
| FIRST LEG HOLE DIAMETER | 0.214 INCHES MINIMUM AND 0.224 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN HOLE CENTERS ALONG WIDTH | 2.200 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.312 INCHES NOMINAL |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.312 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | 105 CORNER RADIUS |
| (NON-CORE DATA) FABRICATION METHOD | MACHINED |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 443891 |
