NSN 5340-00-817-6766 MS2025747200, MS20257-4-7200, 00-817-6766
Product Details | BUTT HINGE
5340-00-817-6766 A hinge usually with rectangularly shaped leaves. The dimension parallel to the hinge pin must be greater than the dimension transverse to the hinge pin. It may have a tension coil spring at its pivot(s) for closing action, and may have a third member between its pivot(s) to permit the door, or the like, to swing in an arc from either side.
Part Alternates: MS2025747200, MS20257-4-7200, 5340-00-817-6766, 00-817-6766, 5340008176766, 008176766
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-817-6766 | 22894 ( HINGE, BUTT ) |

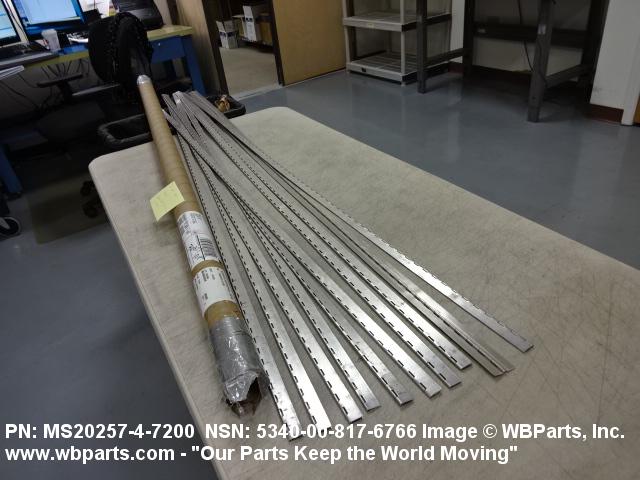

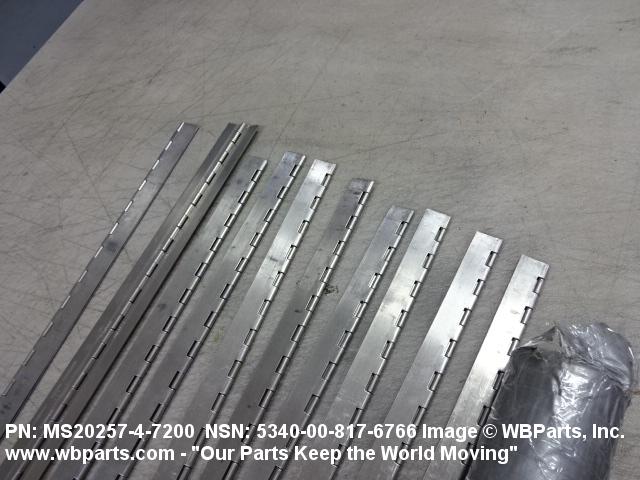

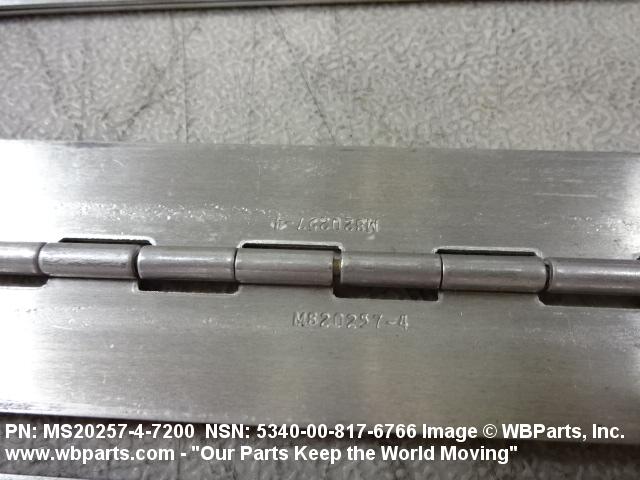

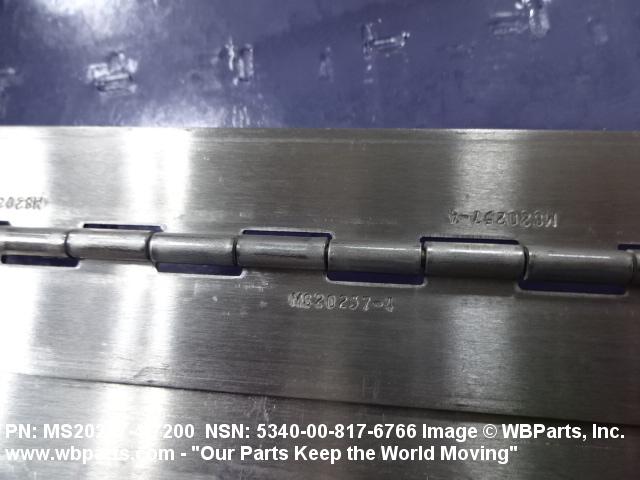

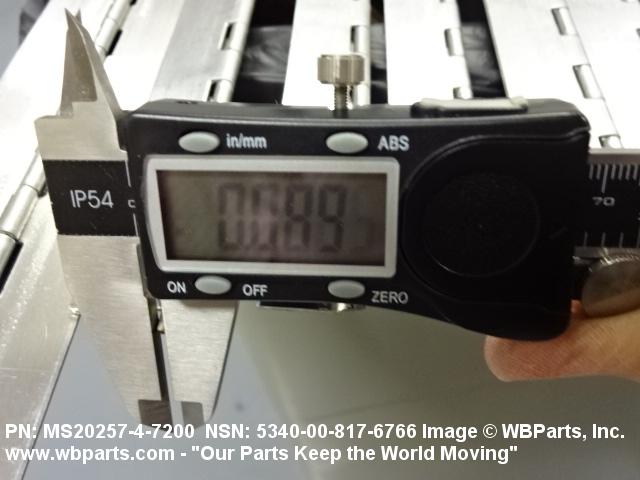

Drawings & Photos | NSN 5340-00-817-6766
Demand History | NSN 5340-00-817-6766
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS2025747200 | 2024-01-23 | 4 | Poland |
| MS2025747200 | 2011-12-363 | 1 | United States |
Cross Reference | NSN 5340-00-817-6766
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20257-4-7200 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-817-6766
Technical Data | NSN 5340-00-817-6766
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-318, COND 1/2 HARD-CANCELED BODY AND STEEL, MIL-S-6721 PIN |
| SURFACE TREATMENT AND LOCATION | ANODIZED, QQ-A-696 BODY |
| STYLE DESIGNATOR | 18 BUTT |

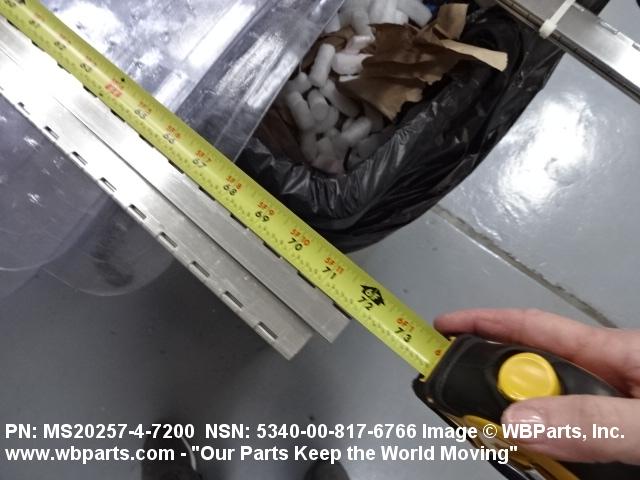

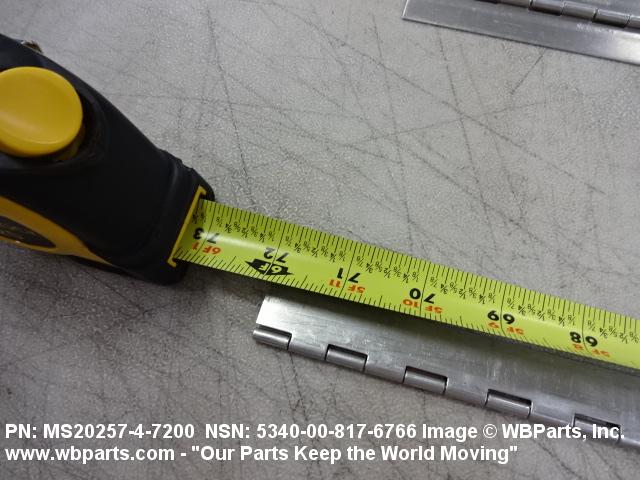

| OVERALL LENGTH | 72.000 INCHES NOMINAL |

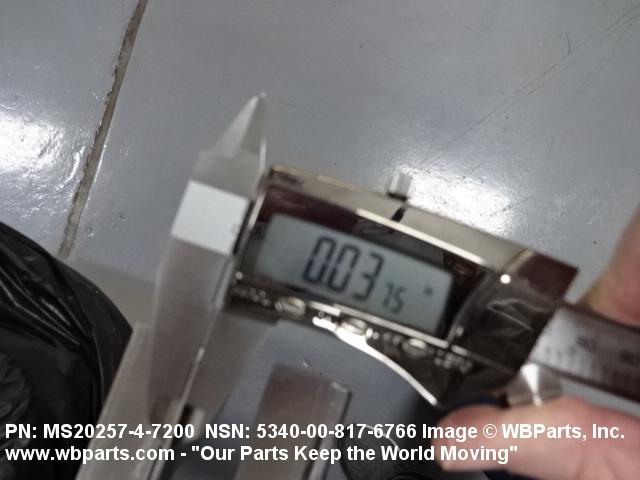

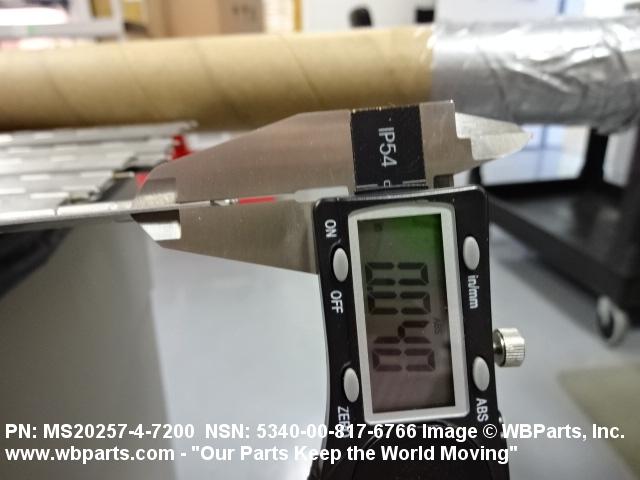

| MATERIAL THICKNESS | 0.040 INCHES NOMINAL |
| PIN DIAMETER | 0.120 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |

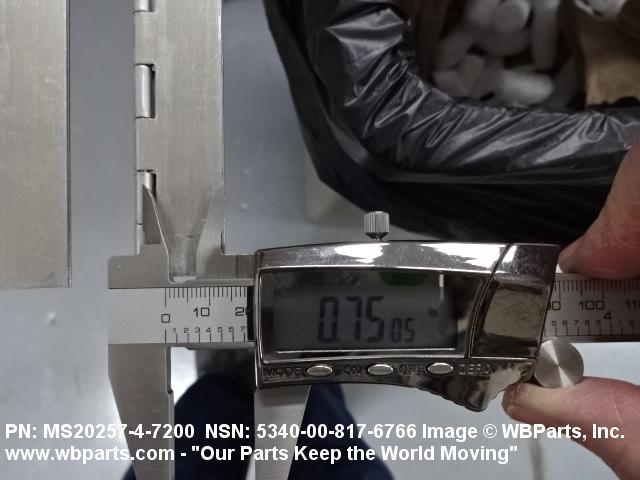

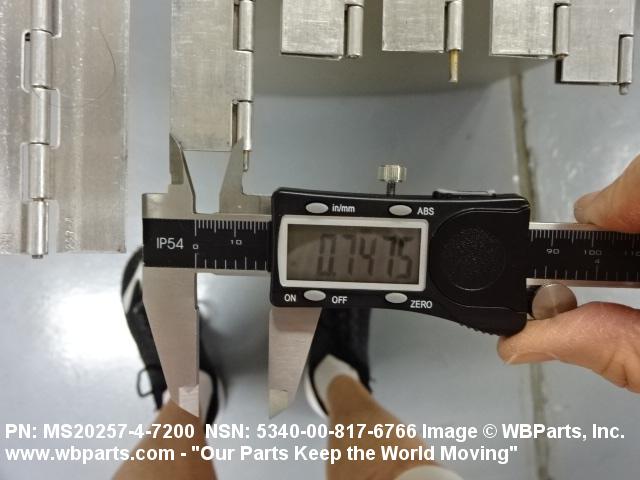

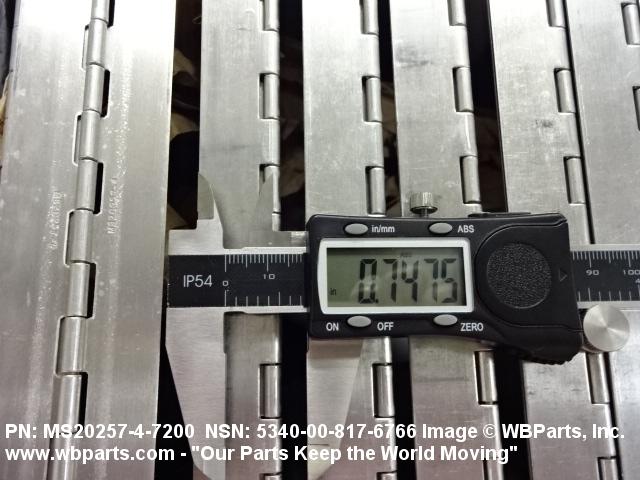

| PIN CENTER TO BODY EDGE DISTANCE | 0.750 INCHES NOMINAL |
| KNUCKLE INSIDE DIAMETER | 0.092 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| PIN TIP STYLE | 6 FLAT BUTTON |
| HINGE MOUNTING TYPE | FULL SURFACE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| PIN REMOVABILITY | REMOVABLE |
| RISING PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 144 |
| PERFORMANCE TYPE | LIGHT DUTY |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20257-4-7200 |
Restrictions/Controls & Freight Information | NSN 5340-00-817-6766
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
