NSN 5340-00-811-7092 MS20001H37200, MS20001H3-7200, 00-811-7092
Product Details | BUTT HINGE LEAF
5340-00-811-7092 An item consisting of one leaf only of a HINGE, BUTT, with or without a hinge pin.
Part Alternates: MS20001H37200, MS20001H3-7200, 5340-00-811-7092, 00-811-7092, 5340008117092, 008117092
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-811-7092 | 07655 ( LEAF, BUTT HINGE ) |

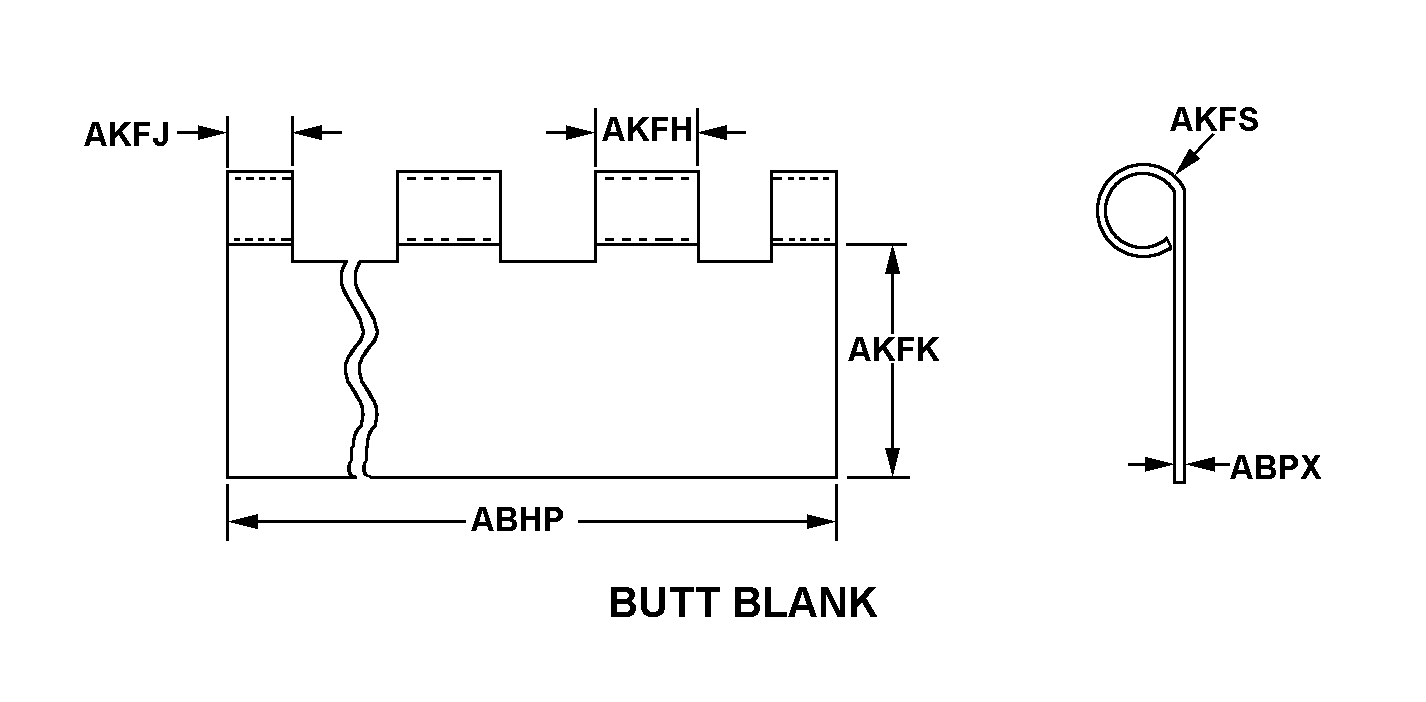

Drawings & Photos | NSN 5340-00-811-7092
Demand History | NSN 5340-00-811-7092
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-811-7092 | 2024-10-304 | 10 | CA |
| MS20001H37200 | 2008-08-226 | 1000 | US |
Cross Reference | NSN 5340-00-811-7092
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20001H3-7200 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-811-7092
Related Products | NSN 5340-00-811-7092
Technical Data | NSN 5340-00-811-7092
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ALUMINUM ALLOY, QQ-A-200/3, ALLOY 2024, T4 OVERALL |
| STYLE DESIGNATOR | 45 BUTT BLANK |
| OVERALL LENGTH | 72.000 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.044 INCHES MINIMUM AND 0.056 INCHES MAXIMUM |
| KNUCKLE LENGTH | 0.491 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| END KNUCKLE LENGTH | 0.188 INCHES NOMINAL |
| PIN CENTER TO BODY EDGE DISTANCE | 0.625 INCHES NOMINAL |
| KNUCKLE INSIDE DIAMETER | 0.093 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| HINGE MOUNTING TYPE | FULL SURFACE |
| REVERSIBLE FEATURE | NOT INCLUDED |
| HINGE PIN | NOT INCLUDED |
| KNUCKLE TYPE | FRICTION |
| KNUCKLE QUANTITY | 72 |
| PERFORMANCE TYPE | LIGHT DUTY |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20001H3-7200 |
Restrictions/Controls & Freight Information | NSN 5340-00-811-7092
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095290 | HINGES/BUTTS NOI METAL O/T I/S |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-811-7092
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
