NSN 5340-00-809-4390 NAS5785A, NAS578-5A, SLR505A
Product Details | NUT AND BOLT RETAINER
5340-00-809-4390 An item designed to fit over and hold a nut or bolt head to prevent it from turning. See also LOCKING PLATE, NUT AND BOLT.
Part Alternates: NAS5785A, NAS578-5A, SLR505A, SLR50-5A, KLM34, KLM3-4 , KLM34AMP, KLM3-4AMP , 2577054RET, 2577-054RET, 5340-00-809-4390, 00-809-4390, 5340008094390, 008094390
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-809-4390 | 16010 ( RETAINER, NUT AND BOLT ) |

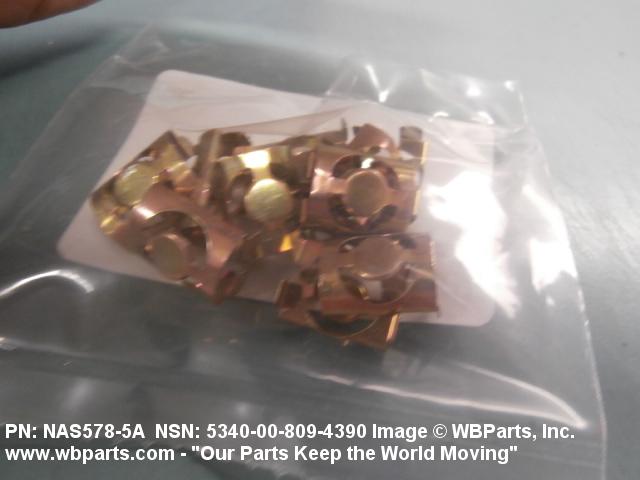

Drawings & Photos | NSN 5340-00-809-4390
Demand History | NSN 5340-00-809-4390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-809-4390 | 2023-09-263 | 747 | DIBBS |
| 5340-00-809-4390 | 2017-03-61 | 1840 | DIBBS |
| 5340-00-809-4390 | 2016-12-349 | 30 | United States |
| NAS5785A | 2014-06-153 | 12 | United States |
| 5340-00-809-4390 | 2008-12-339 | 132 | DIBBS |
| NAS5785A | 2008-05-148 | 3000 | Canada |
| 5340-00-809-4390 | 2008-01-24 | 193 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-809-4390
Technical Data | NSN 5340-00-809-4390
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, SAE 1050 |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| STYLE DESIGNATOR | B7 BARREL |

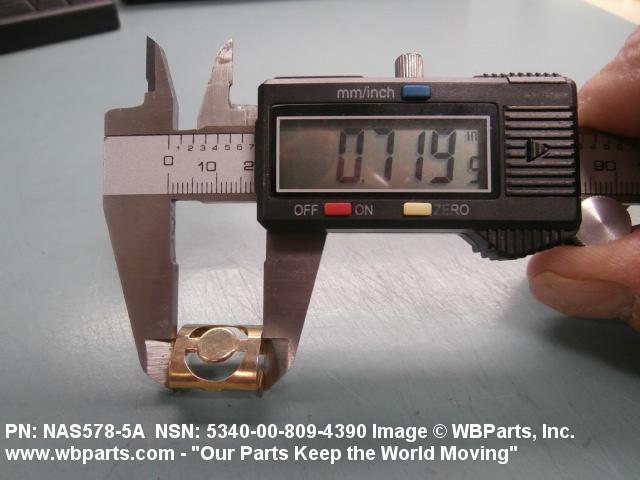

| OVERALL LENGTH | 0.712 INCHES MINIMUM AND 0.727 INCHES MAXIMUM |

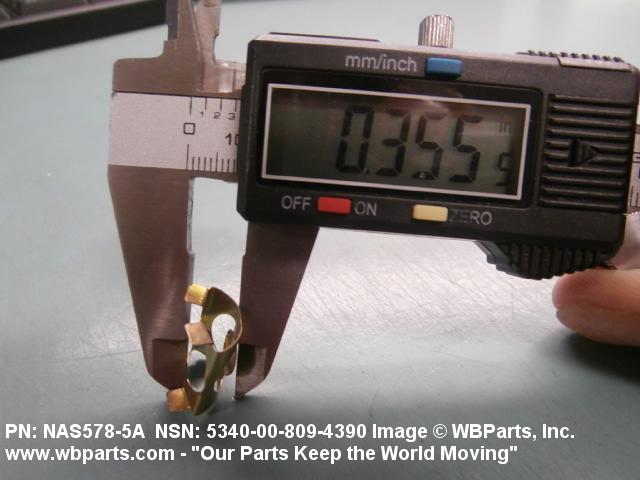

| OVERALL HEIGHT | 0.329 INCHES MINIMUM AND 0.389 INCHES MAXIMUM |

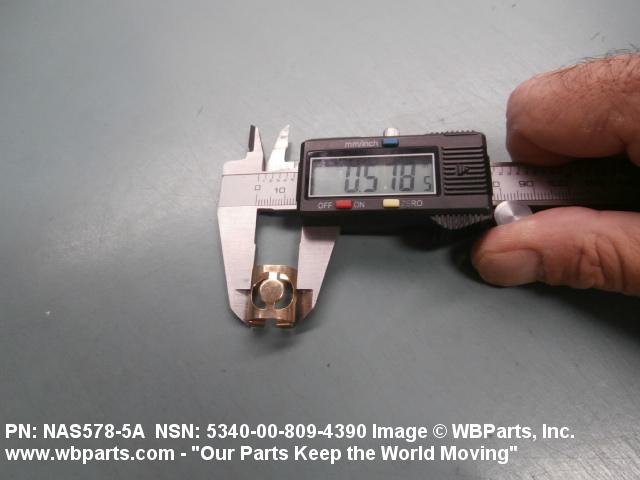

| OVERALL WIDTH | 0.578 INCHES NOMINAL |

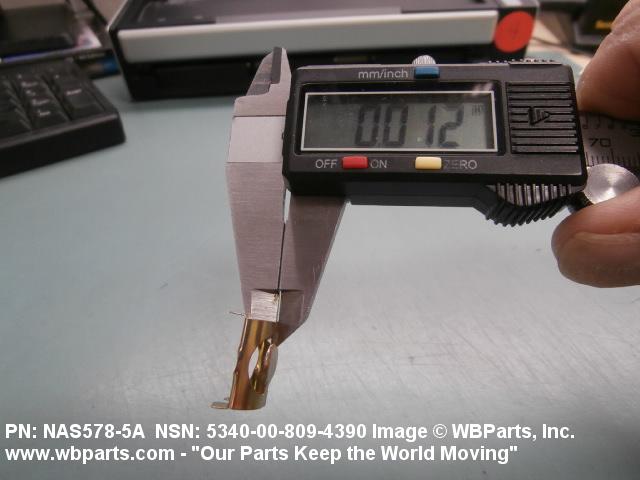

| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| GRIP HEIGHT | 0.095 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5340-00-809-4390
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062060 | FUSES NOI IN BOXES |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
