NSN 5340-00-717-8325 548538, 00-717-8325, 007178325
Product Details | HELICAL COMPRESSION SPRING SEAT
5340-00-717-8325 A circular item, usually having a flat or grooved flange, boss(es), and/or counterbore designed to accommodate the end of the spring. It is used to position the spring, but does not encase the spring or restrain lateral motion. It may be used in conjunction with a RETAINER, HELICAL COMPRESSION SPRING. Excludes WASHER (1), (as modified); SEAT, BALL SOCKET and HOLDER, SPRING. See also ROTOR, ENGINE POPPET VALVE.
Part Alternates: 548538, 5340-00-717-8325, 00-717-8325, 5340007178325, 007178325
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-717-8325 | 24328 ( SEAT, HELICAL COMPRESSION SPRING ) |

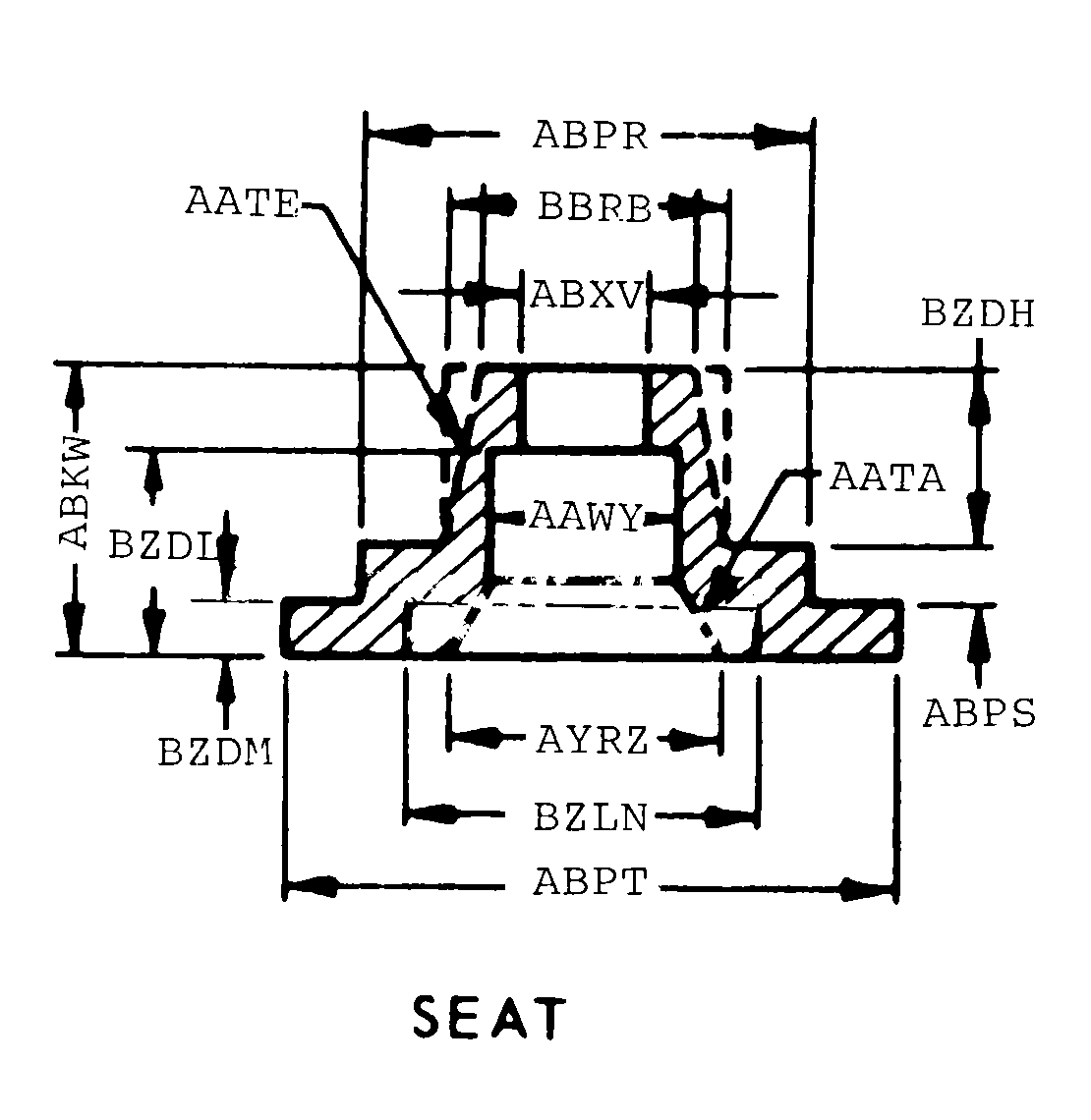

Drawings & Photos | NSN 5340-00-717-8325
Cross Reference | NSN 5340-00-717-8325
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 548538 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5340-00-717-8325
Related Products | NSN 5340-00-717-8325
Technical Data | NSN 5340-00-717-8325
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 6415 |
| MATERIAL HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 33.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | N15 SEAT |
| OVERALL HEIGHT | 0.3100 INCHES NOMINAL |
| END DIAMETER | 0.2450 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| DISTANCE FROM END TO FIRST STEP | 0.0400 INCHES MINIMUM AND 0.0450 INCHES MAXIMUM |
| FIRST STEP DIAMETER | 0.4310 INCHES MINIMUM AND 0.43500 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.2550 INCHES MINIMUM AND 0.2650 INCHES MAXIMUM |
| BORE DIAMETER | 0.0600 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| COUNTERBORE LENGTH | 0.1400 INCHES NOMINAL |
| SECOND COUNTERBORE LENGTH | 0.1330 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.1340 INCHES MINIMUM AND 0.1440 INCHES MAXIMUM |
| SECOND COUNTERBORE DIAMETER | 0.2070 INCHES MINIMUM AND 0.2130 INCHES MAXIMUM |
| DESIGN TYPE | SOLID |
| SPECIAL FEATURES | NOT CASEHARDENED; ONE HOLE 0.062 IN. DIA THRU 2ND COUNTERBORE |
| MANUFACTURERS CODE | 73030 |
| DESIGN CONTROL REFERENCE | 548538 |
Restrictions/Controls & Freight Information | NSN 5340-00-717-8325
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | S | 60 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-717-8325
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | PP | TG:PROPELLER SYSTEMS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
