NSN 5340-00-672-0402 H120P1040156, H120P1-040-156, 00-672-0402
Product Details | FLUSH CATCH
5340-00-672-0402 A positive fastening device having an integral flush lever or button actuator designed to be mounted so that when in locked position no portion protrudes above the exterior surface of the door, cover, or the like. Excludes CATCH (as modified) and LATCH (as modified).
Part Alternates: H120P1040156, H120P1-040-156, 5340-00-672-0402, 00-672-0402, 5340006720402, 006720402
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-672-0402 | 20262 ( CATCH, FLUSH ) |
Drawings & Photos | NSN 5340-00-672-0402
Cross Reference | NSN 5340-00-672-0402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H120P1-040-156 | 83014 | HARTWELL CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-672-0402
Technical Data | NSN 5340-00-672-0402
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM FLOOR PLATE |
| SURFACE TREATMENT | ANODIZE FLOOR PLATE |

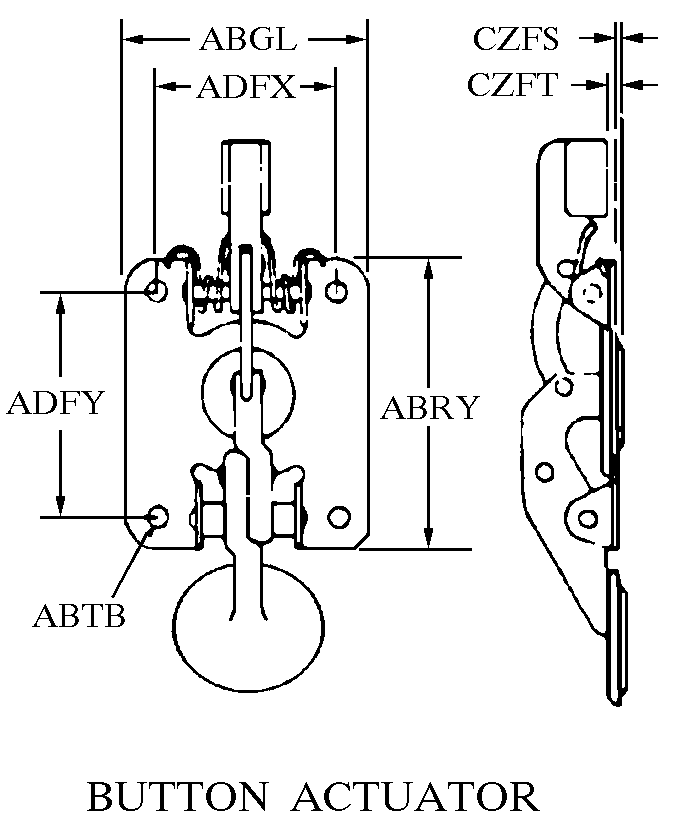

| STYLE DESIGNATOR | B2 BUTTON ACTUATOR |
| WIDTH | 1.460 INCHES NOMINAL |
| LENGTH | 1.770 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.128 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.020 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.394 INCHES NOMINAL |
| LEVER OFFSET DISTANCE | 0.040 INCHES NOMINAL |
| BOLT OFFSET DISTANCE | 0.156 INCHES NOMINAL |
| SPECIAL FEATURES | MATL:BODY CRES STEEL,BUTTON ALUM.;S/TREATMENT BODY PASSIVATED,BUTTON ANODIZED |
Restrictions/Controls & Freight Information | NSN 5340-00-672-0402
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093880 | CATCHES/LATCHES METAL NOI |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-672-0402
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
