NSN 5340-00-660-3717 MS2517824, MS25178-24, MS2571824
Product Details | DUST AND MOISTURE SEAL PROTECTIVE CAP
5340-00-660-3717 An item specifically designed to fit over the opening(s) of various items to provide mechanical protection and/or to prevent the entrance of foreign matter during painting, shipping, storage, or the like. It is not designed to retain fluids under pressure during equipment operation. Excludes COVER, ELECTRICAL CONNECTOR; HOOD, SEALING, BOTTLE; and STOPPER, BOTTLE. For items designed to fit into or over the opening(s) of various items, see CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Part Alternates: MS2517824, MS25178-24, MS2571824, MS25718-24, N215EC24, N215-EC24, EC24, 10-70500-24, 12192703, 1219270-3, 510, 5340-00-660-3717, 00-660-3717, 5340006603717, 107050024, 006603717
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-660-3717 | 13432 ( CAP, PROTECTIVE, DUST AND MOISTURE SEAL ) |

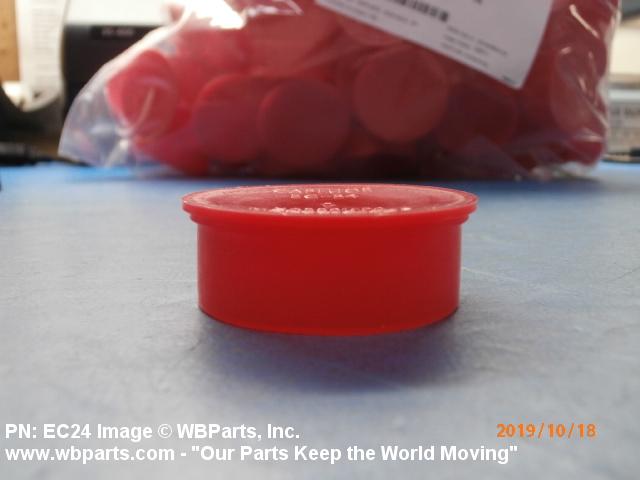

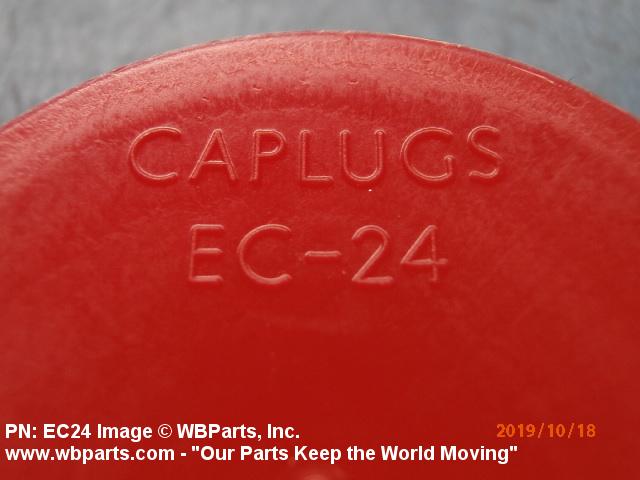

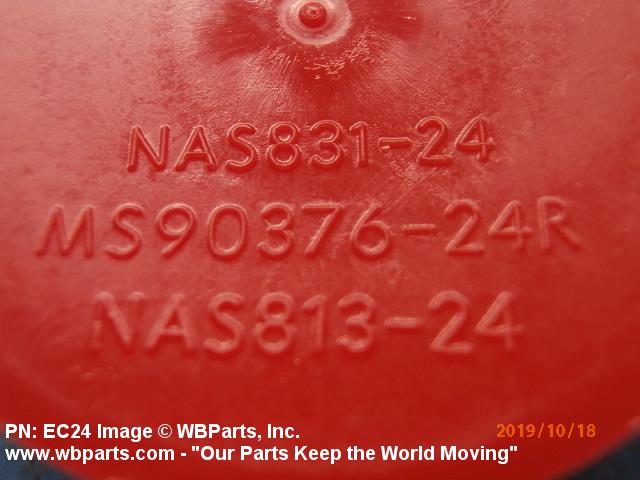

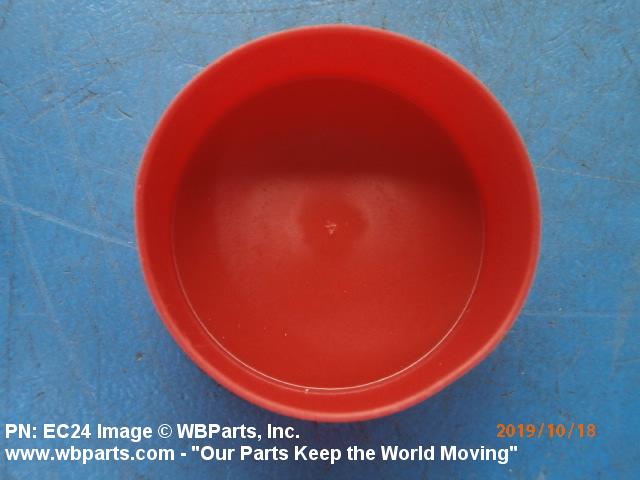

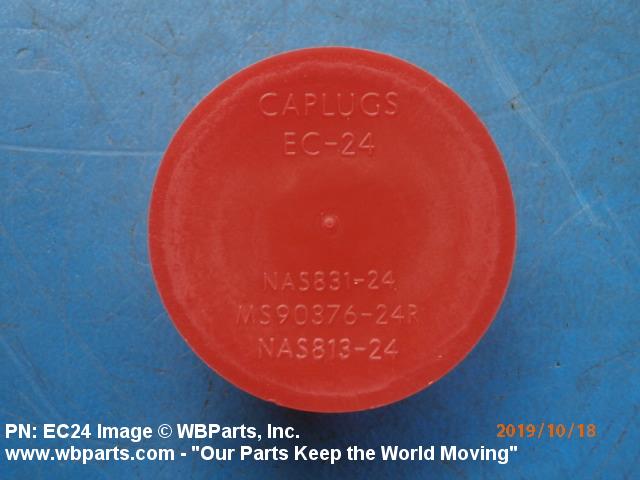

Drawings & Photos | NSN 5340-00-660-3717
Demand History | NSN 5340-00-660-3717
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-660-3717 | 2024-10-305 | 8 | US |
| 5340-00-660-3717 | 2024-02-51 | 4 | US |
| EC24 | 2021-11-321 | 20 | United States |
| EC24 | 2019-10-275 | 200 | United States |
| EC24 | 2019-10-275 | 200 | United States |
| EC24 | 2017-09-248 | 5 | CO |
| EC24 | 2017-05-142 | 50 | us |
| 510 | 2013-09-263 | 8 | US |
Cross Reference | NSN 5340-00-660-3717
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-70500-24 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 1219270-3 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 510 | 71468 | ITT CORPORATION DBA I T T CANNON |
| EC24 | 95760 | PROTECTIVE CLOSURES CO INC |
| EC24 | 99017 | CAPLUGS LLC DBA MOKON DIV CAPLUGS |
| MS25178-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS25718-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N215-EC24 | F2521 | PLASTIFRANCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5340-00-660-3717
Technical Data | NSN 5340-00-660-3717
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, L-P-390, TYPE 1, CLASS L, GRADE 1 OR PLASTIC, L-P-390, TYPE 1, CLASS L, GRADE 2 |
| DESIGN TYPE | FRICTION |

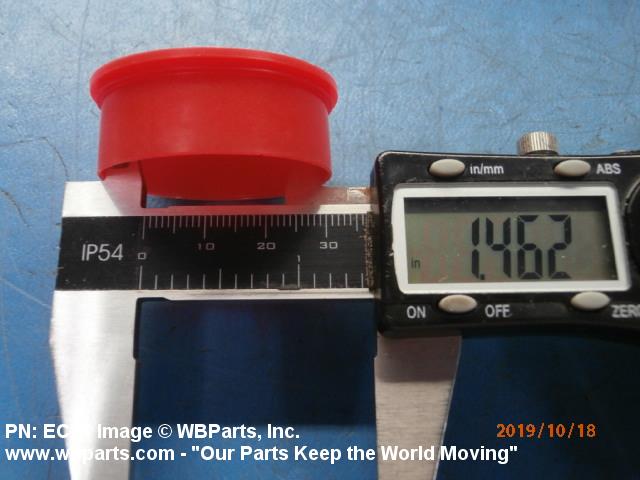

| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.463 INCHES NOMINAL |

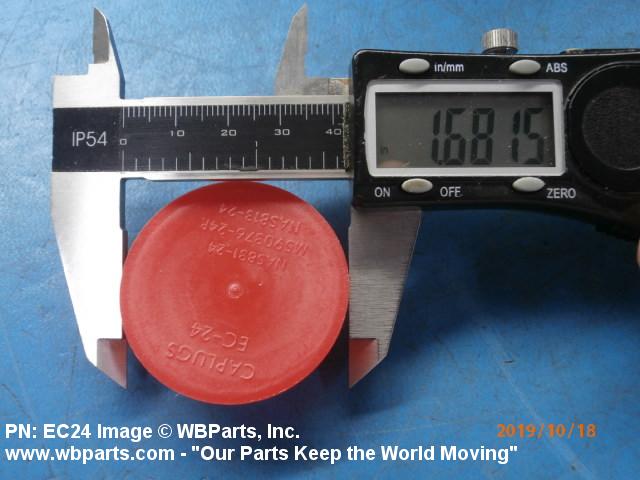

| OVERALL DIAMETER | 1.719 INCHES NOMINAL |

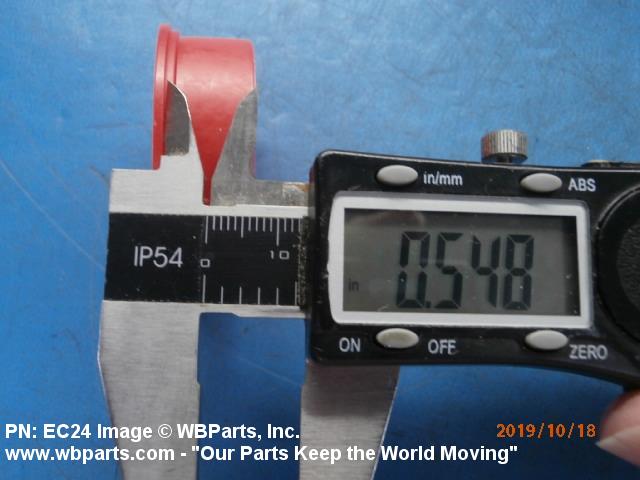

| INSIDE DIAMETER LENGTH | 0.531 INCHES NOMINAL |
| ROUND CAP OUTSIDE SURFACE CONDITION | SMOOTH |
| SPECIAL FEATURES | COLOR RED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25178-24 |
Restrictions/Controls & Freight Information | NSN 5340-00-660-3717
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-660-3717
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
